There are many ways for a local user to upload pictures into their photo album.

Users of Windows XP can upload their pictures using the Windows XP Publishing

Wizard.

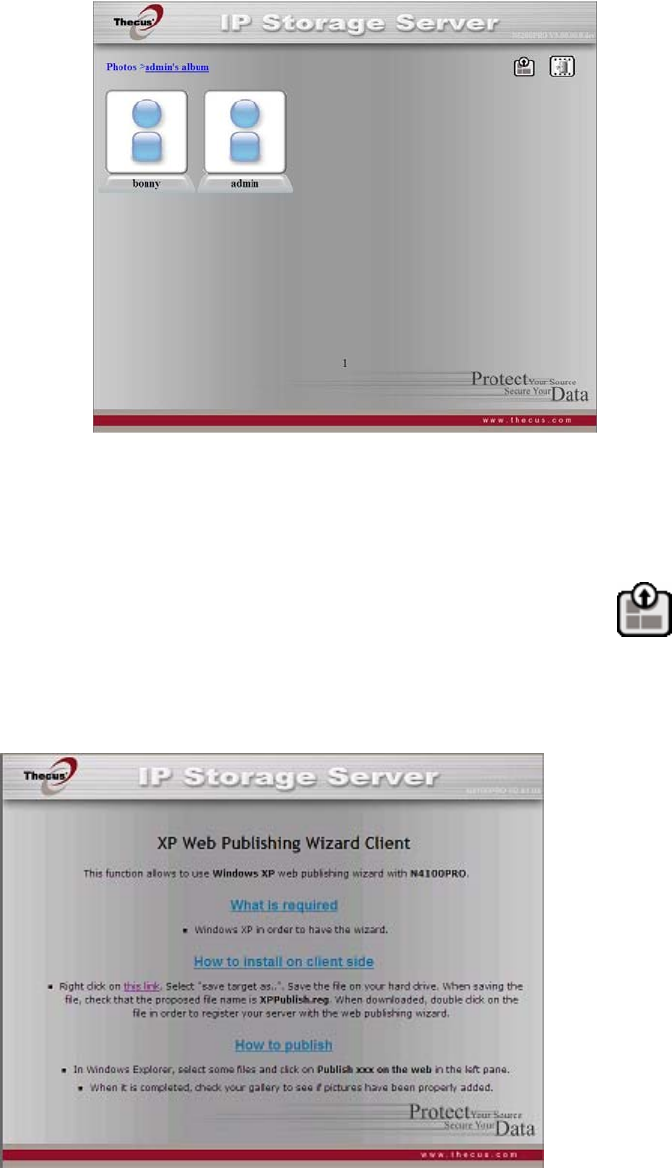

1. Click on the XP Publishing Wizard icon on top right corner.

2. The XP Web Publishing Wizard Client screen appears. Click on the link to

install the Publishing Wizard.

3. Windows XP will ask whether you want to run or save this file. Click Save to

save the register file.

102
