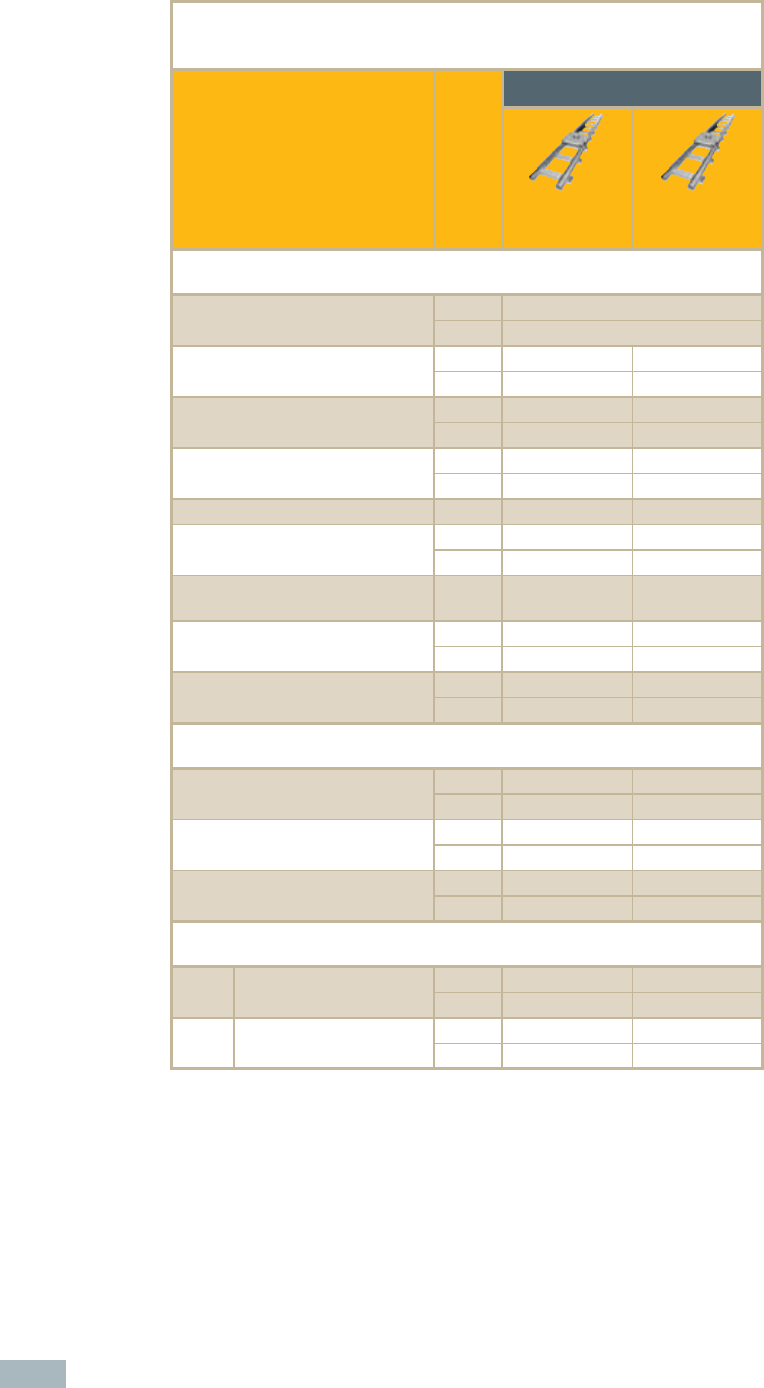

Specifi cations - AL-4700 Series Linear Floor Slides,
Medium Duty
Parameter Units
Positioner Model
AL-4710-1-X
Manual
AL-4711-1-X
Motorized
Operational
Travel
(1)
ft 2 to 16
m 0.6 to 5
Vertical Load
lbs 1,500 1,500
kg 680 680
Fore-Aft Bending Moment
ft-lbs 3,250 6,150
kg-m 450 850
Side Bending Moment
ft-lbs 3,250 6,150
kg-m 450 850
Motor Drive Power
hp - 1/8
Nominal Speed
in/sec - 5
m/sec - 125
Standard Angle Transducer Format
-
Dual Speed
Synchro
Data Take-Off Accuracy (RMS)
in - 0.01
mm - 0.3
Repeatability
in - 0.005
mm - 0.13
Physical
Weight (approx.)
lbs 8/ft 9/ft
kg 58/m 64/m
Width
in 27 27
750 750
Height
in 9.5 9.5
mm 200 200
Options
EN001
Incremental Encoder
Accuracy (RMS)
in - 0.01
mm - 0.3
EN004
Absolute Encoder
Accuracy (RMS)
in - 0.01
mm - 0.3
(1)
For other linear travel ranges consult ORBIT/FR
