> Linear Positioners
>
Linear Floor Slides – Medium Duty
AL-4700 Series
Our AL-4700 medium duty series fl oor slides offer accurate linear motion for customers
involved in antenna design and development. This series can support vertical loads up
to 1,500 lbs (680 kg). Their rugged yet simple construction ensures maximum reliability
and trouble-free operation.
Typically, the primary components include a modular aluminum structure, bearing-based carriage,
precise linear bearings, bumpers, indicator scale, and mounting supports.
➊ APPLICATIONS
• Linear Motion of Antenna Positioner
Assemblies
• General Purpose Linear Systems
➋ PRODUCT HIGHTLIGHTS
• Manual & Motorized Models
• Custom Lengths Available
• Vertical Loads Up to 1,500 lbs (680 kg)
• Precision Linear Bearings
• Rigid, Durable Mechanical
Construction
• Low Defl ection
• Manual: Includes Hand-brake
• Motorized: Includes DC Motor,
Gear Reduction, Synchro/Encoder
Assembly & Limit Switch Assembly

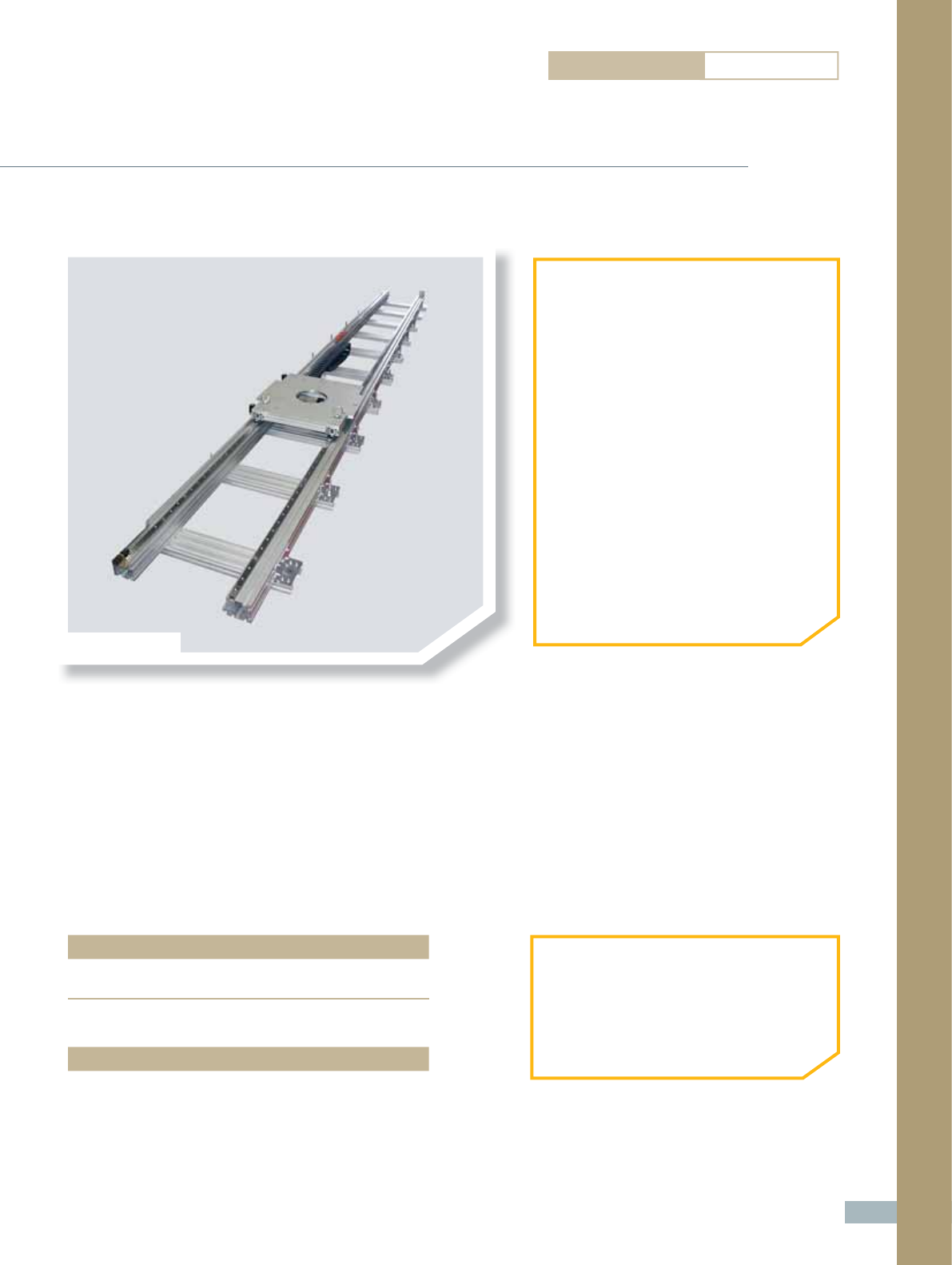

AL-4710-1 Manual
ORDERING INFORMATION
• Refer to Linear Floor Sides - Light Duty
Series Specifi cation Table
• Ordering Example: AL-4710-1-8
(Where 8 is the desired travel in ft)
supplied accessories
>
CD-ROM Documentation Set:
 User Manual (Installation, Setup, Operation)
options
 EN001 - Standard Accuracy, Rotary Incremental
 EN004 - Standard Accuracy (EnDat
®
format),
Rotary Absolute
 Optional  Standard
MEDIUM DUTYAL-4700 SERIES
