Operation Manual

10
It
a Jack UNIVERSAL PORT
b Jack IR IN (A/B) e OUT
c Jack DIGITAL IN COAXIAL e OPTICAL
d Porta USB
e Porta ETHERNET
f Jack u REMOTE CONTROL
g Porta RS232
Terminale di controllo.
h Jack HDMI IN e uscita HDMI (HDMI OUT MAIN e
HDMI OUT SUB)
i Jack MONITOR OUT V e S
j Jack COMPONENT VIDEO IN e MONITOR OUT
k Jack COMPONENT VIDEO ZONE 2 OUT
l Jack ZONE 2 OUT V
m Jack PC IN
n Jack FM ANTENNA e morsetto AM ANTENNA
o AC INLET
p Vite GND
q INPUT jack (BALANCE L/R)
r Jack 12V TRIGGER OUT (A/B/C)
s Jack video composito, S-video e audio analogico
(BD/DVD IN, VCR/DVR IN e OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN e PHONO IN)
t Jack di ingresso MULTI CH
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R e SUBWOOFER)
u Jack PRE OUT
(FRONT L/R, CENTER, SURROUND L/R,
SURR BACK L/R, FRONT HIGH/WIDE L/R,
SW1, SW2)
v Jack ZONE 2 e ZONE 3 PRE/LINE OUT
w PRE OUT jack
(FRONT L/R, CENTER, SURROUND L/R, SURR
BACK L/R, FRONT HIGH/WIDE L/R,
SUBWOOFER 1 e SUBWOOFER 2)

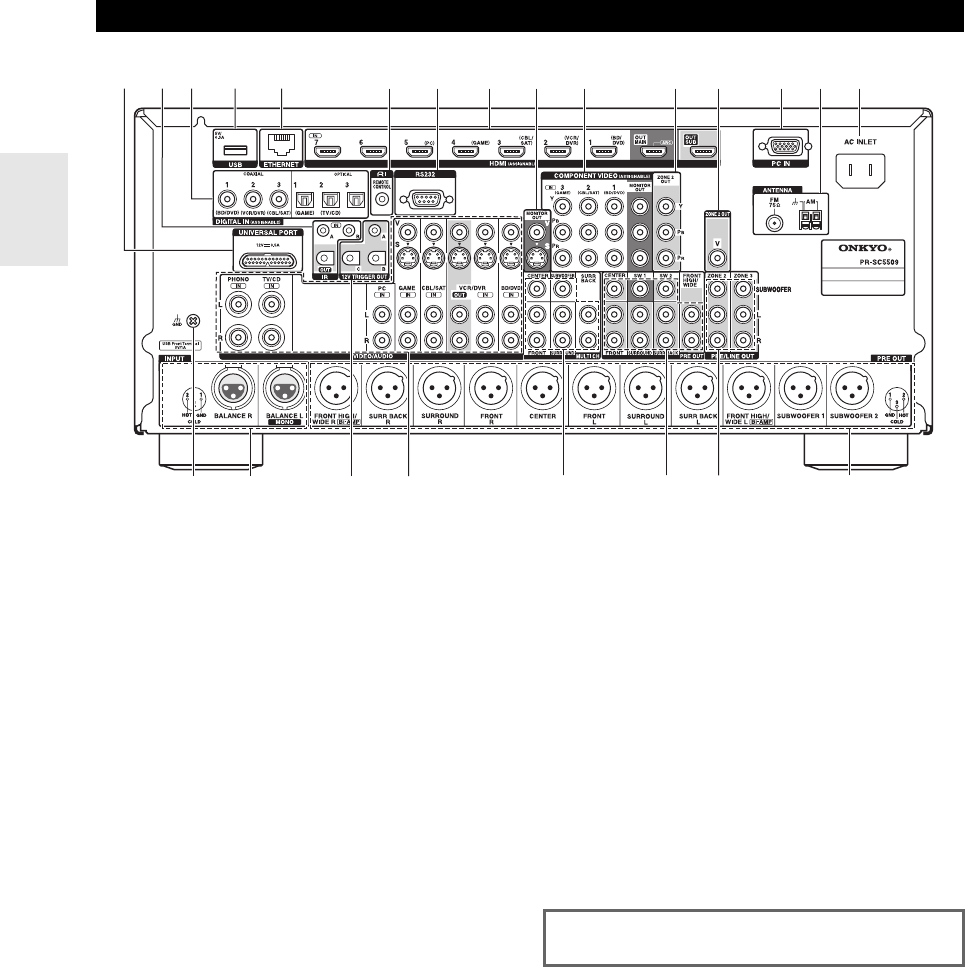

Pannello posteriore
f g h ji l k n m
o
p
s t
u
e d
q r
v w
ba c
Vedere “Collegamento del AV Controller” per la
connessione (da ➔ pagine 12 a 24).
