Advanced Setup

—Continued

When using progressive scanning on your DVD player,

you may ﬁnd that the picture and sound are out of sync.

With this setting, you can correct this by delaying the

audio signals. You can set it to 0, 20, or 40 milliseconds.

Note:

• This setting is not available when the Direct listening

mode is used with an analog input signal.

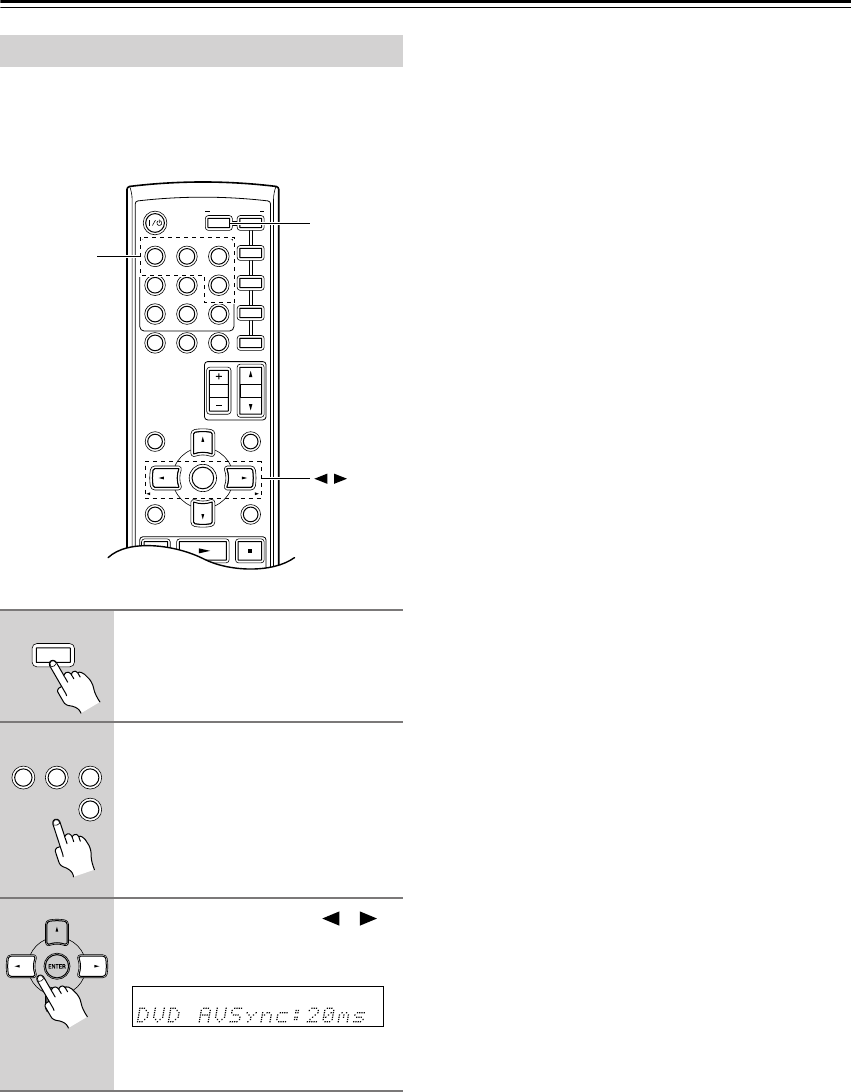

Correcting Sound and Picture Sync

Press the [RECEIVER] REMOTE

MODE button.

Press and hold, for more than 4

seconds, the input selector but-

ton for the input source that you

want to correct.

This can be the [DVD], [VIDEO 1],

[VIDEO 2], or [VIDEO 3] input

source.

Use the Left and Right [ ]/[ ]

buttons to set the delay to 0, 20,

or 40 milliseconds.

The previous display reappears if you

don’t do anything for 5 minutes.
