Connecting Your Components
—Continued

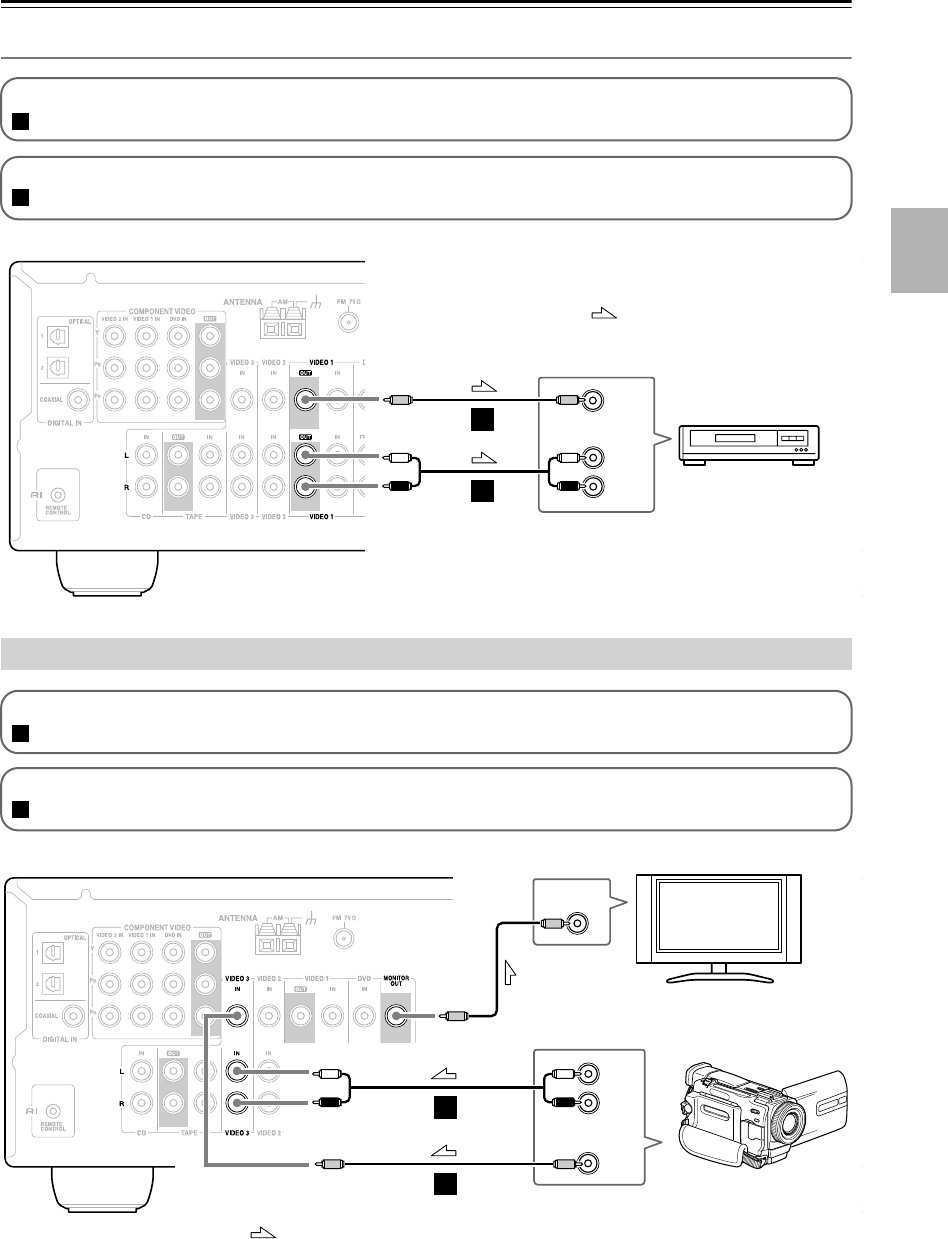

Connecting a VCR for Recording
AUDIO
IN
L
R
VIDEO
IN
A
a
Step 1: Video Connection
Connect the AV receiver’s VIDEO 1 OUT jack to your VCR’s video input jack.
Step 2: Audio Connection
Connect the AV receiver’s VIDEO 1 OUT L/R jacks to your VCR’s audio input jacks.
A
a
VCR, DVD recorder
AV receiver
: Signal Flow
Connecting a Camcorder, Games Console, or Other Device
AUDIO
OUT
L
R
VIDEO
IN
VIDEO
OUT
a
A
Step 1: Video Connection
Connect your camcorder’s video output jack to the AV receiver’s VIDEO 3 IN jack.
Step 2: Audio Connection
Connect your camcorder’s audio output jack to the AV receiver’s VIDEO 3 IN L/R jacks.
A
a
Camcorder, games
console, etc.
TV, projector,
etc.
AV receiver
: Signal Flow
