Connecting Your Components

—Continued

Connecting a VCR for Playback

Connecting a VCR

YPB

COMPONENT VIDEO OUT

R VIDEO

OUT

YPB

COMPONENT VIDEO IN

VIDEO IN

AUDIO

OUT

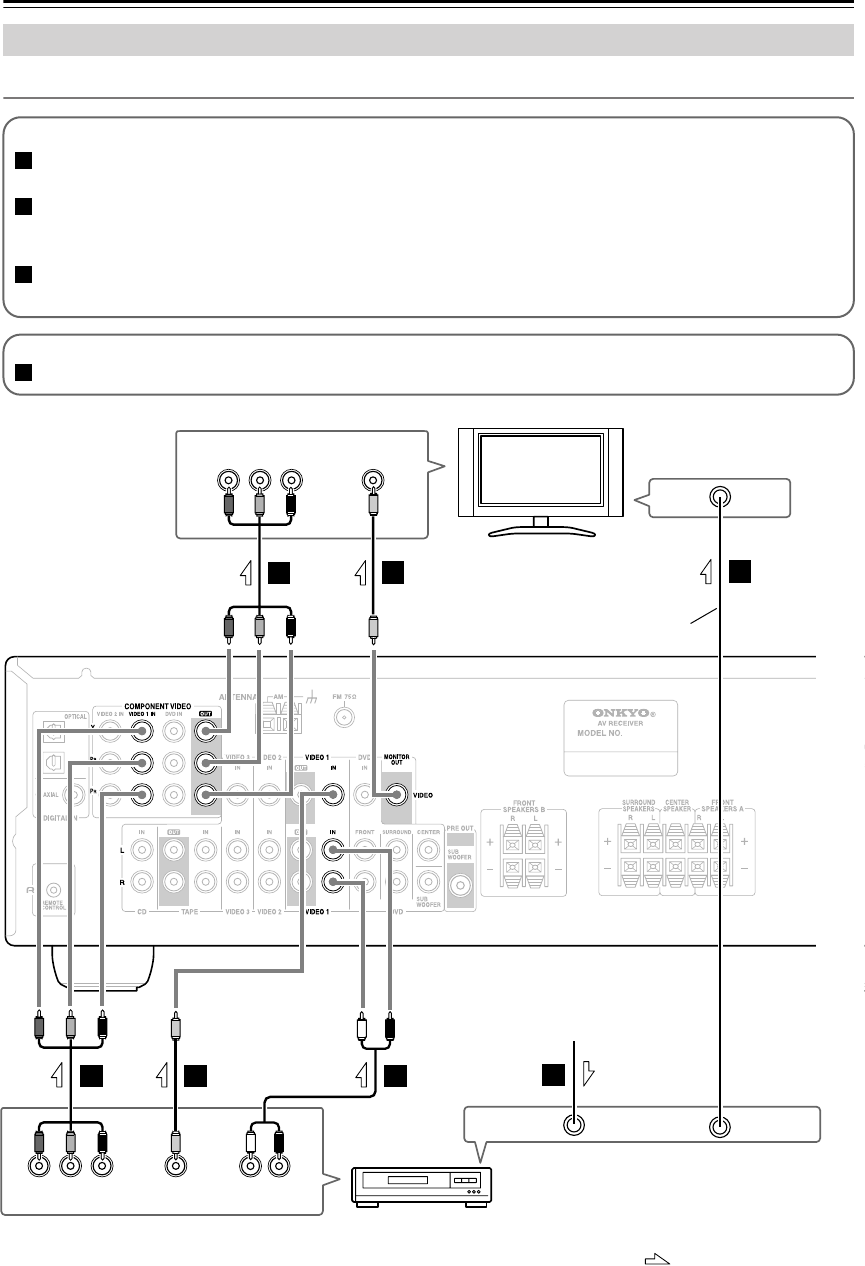

Step 1: Video Connection (VCR to AV Receiver to TV)

Connect your VCR’s video output jack to the AV receiver’s VIDEO 1 IN jack and connect the AV receiver’s

MONITOR OUT jack to your TV’s video input jack.

If your VCR and TV have component video jacks, connect the VCR’s component video output jacks to the AV

receiver’s COMPONENT VIDEO VIDEO 1 IN jacks, and connect the AV receiver’s COMPONENT VIDEO

OUT jacks to your TV’s component video in jacks. This offers better picture quality than composite video.

Connect a TV antenna output jack (e.g., RF OUT) to your VCR’s antenna input, and connect your VCR’s antenna

output jack to your TV’s antenna input jack.

Step 2: Audio Connection

Connect your VCR’s audio output jacks to the AV receiver’s VIDEO 1 IN L/R jacks.

VCR, DVD recorder

TV, projector,

etc.

Coaxial feed

Coaxial feed from TV

antenna or set-top box

AV receiver

: Signal Flow

Antenna input

(e.g., RF IN)

Antenna input

(e.g., RF IN)

Antenna output

(e.g., RF OUT)
