NC7WZ07 • Rev. 1.0.7 2
NC7WZ07 — TinyLogic
®
UHS Dual Buffer (Open-Drain Outputs)

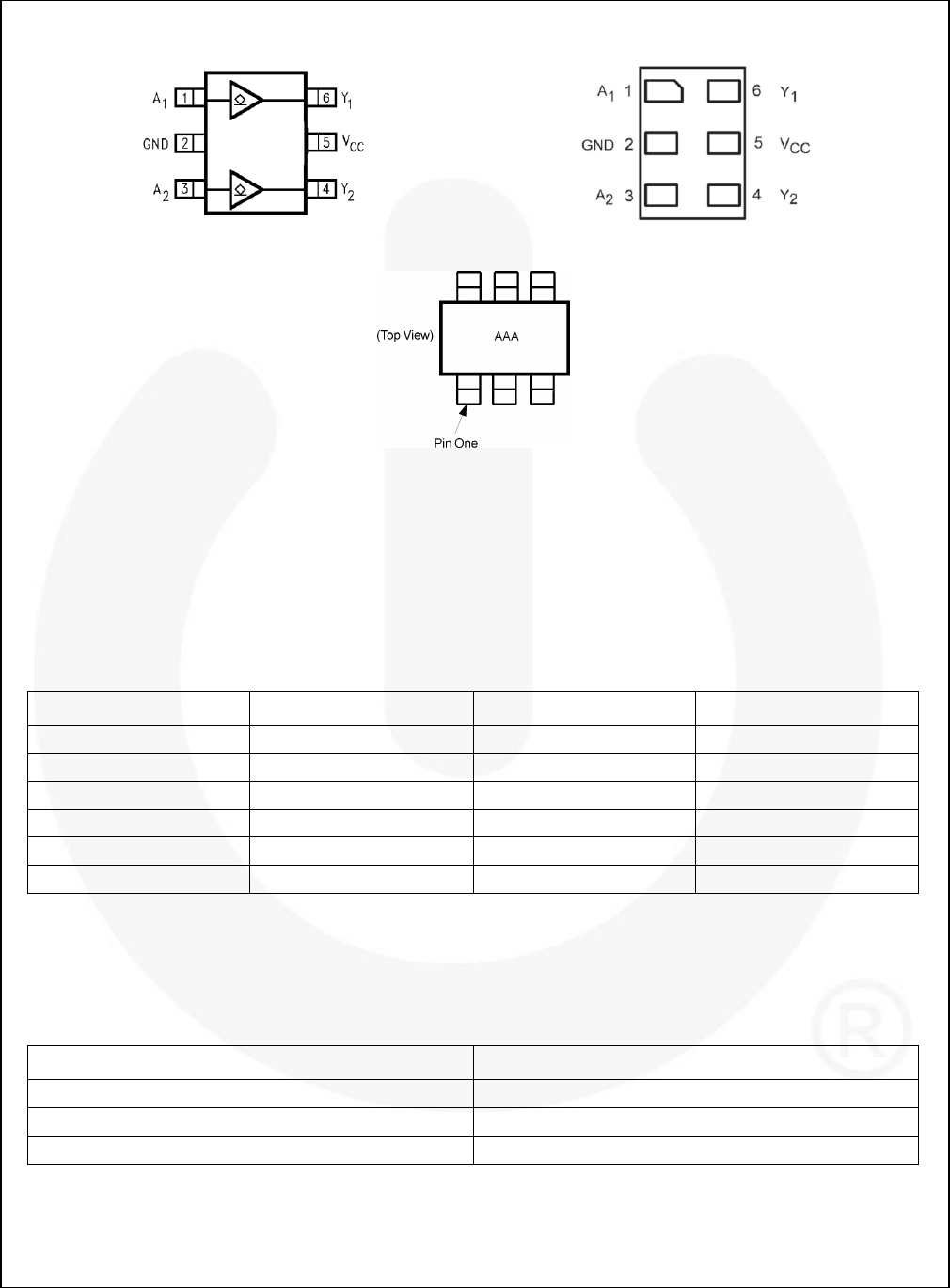

Pin Configurations
Figure 2. SC70 (Top View)
Figure 3. MicroPak™ (Top Through View)
Figure 4. Pin 1 Orientation
Notes:
1. AAA represents product code top mark (see Ordering Information).
2. Orientation of top mark determines pin one location.
3. Reading the top mark left to right, pin one is the lower left pin.
Pin Definitions
Pin # SC70
Pin # MicroPak™
Name
Description
1
1
A
1
Input
2
2
GND
Ground
3
3
A
2
Input
4
4
Y
2
Output
5
5
V
CC
Supply Voltage
6
6
Y
1
Output
Function Table
Y= A
Inputs
Output
A
Y
LOW Logic Level
LOW Logic Level
HIGH Logic Level
High Impedance Output State, Open Drain
