Data Sheet

April 2013
© 2000 Fairchild Semiconductor Corporation www.fairchildsemi.com
NC7WZ07 • Rev. 1.0.7
NC7WZ07 — TinyLogic
®
UHS Dual Buffer (Open-Drain Outputs)
NC7WZ07
TinyLogic
®
UHS Dual Buffer (Open-Drain Outputs)
Features
 Ultra-High Speed: t
PZL
2.3 ns (Typical)
 High I
OL
Output Drive: ±24 mA at 3 V V
CC
 Broad V
CC
Operating Range: 1.65 V to 5.50 V
 Power Down High Impedance Inputs/Outputs
 Over-Voltage Tolerance Inputs Facilitate 5 V to 3 V
Translation
 Proprietary Noise/EMI Reduction Circuitry
 Ultra-Small MicroPak™ Packages
Description
The NC7WZ07 is a dual buffer with open-drain outputs
from Fairchild’s Ultra-High Speed (UHS) series of
TinyLogic®. The device is fabricated with advanced
CMOS technology to achieve ultra-high speed with high
output drive, while maintaining low static power
dissipation over a broad V
CC
operating range. The
device is specified to operate over a very broad V
CC
operating range. The device is specified to operate over
the 1.65 V to 5.5 V V
CC
range. The inputs and outputs
are high impedance when V
CC
is 0 V. Inputs tolerate
voltages up to 7 V independent of V
CC
operating voltage.
Ordering Information
Part Number
Top Mark
Package
Packing Method
NC7WZ07P6X
Z07
6-Lead SC70, EIAJ SC88 1.25 mm Wide
3000 Units on Tape & Reel
NC7WZ07L6X
D3
6-Lead MicroPak™, 1.00 mm Wide
5000 Units on Tape & Reel
NC7WZ07FHX
D3
6-Lead, MicroPak2™, 1x1 mm Body, .35 mm Pitch
5000 Units on Tape & Reel

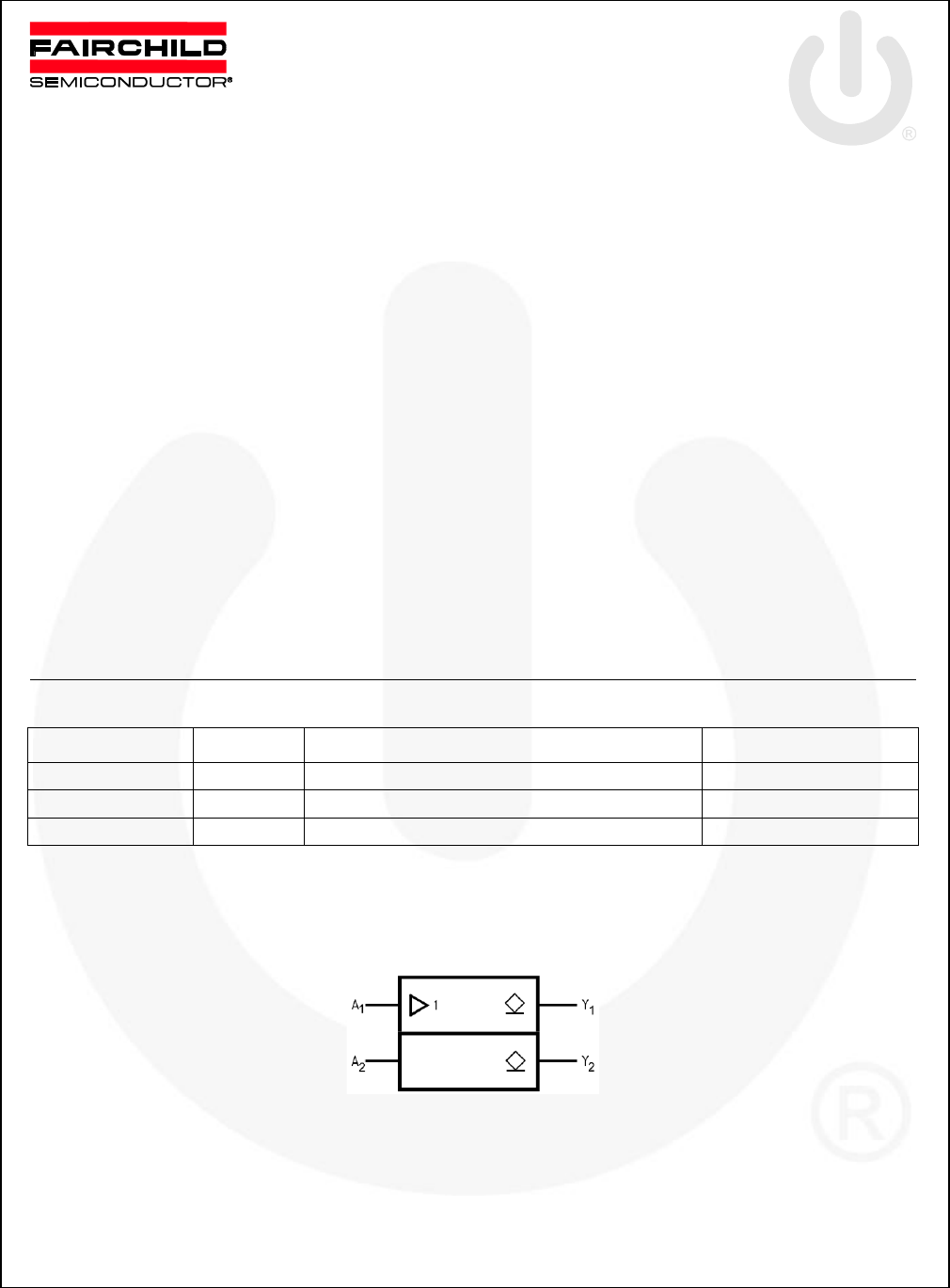

Connection Diagrams
IEEE/IEC
Figure 1. Logic Symbol
