© 2011 Fairchild Semiconductor Corporation www.fairchildsemi.com
FT3001 • Rev. 1.0.4 6
FT3001 — Reset Timer with Configurable Delay

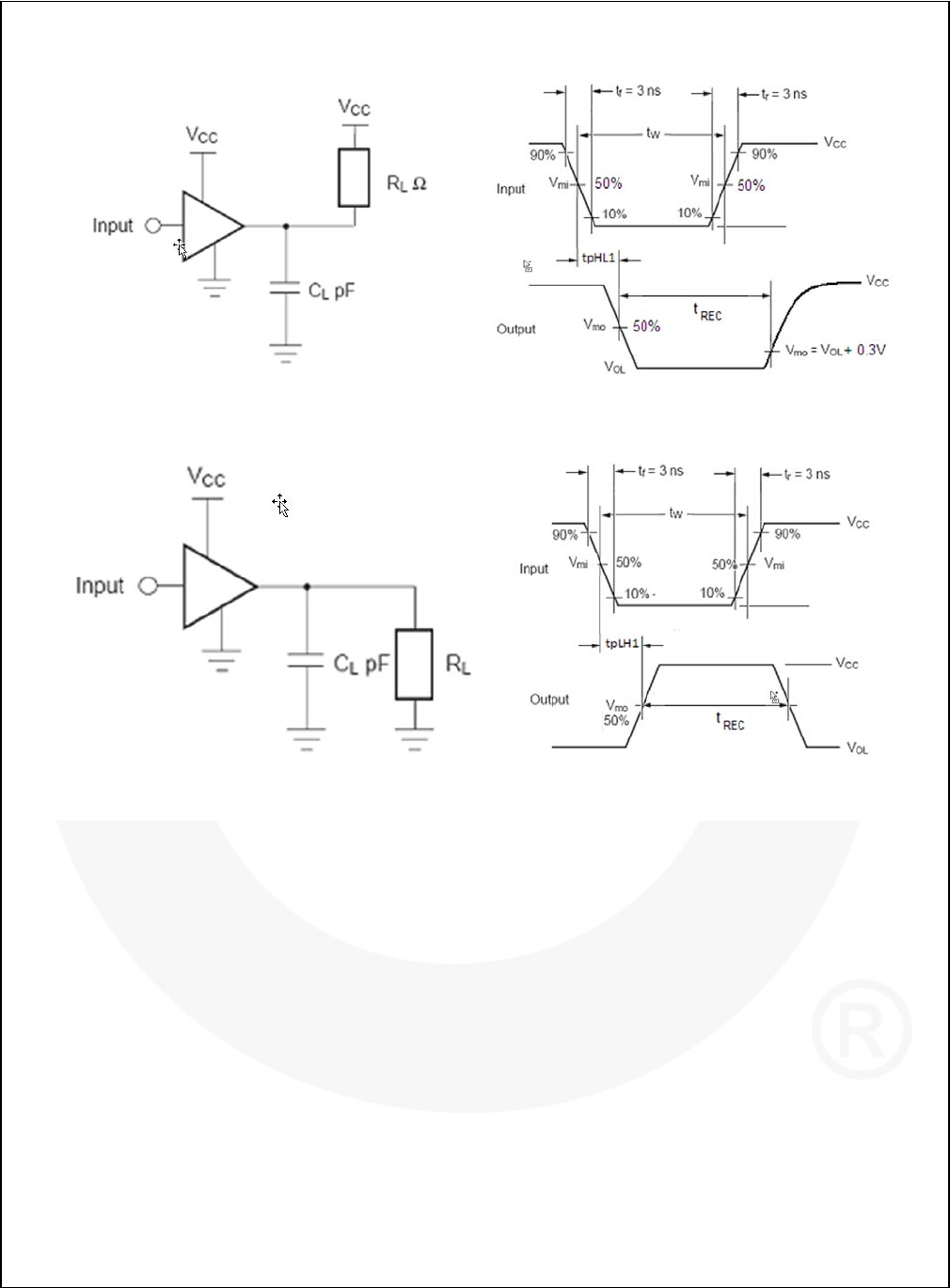

AC Test Circuits and Waveforms
Figure 4. AC Test Circuit, RST1 Output Figure 5. RST1 Output Waveform
Figure 6. AC Test Circuit, RST2 Output Figure 7. RST2 Output Waveform
