Data Sheet

FNB41060 Motion SPM® 45 Series
January 2014
©2011 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
FNB41060 Rev. C3
FNB41060
Motion SPM
®
45 Series
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 10 A 3-Phase IGBT Inverter with Integral Gate
Drivers and Protection
• Low Thermal Resistance Using Ceramic Substrate
• Low-Loss, Short-Circuit Rated IGBTs
• Built-In Bootstrap Diodes and Dedicated Vs Pins Sim-
plify PCB Layout
• Built-In NTC Thermistor for Temperature Monitoring
• Separate Open-Emitter Pins from Low-Side IGBTs for
Three-Phase Current Sensing
• Single-Grounded Power Supply
• Isolation Rating: 2000 V
rms
/ min.
Applications
• Motion Control - Home Appliance / Industrial Motor
Related Resources
• AN-9070 - Motion SPM® 45 Series Users Guide
• AN-9071 - Motion SPM® 45 Series Thermal Perfor-
mance Information
• AN-9072 - Motion SPM® 45 Series Mounting Guid-
ance
• RD-344 - Reference Design (Three Shunt Solution)
• RD-345 - Reference Design (One Shunt Solution)
General Description
FNB41060 is a Motion SPM
®
45 module providing a
fully-featured, high-performance inverter output stage
for AC Induction, BLDC, and PMSM motors. These mod-
ules integrate optimized gate drive of the built-in IGBTs
to minimize EMI and losses, while also providing multi-
ple on-module protection features including under-volt-
age lockouts, over-current shutdown, thermal
monitoring, and fault reporting. The built-in, high-speed
HVIC requires only a single supply voltage and trans-
lates the incoming logic-level gate inputs to the high-volt-
age, high-current drive signals required to properly drive
the module's robust short-circuit-rated IGBTs. Separate
negative IGBT terminals are available for each phase to
support the widest variety of control algorithms.
Package Marking and Ordering Information

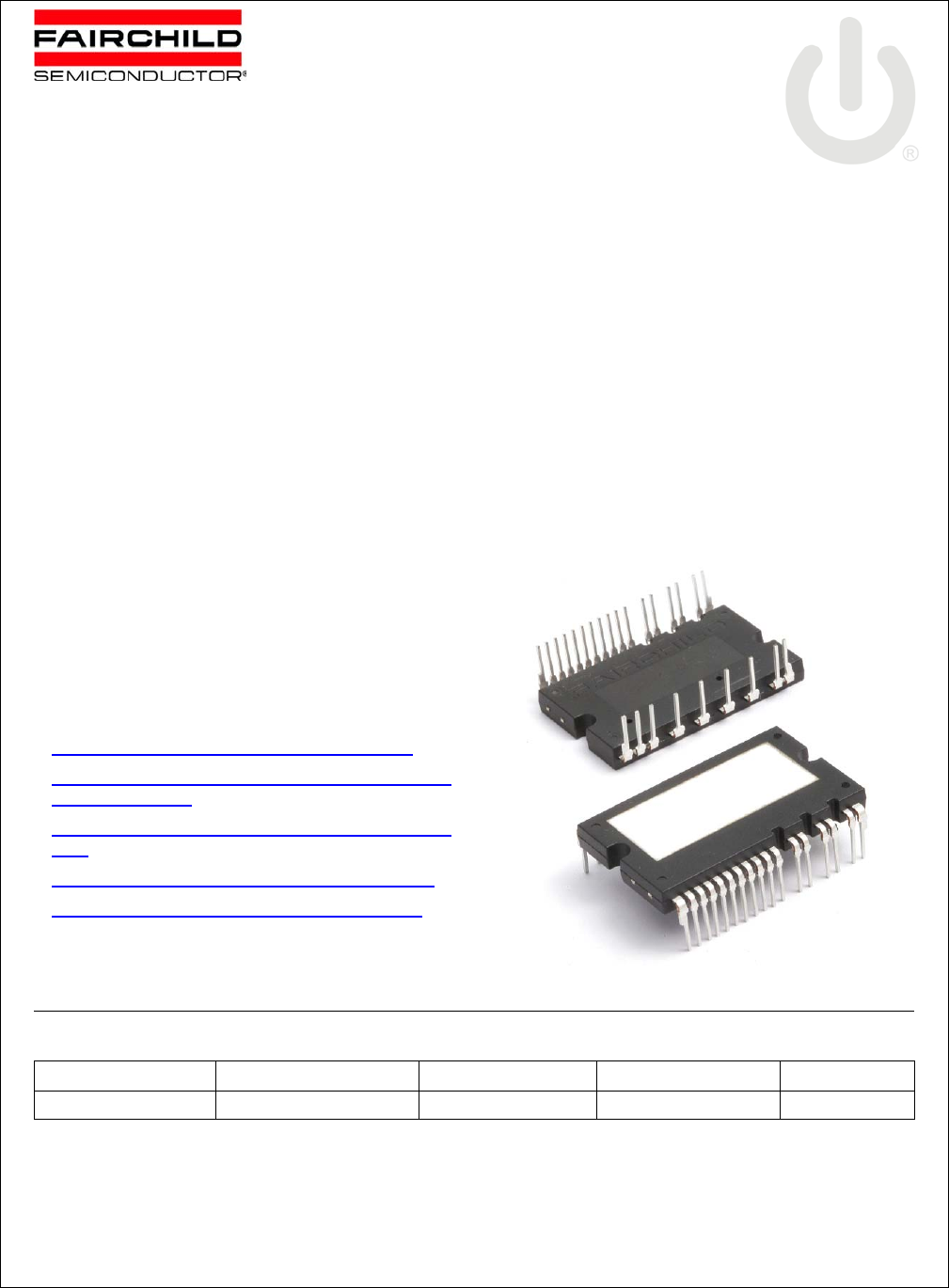

Figure 1. Package Overview
Device Device Marking Package Packing Type Quantity
FNB41060 FNB41060 SPMAA-A26 Rail 12
