Data Sheet

74VHC373 Octal D-Type Latch with 3-STATE Outputs
©1993 Fairchild Semiconductor Corporation www.fairchildsemi.com
74VHC373 Rev. 1.3 2

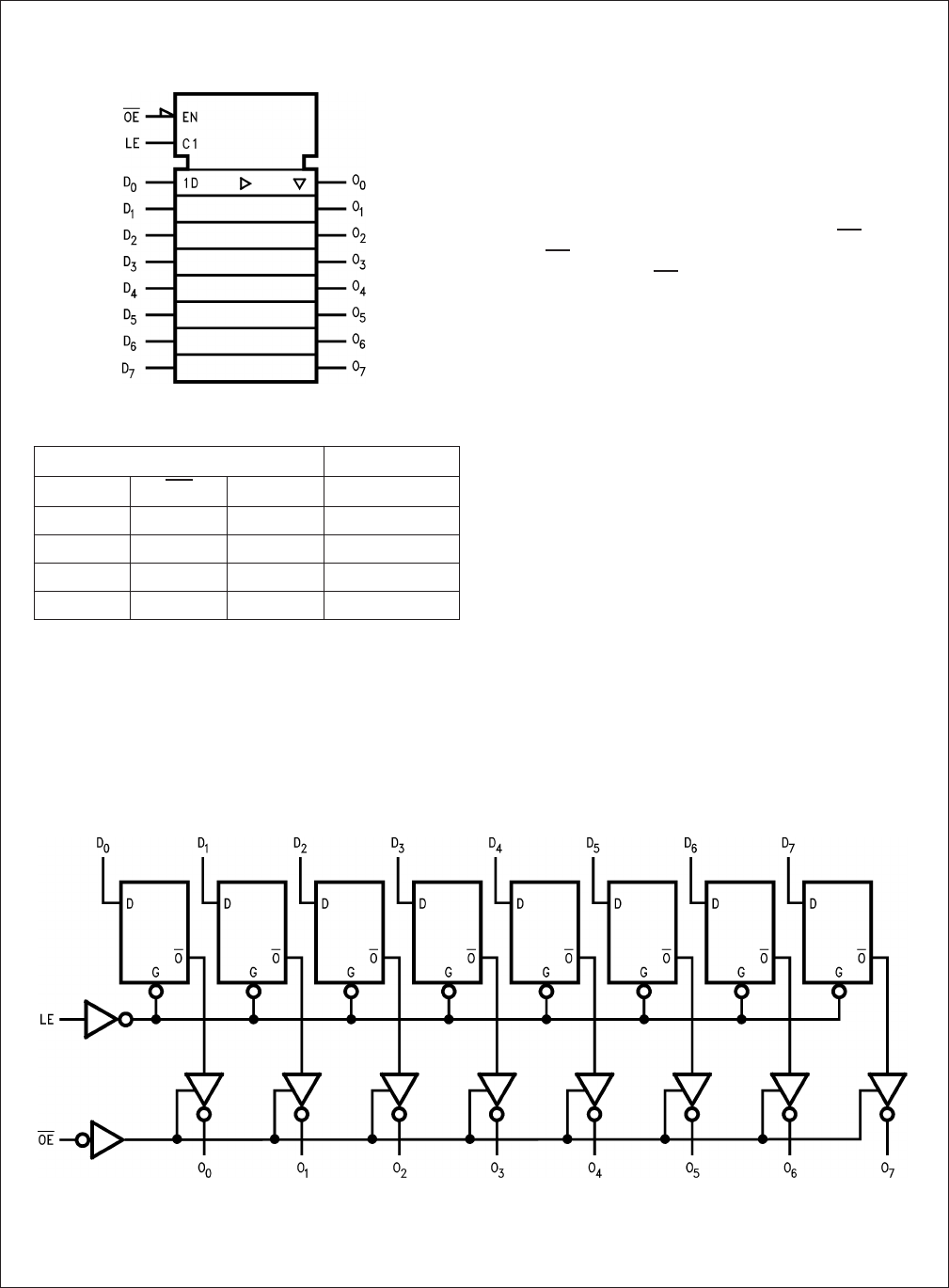

Logic Symbol
IEEE/IEC
Truth Table
H = HIGH Voltage Level
L = LOW Voltage Level
Z = High Impedance
X = Immaterial
O
0
= Previous O
0
before HIGH-to-LOW transition of
Latch Enable
Functional Description
The VHC373 contains eight D-type latches with
3-STATE standard outputs. When the Latch Enable (LE)
input is HIGH, data on the D
n
inputs enters the latches.
In this condition the latches are transparent, i.e., a latch
output will change state each time its D input changes.
When LE is LOW, the latches store the information that
was present on the D inputs a setup time preceding the
HIGH-to-LOW transition of LE. The 3-STATE standard
outputs are controlled by the Output Enable (OE
) input.
When OE
is LOW, the standard outputs are in the
2-state mode. When OE
is HIGH, the standard outputs
are in the high impedance mode but this does not inter-
fere with entering new data into the latches.
Logic Diagram
Please note that this diagram is provided only for the understanding of logic operations and should not be used to
estimate propagation delays.
Figure 1.
Inputs Outputs
LE OE D
n
O
n
XHX Z
HLL L
HLH H
LLX O
0
