Datasheet

4 Screwless Clamp Terminal Socket P2RF@@S

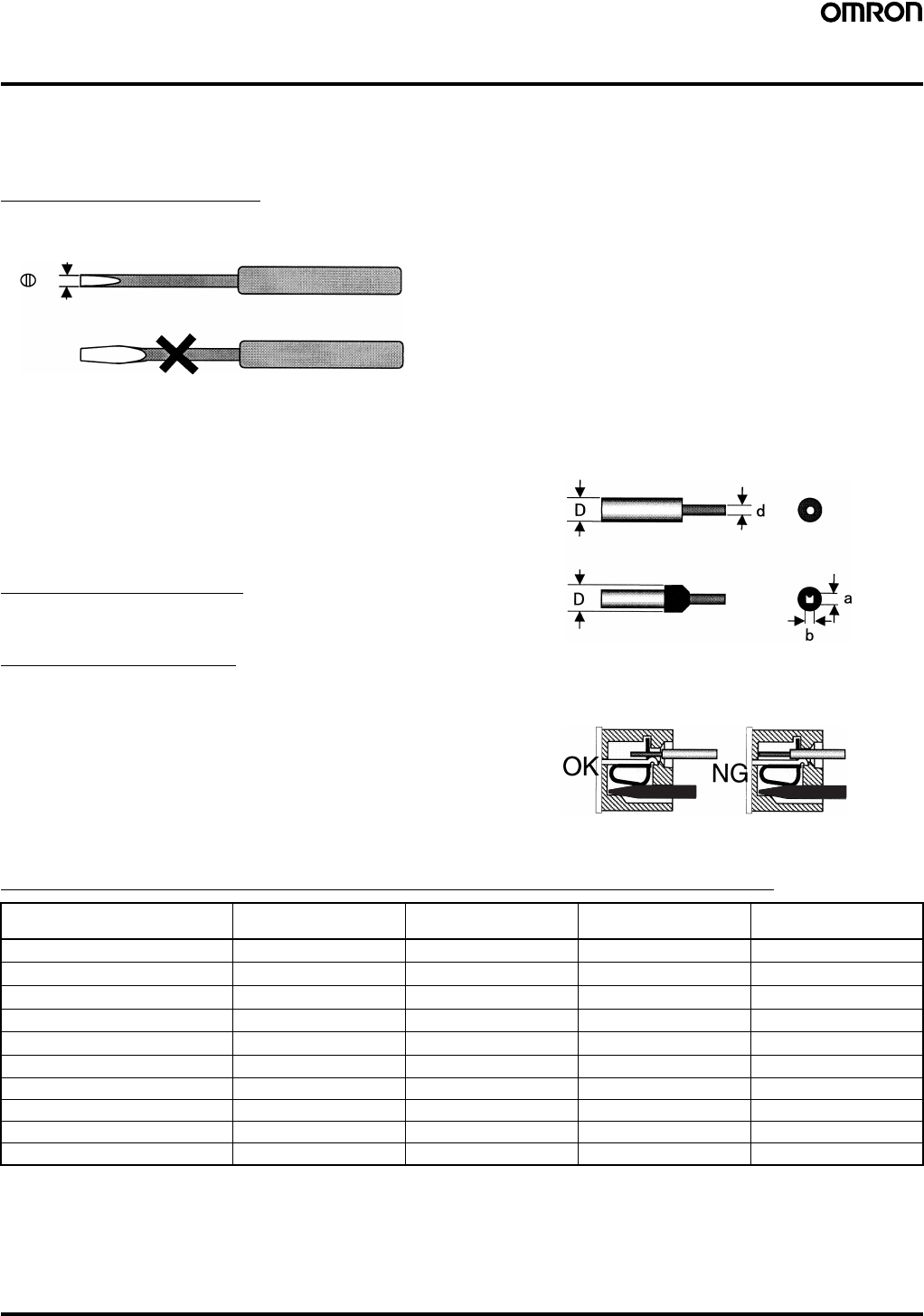

Installation
■ Tools
A flat-blade screwdriver should be used to mount the cables.
Applicable Screwdriver
● Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.)
Examples: FACOM AEF.2.5×75E (AEF. 3×75E)
VESSEL No. 9900-(-)2.5×75 (No. 9900-(-)3×100)
WAGO 210-119
WIHA 260/2.5×40 (260/3×50)
*Chamfering the tip of the driver improves insertion when used as an
exclusive tool.
■ Applicable Wires
Applicable Wire Sizes
0.2 to 1.5 mm
2
, AWG24 to AWG16
Applicable Wire Type
Solid wires, standard wires, flexible wires, or wires with ferules can
be used.
(See note 1.) < 2.2 ≤ Diameter D (mm) ≤ 3.2 (3.5: see note 2.)
Conductor diameter d (mm) or length of sides a and b (mm) ≤ 1.9
Note: 1. If the outer diameter D of the wire is less than 2.2 mm and
the exposed conductor length is less than 8mm potentially
bad connection might occur in case wire is pushed to far in-
side. Please see following drawing.
2. If the outer diameter D of the wire exceeds 3.2 mm, it might
be difficult to use double wiring.
Examples of Applicable Wires (Confirmed Using Catalog Information)
● Flat-blade, Parallel-tip
● Flat-blade, Flared-tip
2.5 dia. (3.0 mm max.)
Cannot be used.
Wires with Ferules
Type of wire Conductor type See note 1, above. Recommended wire
sizes
See note 2, above.
Equipment wire 2491X Flexible
0.5, 0.75, 1.0 mm
2
1.5 mm
2
BS6004 Solid
0.5 mm
2
Switchgear BS6231 Solid
1.0 mm
2
1.5 mm
2
Switchgear BS6231 Flexible
0.5, 0.75 mm
2
1.0 mm
2
Tri-rated control and switchgear Flexible
0.5, 0.75, 1.0, 1.5 mm
2
Conduit Standard
1.5 mm
2
UL1007 Flexible 18AWG 16AWG
UL1015 Flexible 18AWG, 16AWG
UL1061 Flexible 18AWG
UL1430 Flexible 18AWG 16AWG
