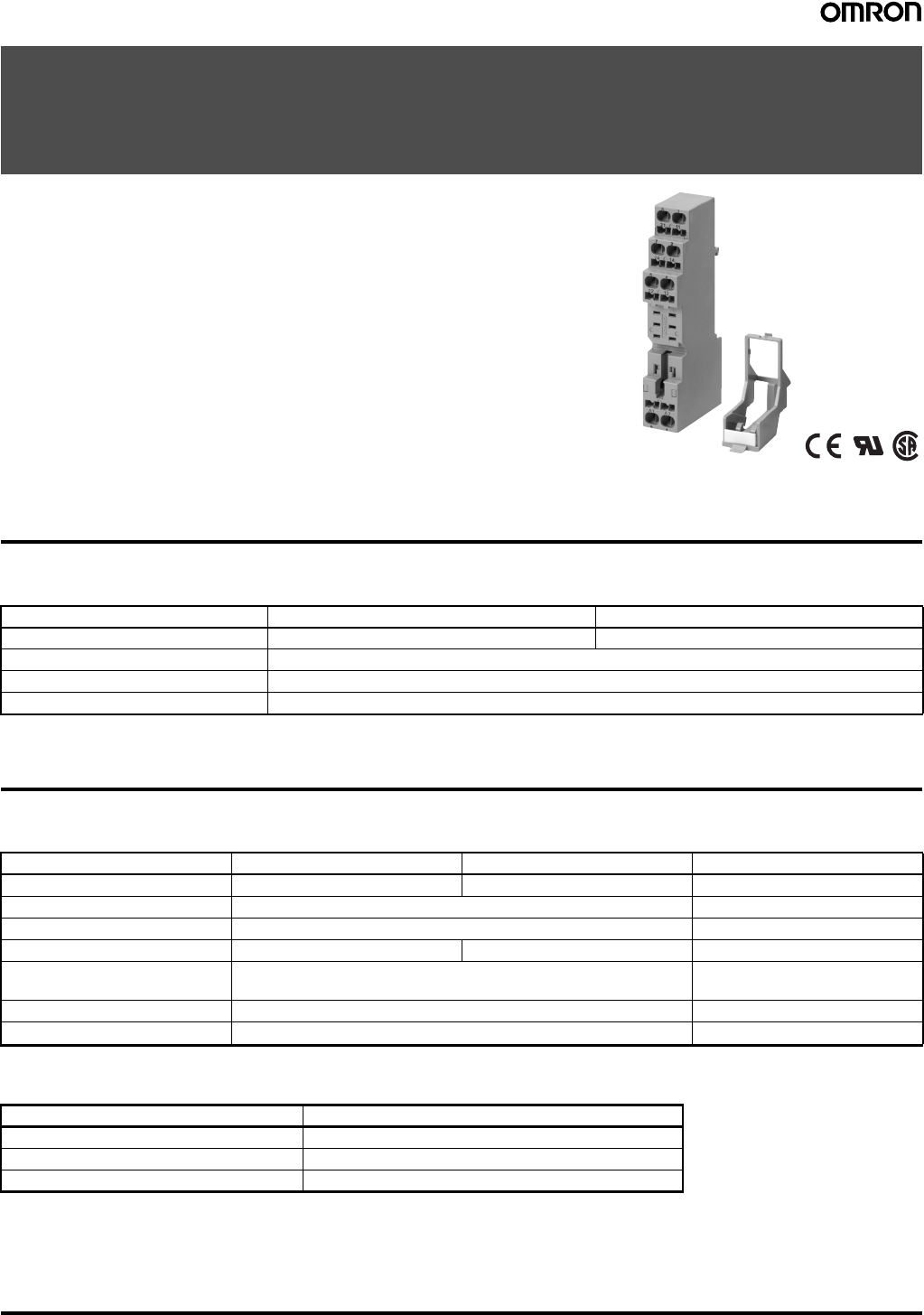

Screwless Clamp Terminal Socket P2RF@@S 1

Screwless Clamp Terminal Socket

P2RF@@S

• Screwless clamping greatly contributes to reducing wiring time.

• No over or under tightening of cable connection so better con-

tact reliability is achieved.

• Double wiring possible on all the terminals, and easy bridge and

branch connections.

• Use either solid or stranded wires from 0.2 to

1.5 mm

(AWG24 to AWG16).

• Safe terminal arrangement: Coil terminals separated from con-

tact terminals.

• Unique ejector enables easy relay replacement.

• Nameplate available

• Finger-protection

Ordering Information

■ List of Models

Specifications

■ Ratings/Characteristics

■ Approved Standards

1-pole for G2R1S 2-pole for G2R2S

Socket P2RF-05-S P2RF-08-S

Clip & Release Lever P2CM-S

Nameplate R99-11

Socket Bridge P2RM-SR, P2RM-SB

Item P2RF05S P2RF08S Remarks

Relay G2R-1-S Series G2R-2-S Series ---

Dimensions (W×H×D) 18×92×38.2 max. ---

Rated voltage 250 VAC ---

Rated carry current 10 A at 70°C 5 A at 70°C VDE0627

Applicable wires

0.2 to 1.5 mm

(AWG24 to AWG16)

Solid wire, Standard wire

---

Number of wire connections 2 wires per terminal (1 wire per hole) ---

Clamping force

10 N min. (0.2 mm

), 40 N min. (1.5 mm

)

EN60999

Standard File No. (status)

VDE0627 (IEC664, EN60999) 40002313UG

UL508 (UL1059) E87929

CSA C22.2 No. 14 (CSA C22.2 No. 158) LR31928 (1281408)

Summary of content (6 pages)

PAGE 1
Screwless Clamp Terminal Socket P2RF@@S • Screwless clamping greatly contributes to reducing wiring time. • No over or under tightening of cable connection so better contact reliability is achieved. • Double wiring possible on all the terminals, and easy bridge and branch connections. • Use either solid or stranded wires from 0.2 to 1.5 mm2 (AWG24 to AWG16). • Safe terminal arrangement: Coil terminals separated from contact terminals. • Unique ejector enables easy relay replacement.
PAGE 2
Dimensions 6 TYP 16.8 TYP P2RF-05-S 38.2 max. 36.5 max. 32.6 27.6 22.6 92.0 max. 35.4 24.5 Standard model (5.3) 28.5 18.0 max. 61.3 TYP 32.6 Option (with ejector and label attached) Option (with ejector and label attached) 6 TYP 16.8 TYP P2RF-08-S 38.2 max. 36.5 max. 32.6 27.6 22.6 (3.4) 35.4 92.0 max. 24.5 Standard model 28.6 18.0 max. (5.3) 32.6 Option (with ejector and label attached) 2 Screwless Clamp Terminal Socket P2RF@@S 60.
PAGE 3
Terminal Arrangement P2RF-05-S P2RF-08-S 11 Common contacts 21 11 14 Make contacts 24 14 12 Break contacts 22 12 A1 A2 Coil A1 A2 Mounting Height (With Lever) P2RF-05-S P2RF-08-S 61.6 TYP 60.6 TYP 55.7 56.9 28.6 28.6 (5.30) (5.30) ■ Accessories (Option) Socket Bridge for P2RF-S Insulating coating Clip and Release Lever for P2RF-S P2CM-S 9 16.8 TYP 14 L Diameter conductor 1.2 mm 40.1 TYP 6 TYP List of models Model number Length L (mm) P2RM-SR 14.3 P2RM-SB (32.
PAGE 4
Installation ■ Tools A flat-blade screwdriver should be used to mount the cables. Applicable Screwdriver ● Flat-blade, Parallel-tip, 2.5 mm diameter (3.0 mm max.) ● Flat-blade, Parallel-tip 2.5 dia. (3.0 mm max.) ● Flat-blade, Flared-tip Cannot be used. Examples: FACOM AEF.2.5×75E VESSEL No. 9900-(-)2.5×75 WAGO 210-119 WIHA 260/2.5×40 (AEF. 3×75E) (No. 9900-(-)3×100) (260/3×50) *Chamfering the tip of the driver improves insertion when used as an exclusive tool.
PAGE 5
■ Wiring Wire connection hole Use wires of the applicable sizes specified above. The length of the exposed conductor should be 8 to 9 mm. Release hole Insert Screwdriver 8.5 ±0.5 mm Fig. 3 Section A-A of Fig. 2 Fig. 1 Exposed Conductor Length Use the following wiring procedure. 1. Insert the specified screwdriver into the release hole located beside the wire connection hole where the wire is to be inserted. A 2. Insert the exposed conductor into the wire connection hole.
PAGE 6
Precautions Precautions for Connection General Precautions • Do not move the screwdriver up, down, or from side to side while it is inserted in the hole. Doing so may cause damage to internal components (e.g., deformation of the clamp spring or cracks in the housing) or cause deterioration of insulation. • Do not insert the screwdriver at an angle. Doing so may break the side of socket and result in a sort-circuit. • Use the clip to prevent relays floating or falling out of the socket.
