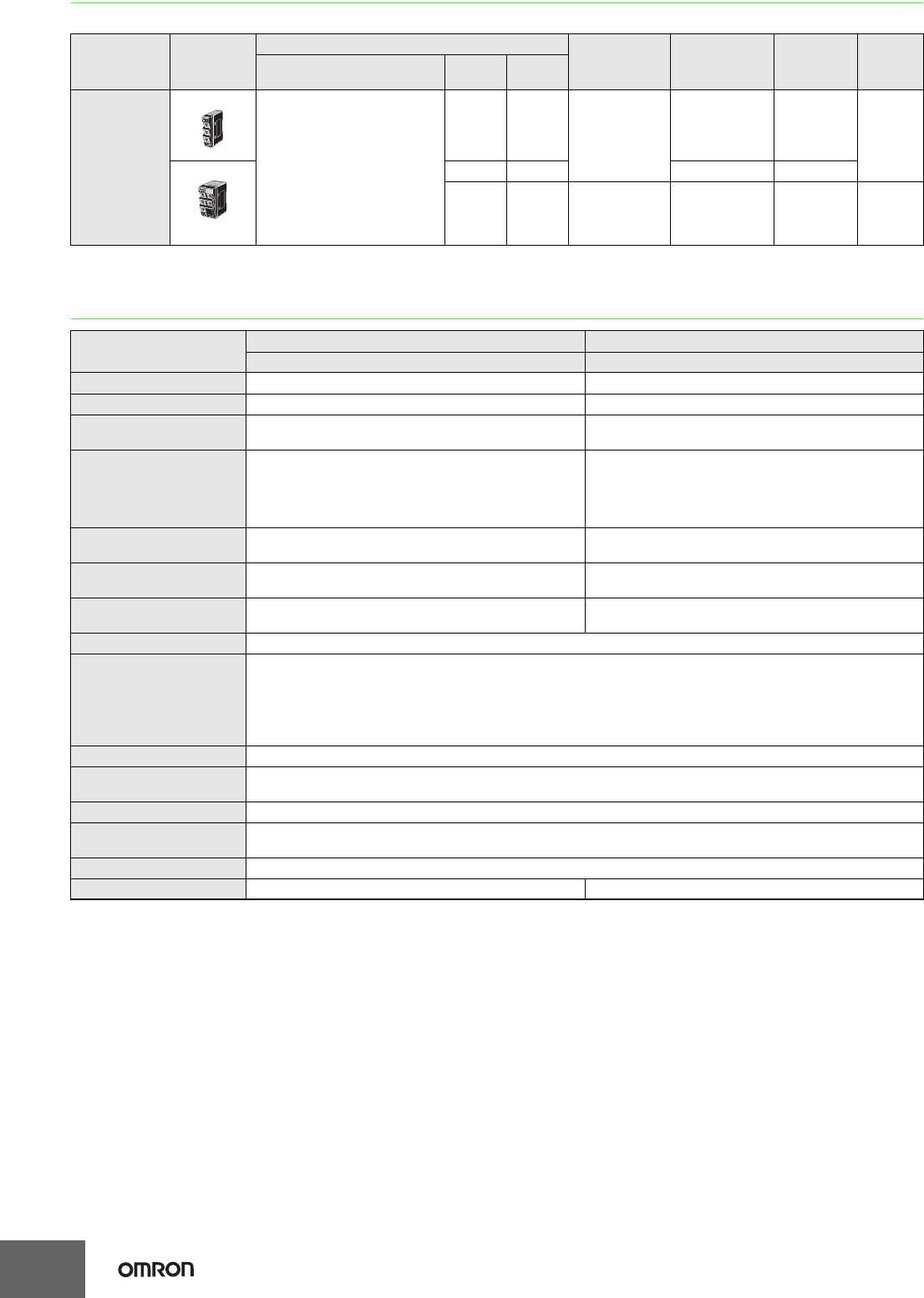

■ Industrial Switching Hubs
General Specifications
* The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC power supply.
• A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control circuitry for the AC power supply. The thermistor will
not be sufficiently cooled if the ambient temperature is high or if a hot start is performed when the power supply has been OFF for only a short time. In those cases
the inrush current values may be higher (as much as two times higher) than those shown above. Always allow for this when selecting fuses and breakers for
external circuits.
• A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The capacitor will not be charged if a hot start is
performed when the power supply has been OFF for only a short time, so in those cases the inrush current values may be higher (as much as two times higher)
than those shown above.
Product name Appearance
Specifications
Accesories
Current
consumption (A)
Model Standards
Functions
No. of
ports
Failure
detection
Industrial
Switching Hubs
Quality of Service (QoS):
EtherNet/IP control data priority
Failure detection:
Broadcast storm and LSI error
detection 10/100BASE-TX,
Auto-Negotiation
3No
• Power supply
connector
0.22 W4S1-03B
UC, CE
5No 0.22 W4S1-05B
5Yes
• Power supply
connector
• Connector for
informing error
0.22 W4S1-05C CE
Type AC power supply models DC power supply models
Item Model CP1L-@@@-A CP1L-@@@-D
Power supply 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage range 85 to 264 VAC 20.4 to 26.4 VDC
Power consumption
50 VA max. (CP1L-M60/-M40/-M30@@-A)
30 VA max. (CP1L-L20/-L14/-L10@@-A)
20 W max. (CP1L-EM40/-EM30/-M60/-M40/-M30@@-D)
13 W max. (CP1L-EL20/-L20/-L14/-L10@@-D)
Inrush current *
100 to 120 VAC inputs:
20 A max. (for cold start at room temperature)
8 ms max.
200 to 240 VAC inputs:
40 A max. (for cold start at room temperature), 8 ms max.
30 A max. (for cold start at room temperature)
20 ms max.
External power supply
300 mA at 24 VDC (CP1L-M60/-M40/-M30@@-A)
200 mA at 24 VDC (CP1L-L20/-L14/-L10@@-A)
None
Insulation resistance
20 MΩ min. (at 500 VDC) between the external AC terminals
and GR terminals
No insulation between primary and secondary for DC power
supply
Dielectric strength
2,300 VAC at 50/60 Hz for 1 min between the external AC and
GR terminals, leakage current: 5 mA max.
No insulation between primary and secondary for DC power
supply
Noise immunity Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance
CP1L-L/M:
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s
2
in X, Y, and Z directions for
80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
CP1L-EL/EM:
5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s
2
in X, Y, and Z directions for 100 minutes each (time coefficient
of 10 minutes × coefficient factor of 10 = total time of 100 minutes)
Shock resistance Conforms to JIS C60068-2-27. 147 m/s
2
three times each in X, Y, and Z directions
Ambient operating tempera-
ture
0 to 55°C
Ambient humidity 10% to 90% (with no condensation)
Ambient operating environ-
ment
No corrosive gas
Ambient storage temperature −20 to 75°C (Excluding battery.)
Power holding time 10 ms min. 2 ms min.
