Datasheet

CP1L
5
■ Expansion Units
CP1L (L Type) CPU Units with 10 points do not support Expansion Units.
■ I/O Connecting Cable
Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W/CPM1A Expansion Units.

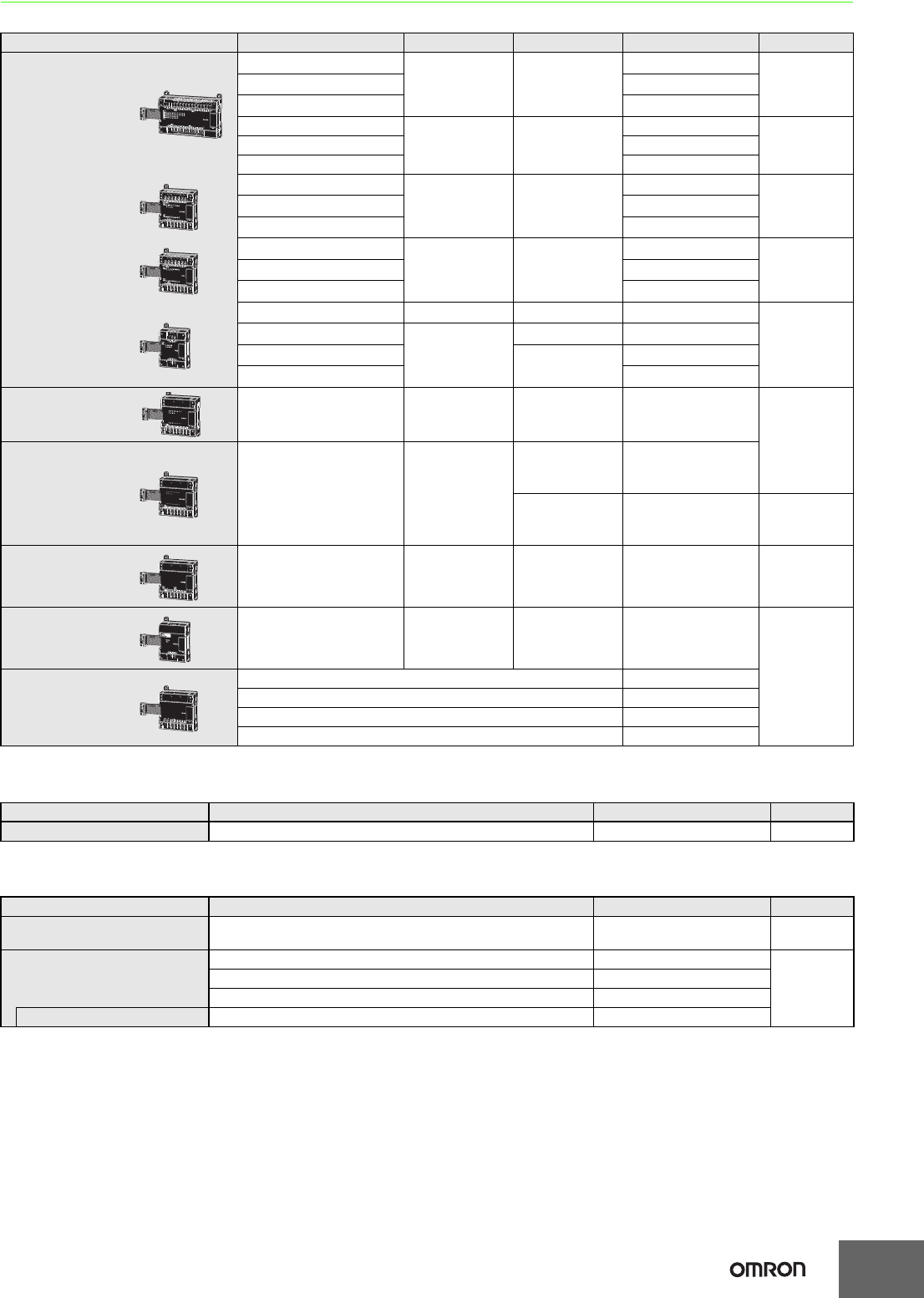

■ Optional Products, Maintenance Products and DIN Track Accessories
Name Output method Inputs Outputs Model Standards
Expansion I/O Units
Relay
24 16
CP1W-40EDR
N, L, CETransistor (sinking) CP1W-40EDT
Transistor (sourcing) CP1W-40EDT1
Relay
--- 32
CP1W-32ER
N, L, CETransistor (sinking) CP1W-32ET
Transistor (sourcing) CP1W-32ET1
Relay
12 8
CP1W-20EDR1
U, C, N, L, CETransistor (sinking) CP1W-20EDT
Transistor (sourcing) CP1W-20EDT1
Relay
--- 16
CP1W-16ER
N, L, CETransistor (sinking) CP1W-16ET
Transistor (sourcing) CP1W-16ET1
--- 8 --- CP1W-8ED
U, C, N, L, CE
Relay
---
8 CP1W-8ER
Transistor (sinking)
8
CP1W-8ET
Transistor (sourcing) CP1W-8ET1
Analog Input Unit Analog (resolution: 1/6000) 4 --- CP1W-AD041
UC1, N, L, CE
Analog Output Unit Analog (resolution: 1/6000) ---
4 CP1W-DA041
2 CP1W-DA021 UC1, CE
Analog I/O Unit Analog (resolution: 1/6000) 2 1 CP1W-MAD11 U, C, N, L, CE
CompoBus/S I/O Link
Unit
---
8
(I/O link input bits)
8
(I/O link input bits)
CP1W-SRT21
U, C, N, L, CE
Temperature Sensor
Unit
2 thermocouple inputs CP1W-TS001
4 thermocouple inputs CP1W-TS002
2 platinum resistance thermometer inputs CP1W-TS101
4 platinum resistance thermometer inputs CP1W-TS102
Name Specifications Model Standards
I/O Connecting Cable 80 cm (for CP1W/CPM1A Expansion Units) CP1W-CN811 UC1, N, L, CE
Name Specifications Model Standards
Battery Set
For CPU Units
(Use batteries within two years of manufacture.)
CJ1W-BAT01 CE
DIN Track
Length: 0.5 m; Height: 7.3 mm PFP-50N
---
Length: 1 m; Height: 7.3 mm PFP-100N
Length: 1 m; Height: 16 mm PFP-100N2
End Plate A stopper to secure the Units on the DIN Track. PFP-M
