Datasheet

CP1L
26

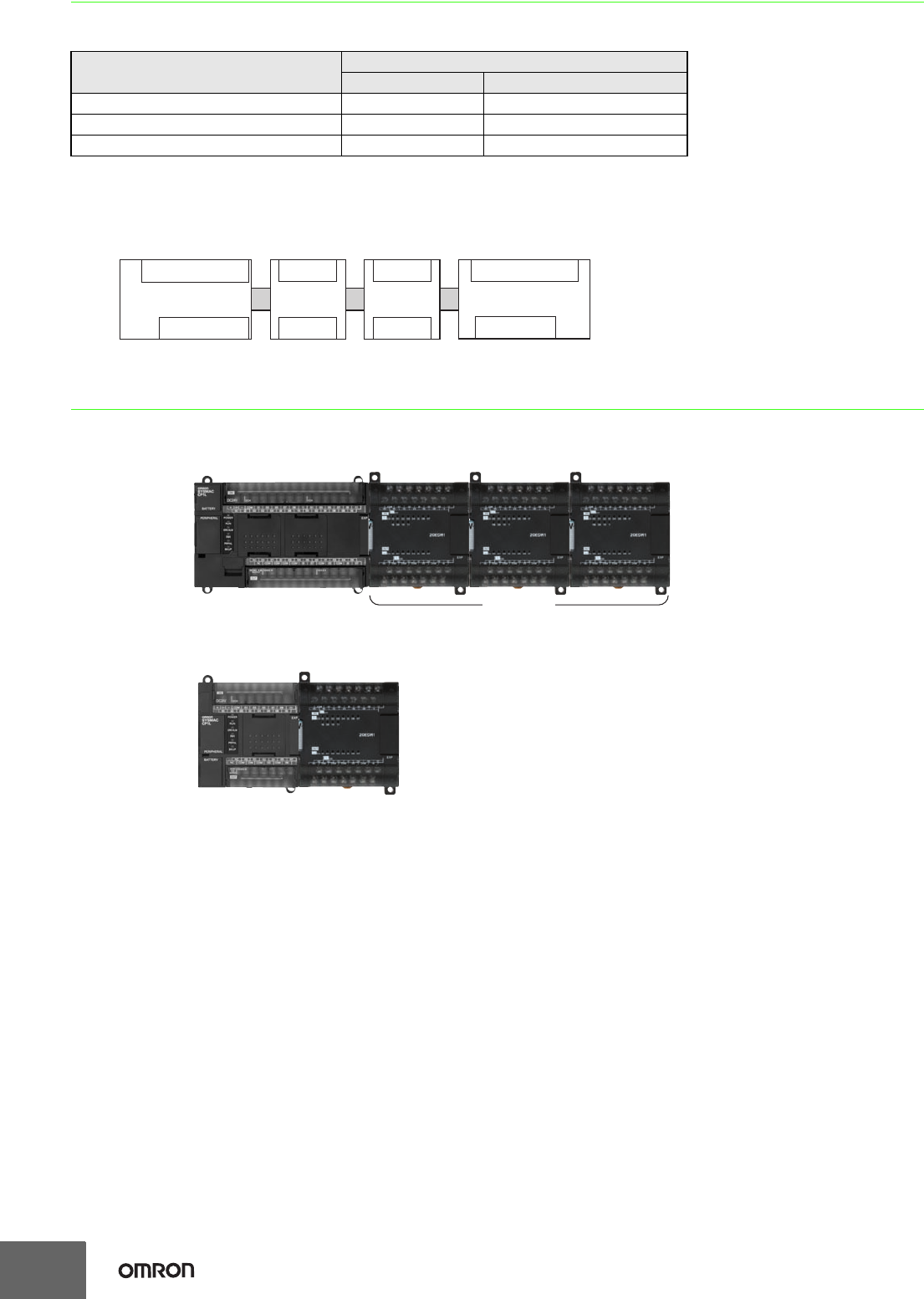

I/O Bits and I/O Allocations
With CP1L CPU Units, the beginning input and output words (CIO 0 and CIO 100) are allocated by the CPU Unit one or two words at a time. I/O
bits are allocated in word units in order of connection to Expansion Units and Expansion I/O Units connected to a CPU Unit.
● Example: I/O Bit Allocations When Expansion Units Are Connected
CPU Unit with 40 I/O Points + Temperature Sensor Unit + Analog Output Unit + Expansion I/O Unit with 40 I/O Points
The Number of the Maximum Connect of Expansion Unit
■ Maximum Number of CP1W/CPM1A Expansion Unit and Expansion I/O Units
● CP1L (EM, M) CPU Units
● CP1L (EL) CPU Units or CP1L (L) CPU Units with 20 or 14 Points
CPU Unit
Allocated words
Inputs Outputs
CP1L CPU Unit with 10, 14, or 20 I/O points CIO 0 CIO 100
CP1L CPU Unit with 30 or 40 I/O points CIO 0 and CIO 1 CIO 100 and CIO 101
CP1L CPU Unit with 60 I/O points CIO 0, CIO 1, and CIO 2 CIO 100, CIO 101, and CIO102
CPU Unit with 40 I/O Points
CP1L-M40D@-@
1st Unit
Temperature Sensor Unit
CP1W-TS002
2nd Unit
Analog Output Unit
CP1W-DA041
3rd Unit
Expansion I/O Unit with 40 I/O Points
CP1W-40ED
CIO 0.00 to CIO 0.11
CIO 1.00 to CIO 1.11
CIO 6.00 to CIO 6.11
CIO 7.00 to CIO 7.11
CIO 100.00 to CIO 100.07
CIO 101.00 to CIO 101.07
CIO 106.00 to CIO 106.07
CIO 107.00 to CIO 107.07
CIO 2 to 5
None
None
CIO 102
to CIO 105
24 inputs
16 outputs
24 inputs
16 outputs
Inputs
Outputs
3 max.
1 max.
Note: CP1L (L Type) CPU Units with 10 points do not support Expansion Units.
