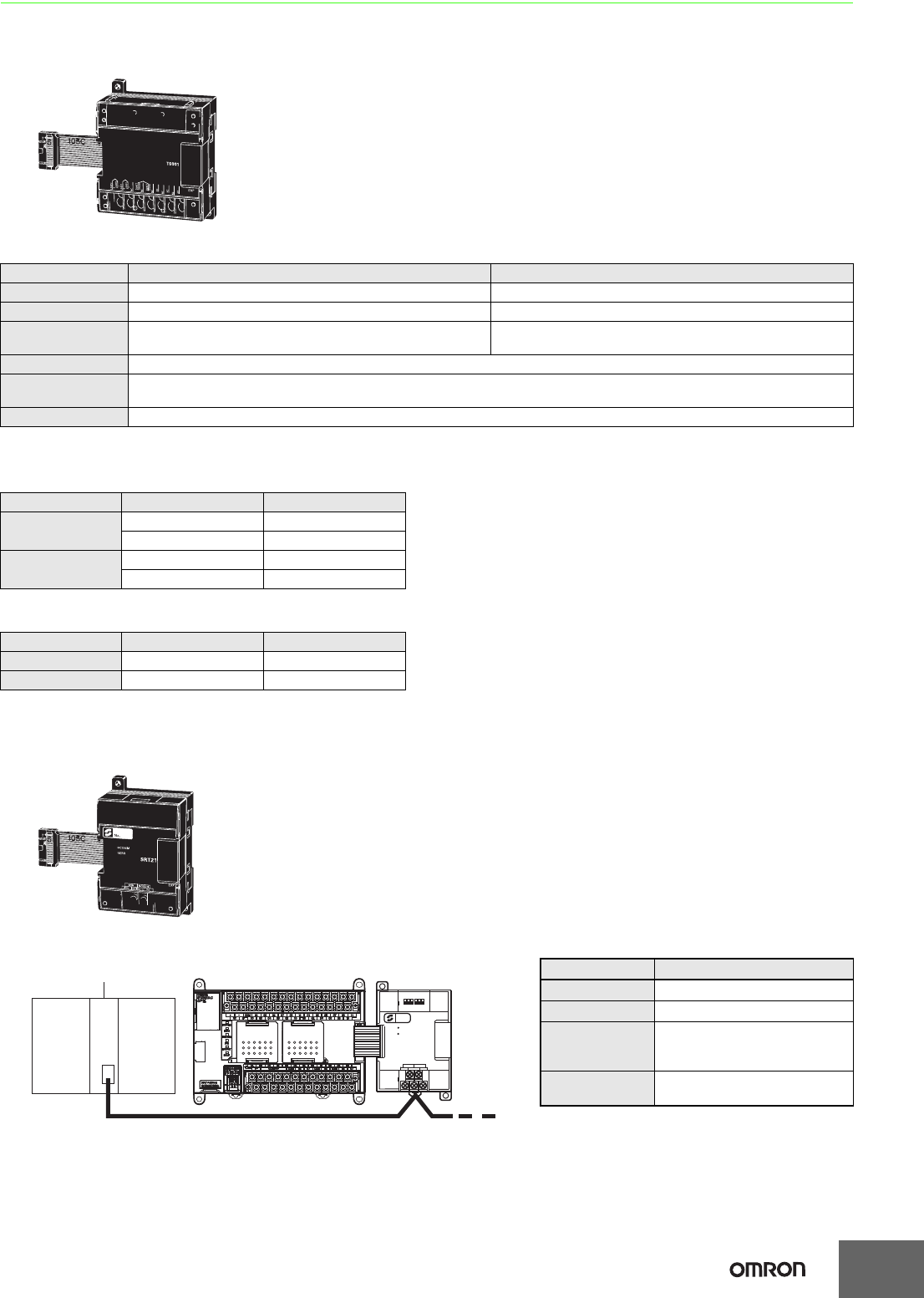

■ Temperature Sensor Units: CP1W-TS001/TS002/TS101/TS102
By mounting a Temperature Sensor Unit to the PLC, inputs can be obtained from thermocouples or platinum resistance thermometers, and tem-
perature measurements can be converted to binary data and stored in the input area of the CPU Unit.
● Specifications
* The indication accuracy when using a K-type thermocouple for temperature less than −100°C is ±4°C±1 digit max.
● Input Temperature Ranges for CP1W-TS001/002
(The rotary switch can be used to make the following range and input type settings.)
● Input Temperature Ranges for CP1W-TS101/102
(The rotary switch can be used to make the following range and input type settings.)
■ CP1W-SRT21 CompoBus/S I/O Link Unit
The CompoBus/S I/O Link Unit functions as a slave for a CompoBus/S Master Unit (or an SRM1 CompoBus/S Master Control Unit) to form an I/O
Link with 8 inputs and 8 outputs between the CompoBus/S I/O Link Unit and the Master Unit.
Item Model CP1W-TS001/002 CP1W-TS101/102
Number of inputs 2 (TS001), 4 (TS002) 2 (TS101), 4 (TS102)
Input types K, J switchable (Note: Same for all inputs.) Pt100, JPt100 switchable (Note: Same for all inputs.)
Indication accuracy
(The larger of the indicated value: ±0.5% and ±2°C (See note.)) ±1
digit max. *
(The larger of the indicated value: ±0.5% and ±1°C) ±1 digit max.
Conversion time 250 ms/2 points (TS001, TS101); 250 ms/4 points (TS002, TS102)
Converted tempera-
ture data
Binary
Isolation method Photocoupler isolation between the temperature input signals.
Input type Range (°C) Range (°F)
K
−200 to 1300 −300 to 2300
0.0 to 500.0 0.0 to 900.0
J
−100 to 850 −100 to 1500
0.0 to 400.0 0.0 to 750.0
Input type Range (°C) Range (°F)
Pt100 −200.0 to 650.0 −300 to 1200.0
JPt100 −200.0 to 650.0 −300 to 1200.0
● Specifications
Item Model CP1W-SRT21
Master/Slave CompoBus/S Slave
Number of I/O bits 8 input bits, 8 output bits
Number of words
occupied in CP1L
I/O memory
1 input word, 1 output word
(Allocated in the same way as for
other Expansion Units)
Node number
setting
Set using the DIP switch (before the
CPU Unit is turned ON.)
BD L NC(BS-) NC
BD H NC(BS+)
COMM
ERR
ON
123
4
5
6
No.
SRT21
EXP
CompoBus/S Master Unit
(or SRM1 CompoBus/S
Master Control Unit)
A maximum of 16 Units can be connected
to one CompoBus/S I/O Link Unit.
CP1W-SRT21
CompoBus/S I/O Link Unit
CP1L
Special flat cable or VCTF cable
CS/CJ Series
C200H@ Series
CQM1(H) Series
SRM1 Series
CPM2C-S Series
