Datasheet

CP1L
23

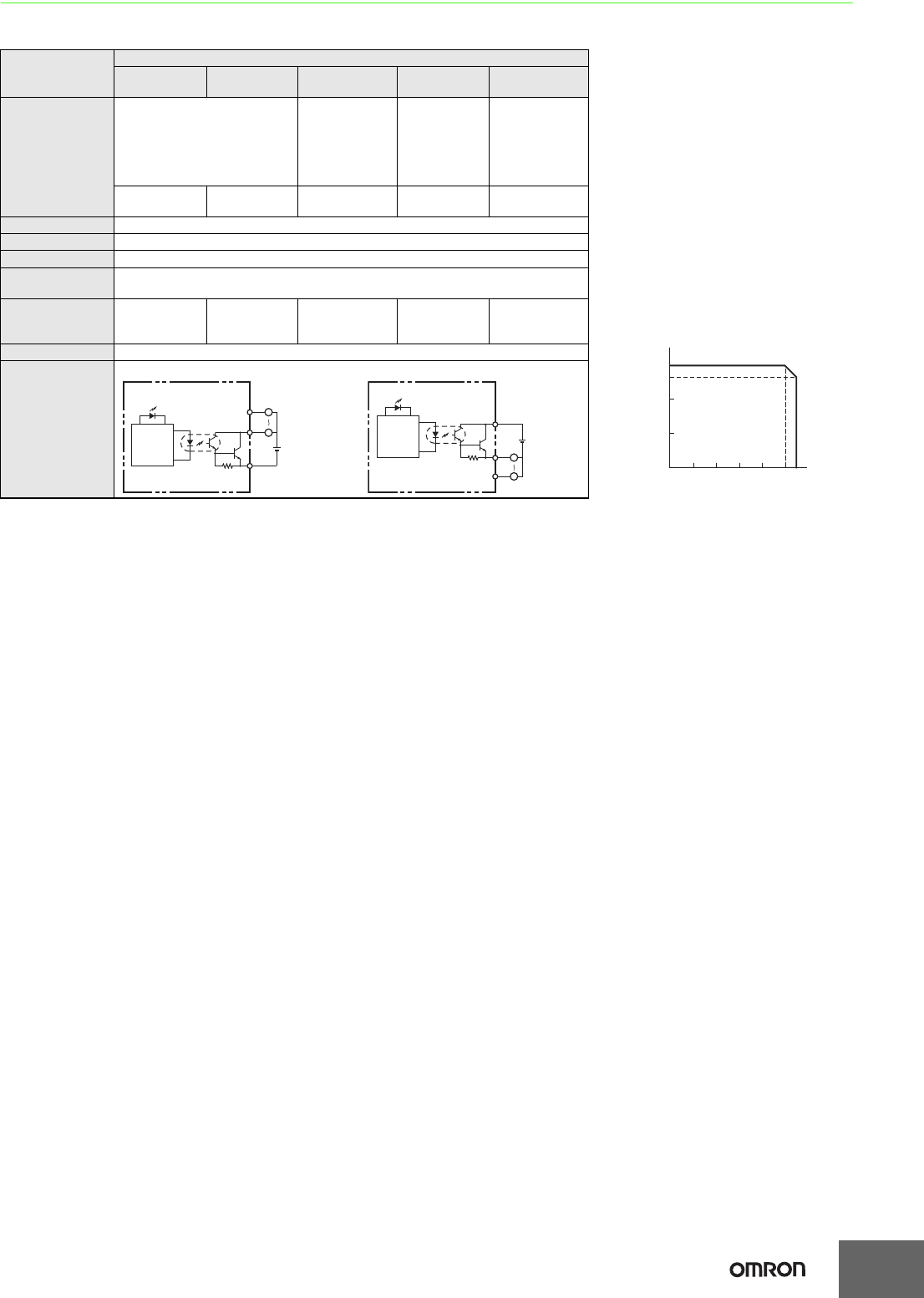

● Transistor Outputs (Sinking/Sourcing)
(CP1W-40EDT/-40EDT1/-32ET/-32ET1/-20EDT/-20EDT1/-16ET/-16ET1/-8ET/-8ET1)
Item
Specifications
CP1W-40EDT
CP1W-40EDT1
CP1W-32E
CP1W-32ET1
CP1W-20EDT
CP1W-20EDT1
CP1W-16ET
CP1W-16ET1
CP1W-8ET
CP1W-8ET1
Max. switching ca-
pacity (See note
3.)
4.5 to 30 VDC: 0.3 A/point
24 VAC +10%/
−5%: 0.3 A/point
4.5 to 30 VDC:
0.3 A/point
• OUT00/01
4.5 to 30 VDC,
0.2 A/output
• OUT02 to 07
4.5 to 30 VDC,
0.3 A/output
0.9 A/common
3.6 A/Unit
0.9 A/common
7.2 A/Unit
0.9 A/common
1.8 A/Unit
0.9 A/common
3.6 A/Unit
0.9 A/common
1.8 A/Unit
Leakage current 0. 1mA max.
Residual voltage 1.5 V max.
ON delay 0.1ms max.
OFF delay
1 ms max. at 24 VDC
+10%/−5%, 5 to 300 mA
Max. number of
Simultaneosly ON
Points of Output
16 pts (100%) 24 pts (75%) 8 pts (100%) 16 pts (100%) 8 pts (100%)
Fuse (See note 2.) 1/common
Circuit configura-
tion
Note: 1. Do not apply a voltage or connect a
load to an output terminal exceeding
the maximum switching capacity.
2.
The fuses cannot be replaced by the
user.
3. A maximum of 0.9 A per common can
be switched at an ambient tempera-
ture of 50
° C.
0.9
0.8
0 50 55
Ambient temperature (°C)
Common
terminal
current
(A)
Output LED
COM (−)
OUT
OUT
24 VDC/
4.5 to
30 VDC
Internal
circuits
L
L
OUT
OUT
L
L
Output LED
COM (+)
24 VDC/
4.5 to
30 VDC
Internal
circuits
Sinking Outputs Sourcing Outputs
