Datasheet
CP1L
15

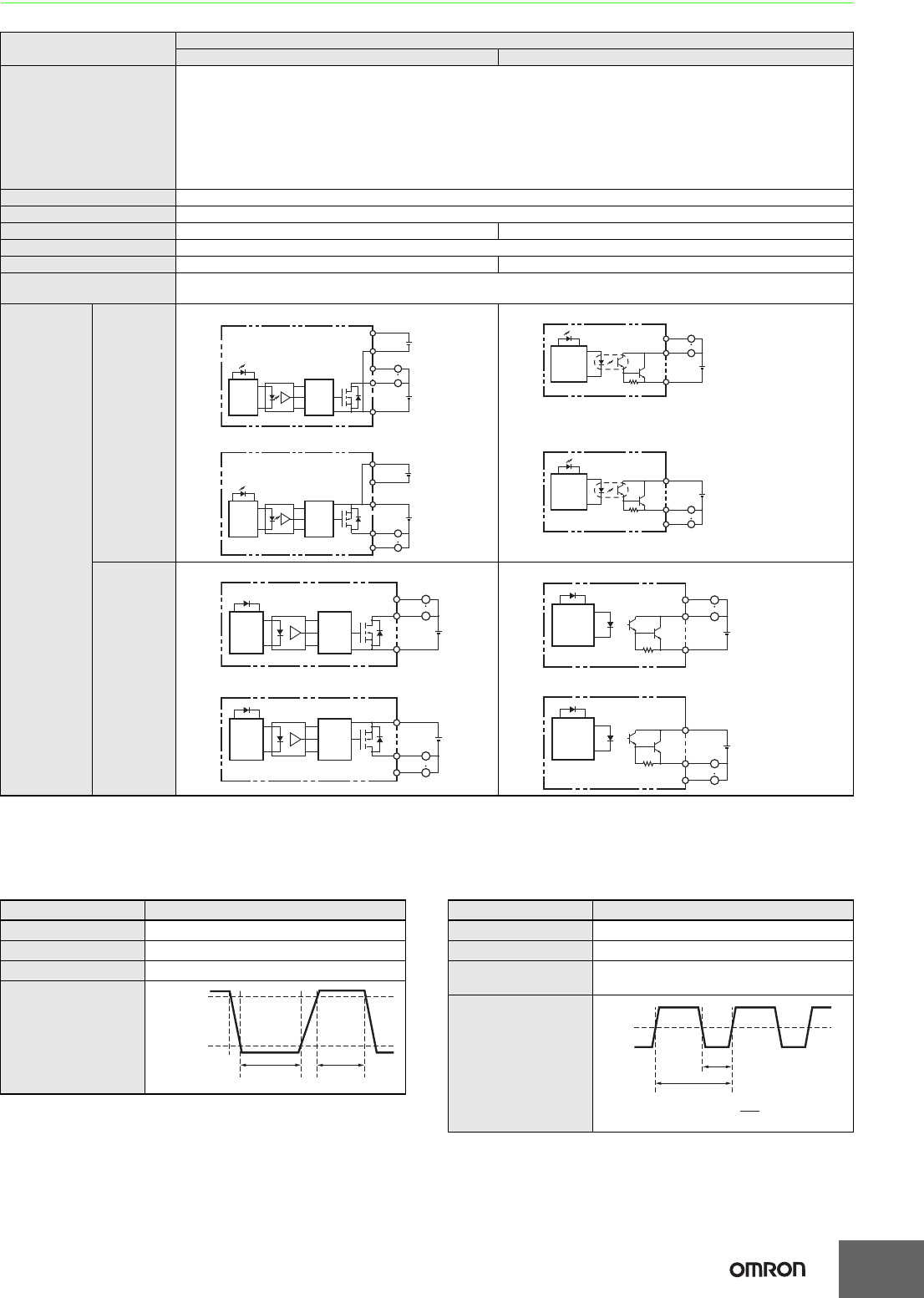

● CPU Units with Transistor Outputs (Sinking/Sourcing)
Note: Do not apply a voltage or connect a load to an output terminal exceeding the maximum switching capacity.
*1. Also do not exceed 0.9 A for the total of CIO 100.00 to CIO 100.03, which are different common.
*2. The bits that can be used depend on the model of the CPU Unit.
*3. The fuse cannot be replaced by the user.
● Pulse outputs
Output bits CIO 100.00 to CIO 100.03
Note: 1. The above values assume a resistive load and do not consider the
impedance of the cable connecting the load.
2.
The pulse widths during actual use may be smaller than the ones shown
above due to pulse distortion caused by connecting cable impedance.
3.
The OFF and ON refer to the output transistor. The output transistor is ON
at level “L”.
● PWM outputs
Output bits CIO100.01, CIO 100.03
Note: The OFF and ON refer to the output transistor. The output transistor is
ON at level “L”.
Item
Specifications
CIO 100.00 to CIO 100.03 *1 CIO 100.04 to CIO 100.07 *2
Max. switching capacity
4.5 to 30 VDC, 300 mA/output, 0.9 A/common, EM40D@-D 3.6 A/Unit
EM30D@-D 2.7 A/Unit
EL20D@-D 1.8 A/Unit
M60D@-D 5.4 A/Unit
M40D@-D 3.6 A/Unit
M30D@-D 2.7 A/Unit
L20D@-D 1.8 A/Unit
L14D@-D 1.5 A/Unit
L10D@-D 0.9 A/Unit
Min. switching capacity 4.5 to 30 VDC, 1 mA
Leakage current 0.1 mA max.
Residual voltage 0.6 V max. 1.5 V max.
ON delay 0.1 ms max.
OFF delay 0.1 ms max. 1 ms max.
Fuse
CP1L-L/M CPU Unit: 1/common *3
CP1L-EL/EM CPU Unit: None
Circuit
configuration
CP1L-EL/EM
CPU Unit
Sinking Outputs
Sourcing Outputs
Sinking Outputs
Sourcing Outputs
CP1L-L/M
CPU Unit
Sinking Outputs
Sourcing Outputs
Sinking Outputs
Sourcing Outputs
OUT
OUT
COM (−)
L
L
V+
V
−
Internal
circuits
Internal
circuits
24 VDC/
20.4 to
26.4 VDC
24 VDC/
4.5 to
30 VDC
OUT
OUT
COM (V+)
L
L
V+
V-
Internal
circuits
Internal
circuits
24 VDC/
4.5 to
30 VDC
24 VDC/
20.4 to
26.4 VDC
OUT
OUT
COM (-)Š
L
L
Internal
circuits
24 VDC/4.5
to 30 VDC
OUT
OUT
COM (+)
L
L
Internal
circuits
24 VDC/4.5
to 30 VDC
Internal
circuits
Internal
circuits
OUT
OUT
4.5 to 30 VDC
COM (−)
L
L
OUT
OUT
L
L
Internal
circuits
Internal
circuits
4.5 to 30 VDC
COM (+)
OUT
OUT
L
L
Internal
circuits
4.5 to 30 VDC
COM (−)
OUT
OUT
L
L
Internal
circuits
4.5 to 30 VDC
COM (+)
Item Specifications
Max. switching capacity 30 mA at 4.75 to 26.4 VDC
Min. switching capacity 7 mA at 4.75 to 26.4 VDC
Max. output frequency 100 kHz
Output waveform
OFF
ON
90%
10%
2 ms min.4 ms min.
Item Specifications
Max. switching capacity 30 mA at 4.75 to 26.4 VDC
Max. output frequency 32.8 kHz
PWM output precision
For ON duty +1%, "0%:10 kHz output
For ON duty +5%, "0%: 0 to 32.8 kHz output
Output waveform
ON duty = × 100%
T
ton
OFF
ON
T
ton
