miConverter 18-Module Chassis
Fiber-to-the-Desk

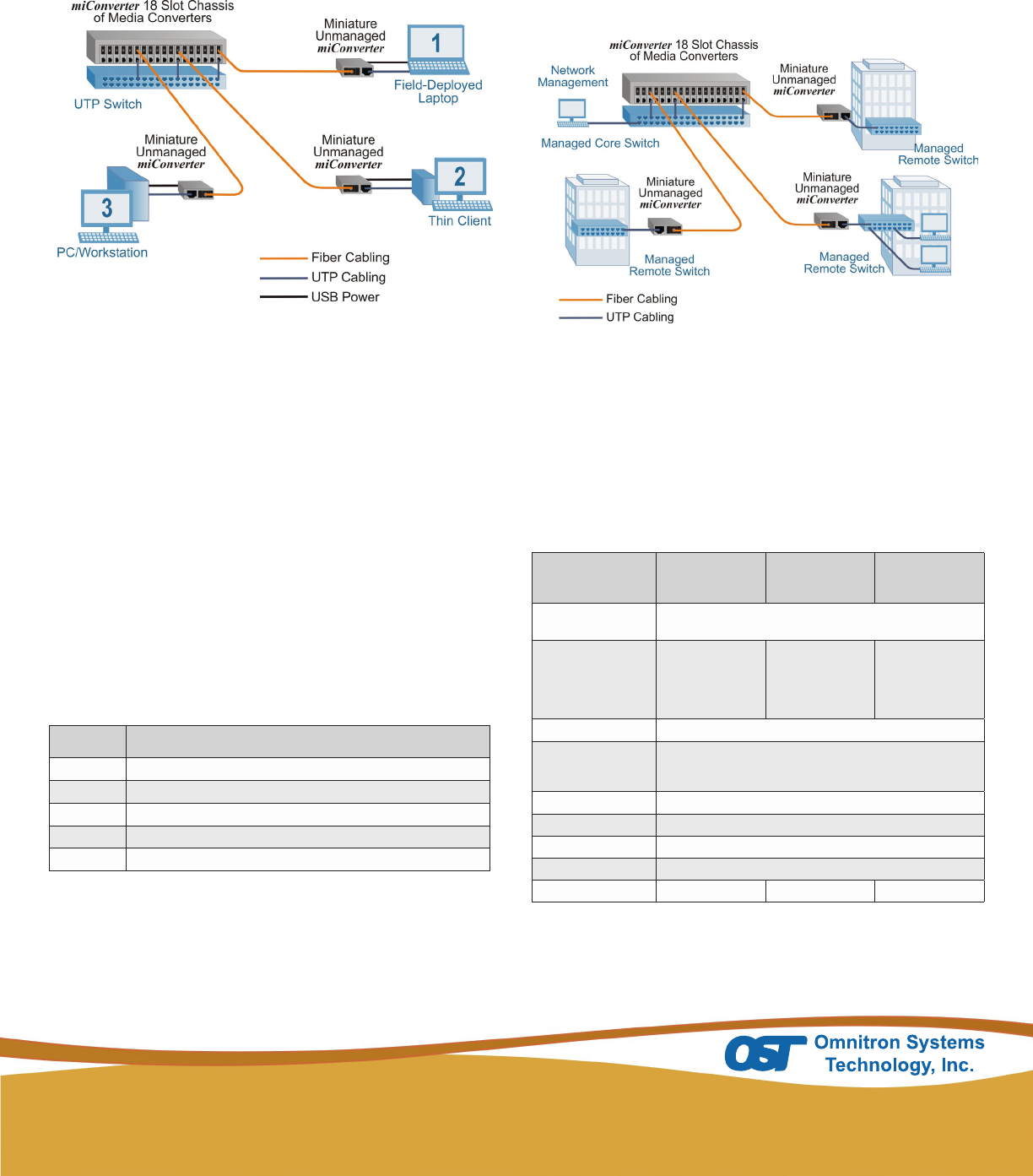

In the upper left of this diagram, UTP from a core switch is
converted to ber with a miConverter 18-Module chassis of
media converters.
1. Fiber is distributed to a eld-deployed laptop computer.
A miniature miConverter media converter provides fiber
connectivity to the laptop and draws power from the laptop’s
USB port (represented by the black line).
2. Fiber is distributed to a Thin Client, where a miniature
miConverter converts the fiber to copper and provides
connectivity to the Thin Client device that does not have a
ber port. The miConverter module is powered directly from
a USB port on the Thin Client device, eliminating the need for
an electrical outlet and saving energy costs.
3. Fiber is distributed to a PC or Workstation, where a
miniature miConverter converts the ber to a UTP cable that
is connected to the workstation supporting a 10, 10/100 or
10/100/1000 copper connection. The miConverter module is
powered directly from a USB port on the PC or Workstation.
Hybrid Copper/Fiber Campus LAN
This application example illustrates an Ethernet Enterprise
network with a star topology that provides multiple ber links
to remote buildings. In the upper left, three copper UTP links
from a core switch are converted to three ber links via a
miConverter 18-Module chassis of media converter modules.
The ber links run to remote buildings, where the ber at
each location is converted back to copper and distributed to
end users at different buildings. Management is carried from
the core switch across the ber link to each switch located
at the remote buildings. This provides centralized network
management across the campus network.
Chassis Type
AC
Powered
Chassis
24VDC
Powered
Chassis
48VDC
Powered
Chassis
Module Capacity
18 miConverter 10/100, 10/100 Plus, Gx and GX/T
modules*
Input Power
Requirements
(typical)
Connector
100 to 240VAC,
50 to 60Hz
0.4A @ 120VAC
IEC320
+/- 18 to 36VDC
2.0A @ 24VDC
3-pin Terminal
+/- 36 to 60VDC
1.0A @ 48VDC
3-pin Terminal
Compliances UL, cUL, CE, FCC Class A
Temperature
Standard Temp:
Wide Temp:
Storage Temp:
0 to 50°C
-40 to 65°C, -20°C Cold Start
-40 to 80°C
Dimensions W: 17.5” x D: 9.5” x H: 2.5”
Weight 7.20 lbs.
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs) 526,000 486,000 1,081,000
SPECIFICATIONS
Model
Number
Description
1020-1
miConverter 18-Module AC Powered Chassis
1025-1
miConverter 18-Module 48VDC Powered Chassis
1026-1
miConverter 18-Module 24VDC Powered Chassis
1092-0 Spare L-Bracket for mounting media converter modules
8092-0 Optional 23” rack mount brackets for 18-Module Powered Chassis
ORDERING INFORMATION
*18-Module Chassis does not support the miConverter S-Series and the
miConverter GX/T with terminal connector (12xx-x-9).
miConverter is a trademark of Omnitron Systems Technology, Inc. Specications subject to change without notice.
© 2012 Omnitron Systems Technology, Inc. All rights reserved.
091-11020-001C 8/12
800-675-8410 • 949-250-6510 • www.omnitron-systems.com • [e-mail] • 140 Technology Dr., Irvine, CA 92618
All chassis ship with 19” rack mount brackets. Order 23” rack mount brackets
separately.
For wide operating temperature (-40 to 65°C) add a “W” to the end of the
model number.
Contact Omnitron for extended operating temperature (-40 to 75°C) models.
