User Manual

800.MOUNT.IT (800.668.6848)
Product Benefits*
• Offers smooth, continuous movement
in all directions
• Patented Constant Force technology enables
light-touch adjustments without knobs or levers
• Gravity pivot enables tilting without
knobs or levers
• Improves ergonomic viewing for TVs
mounted high on the wall
• Tilt and pan for maximum
viewing flexibility
• Back rails engineered from extruded
aluminum with an anodized finish for
maximum strength and aesthetics
• Equipped with lateral shift for
perfect TV placement
• Lift n’ Lock
™
for quick and easy
installation
• Open architecture provides easy
access to in-wall wiring
• Allows for post-installation TV leveling
• Cable management clips route wires
• Includes complete hardware kit
07092012

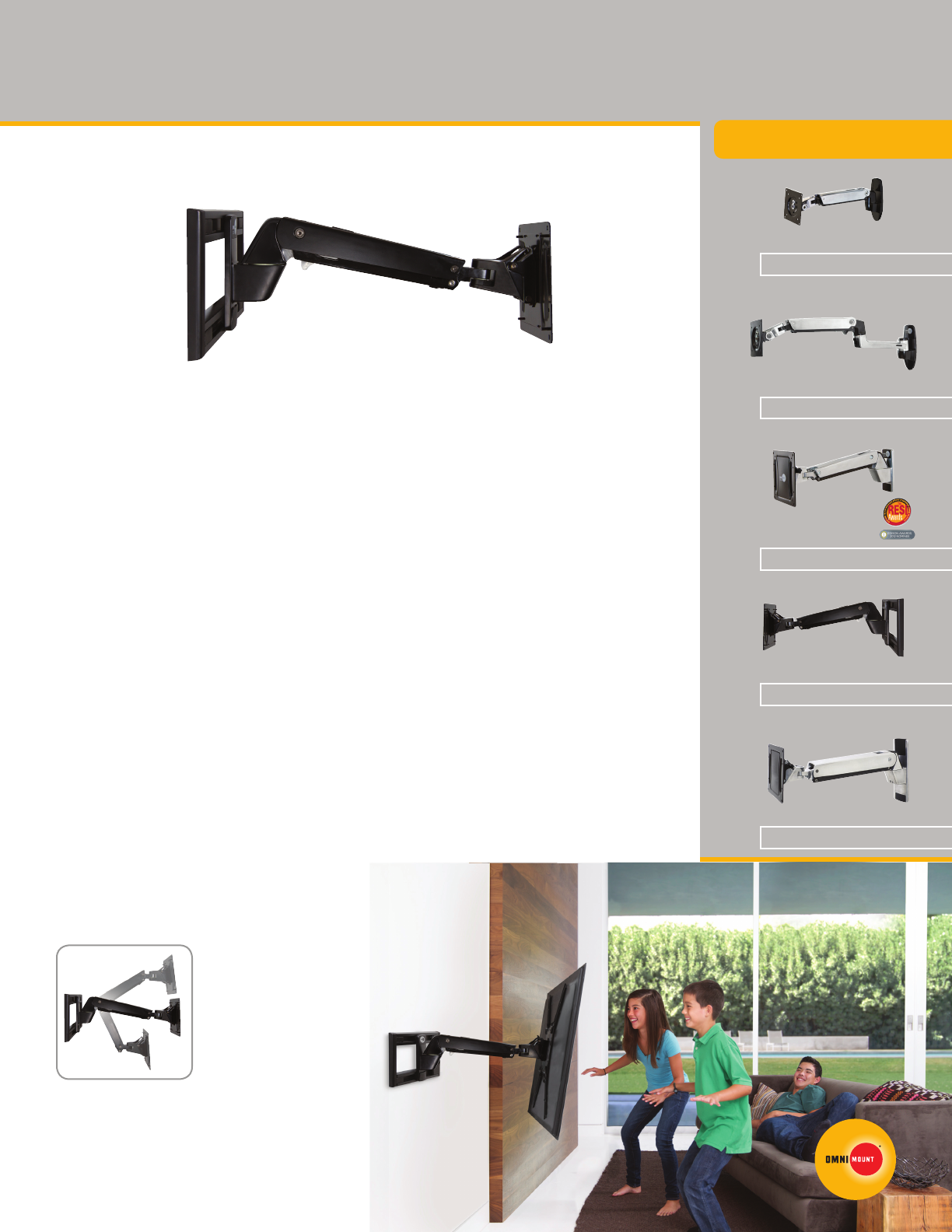

PLAY40DS product information sheet
The PLAY40 is equipped with Ergotron’s patented
Constant Force technology, providing fluid, light-
touch adjustments for effortless arm movement.
Don’t just sit and watch your TV – get up and interact with it! With a full range of movement, the PLAY40DS
allows you to interact with your TV when watching movies, gaming, exercising and more. Sit. Stand. Stretch.
Play – all at the perfect angle. The ActionMount Series by OmniMount takes interactivity with your TV to the
next level.
Product Specifications*
Fits most: 30–55" TVs/displays
Supports: 18–40 lbs (8.2–18.2 kg)
Tilts: +10° to -15°
Pan: 180°
Mounting profile: 6.5" (165mm)
Maximum extension: 24" (610mm)
Horizontal movement: 42” (1067mm)
Vertical adjustment: 20" (508mm)
Lateral shift: 12” (305mm)
Post-installation leveling: ±5°
VESA compliance: 200wx100h to 600wx400h
Mounting: Double-stud
Warranty: 5 years
Color: Satin black
Series
*Subject to change
PLAY70
PLAY20
PLAY20X
PLAY40
2011
2012 Edison Award Nominee
PLAY40DS
