OC100T technical data sheet
1.7
(45)
3.3
(85)
12.6
(320)
2X 13.8
(350)
1.2
(30)
1.4
(35)
20.8
(529)

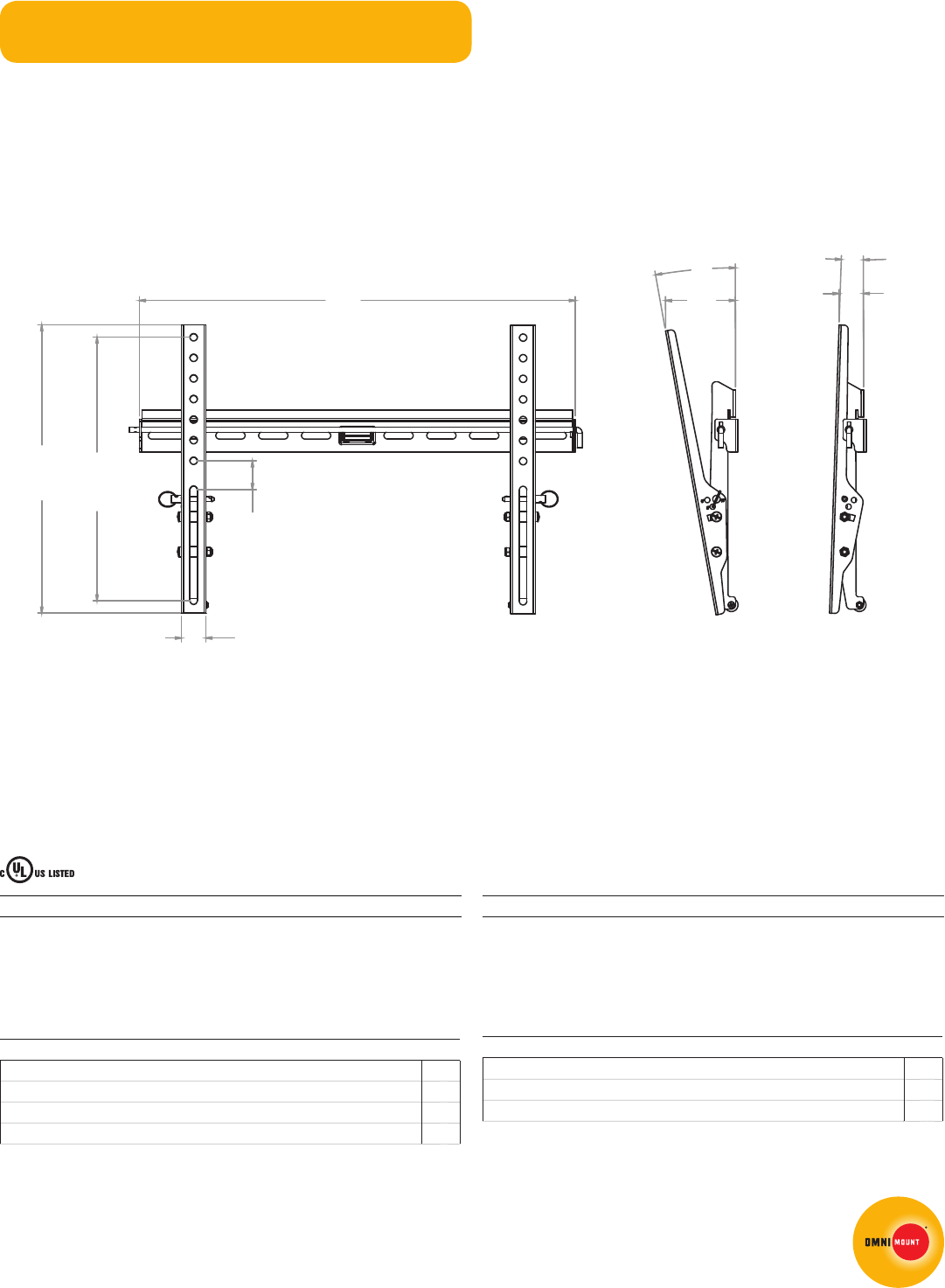

FRONT VIEW
SIDE VIEW
MOUNTING PROFILE
10°
-2°
Box Contents Qty
Wall plate 1
Vertical rail 2
Locking bar 1
Bubble level 1
Dimensions WxDxH inches (mm) Wt lbs (kg) Qty
Box
22.3 x 3.8 x 2.3 (567x97x59) 1.2 (0.6) NA
MC
25 x 8.7 x 6.2 (636x220x158) 4.9 (2.2) 4
Packaging UPC MC UPC
Americas
698833037760 10698833037767
International
NA NA
800.MOUNT.IT (800.668.6848) 04032013
Box Contents Qty
Tilt pin 2
Complete hardware kit 1
Instruction manual 1
