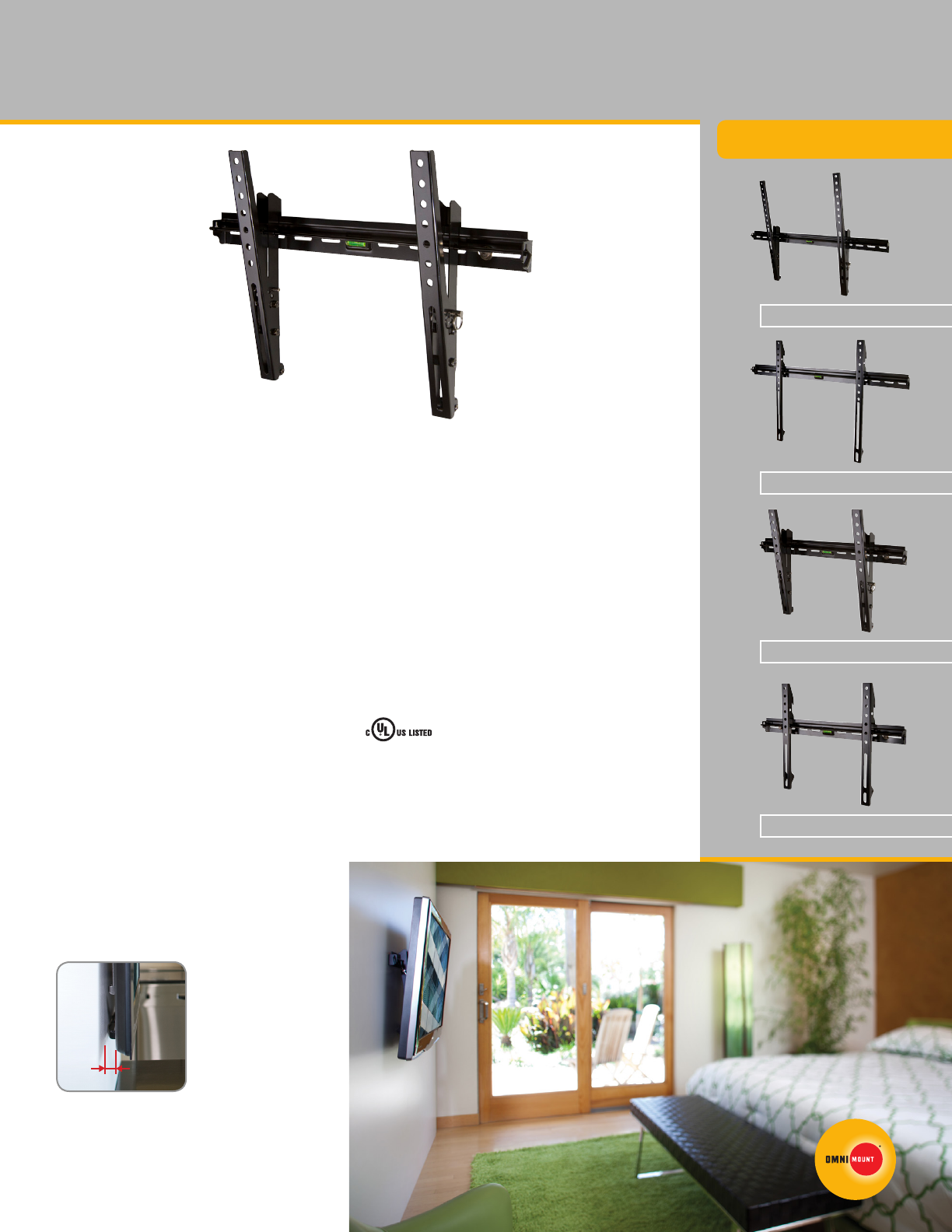

OC100T product information sheet

Product Beneﬁts

• Low proﬁle offers sufﬁcient room for

cable connections and cooling while

keeping TV close to the wall

• Tilt TV forward to reduce glare or for

overhead installations

• Pinned tilt offers uniformity for TVs

mounted side-by-side

• Ideal for TVs with bottom- or side-

loading connectors

• Horizontal wall plate requires only two

holes for quick installation

• Wall plate has integrated level

• Small footprint provides ample room for

power and A/V cutouts behind TV

• Vertical rails ﬁt VESA and non-VESA TVs

• Vertical rails slide on wall plate for minor

left/right repositioning

• Locking bar secures TV to mount

• Includes complete hardware kit

The OC100T is a low-cost, low-proﬁle mounting solution for medium, thin proﬁle TVs.

800.MOUNT.IT (800.668.6848) 04032013

Product Speciﬁcations

Fits most: 23–52" TVs

Supports up to: 100 lbs (45.4 kg)

Tilt: 0°, +5° or +10°

Mounting proﬁle: 1.7" (4.5 cm)

Universal & VESA compliant:

100x100 to 400x300

Mounting: Double-stud or solid wall

Warranty: 5 years

Color: Black

OC100F

OC100T

OC150F

OC150T

A 1.7" (4.5 cm) proﬁle allows for easy connectivity

and sufﬁcient cooling; ideal for TVs with

bottom- or side-loading connectors.

1.7"

PAGE 1
OC100T product information sheet Series OC150T The OC100T is a low-cost, low-profile mounting solution for medium, thin profile TVs.
PAGE 2
OC100T technical data sheet 20.8 (529) 2X 13.8 12.6 (350) (320) -2° 1.7 (45) 10° 3.3 (85) 1.4 (35) 1.2 (30) SIDE VIEW MOUNTING PROFILE FRONT VIEW inches (mm) Americas International Packaging UPC MC UPC 698833037760 NA 10698833037767 NA Box MC Box Contents Qty Wall plate Vertical rail Locking bar Bubble level 1 2 1 1 800.MOUNT.IT (800.668.6848) Dimensions WxDxH inches (mm) Wt lbs (kg) Qty 22.3 x 3.8 x 2.3 (567x97x59) 25 x 8.7 x 6.2 (636x220x158) 1.2 (0.6) 4.9 (2.
