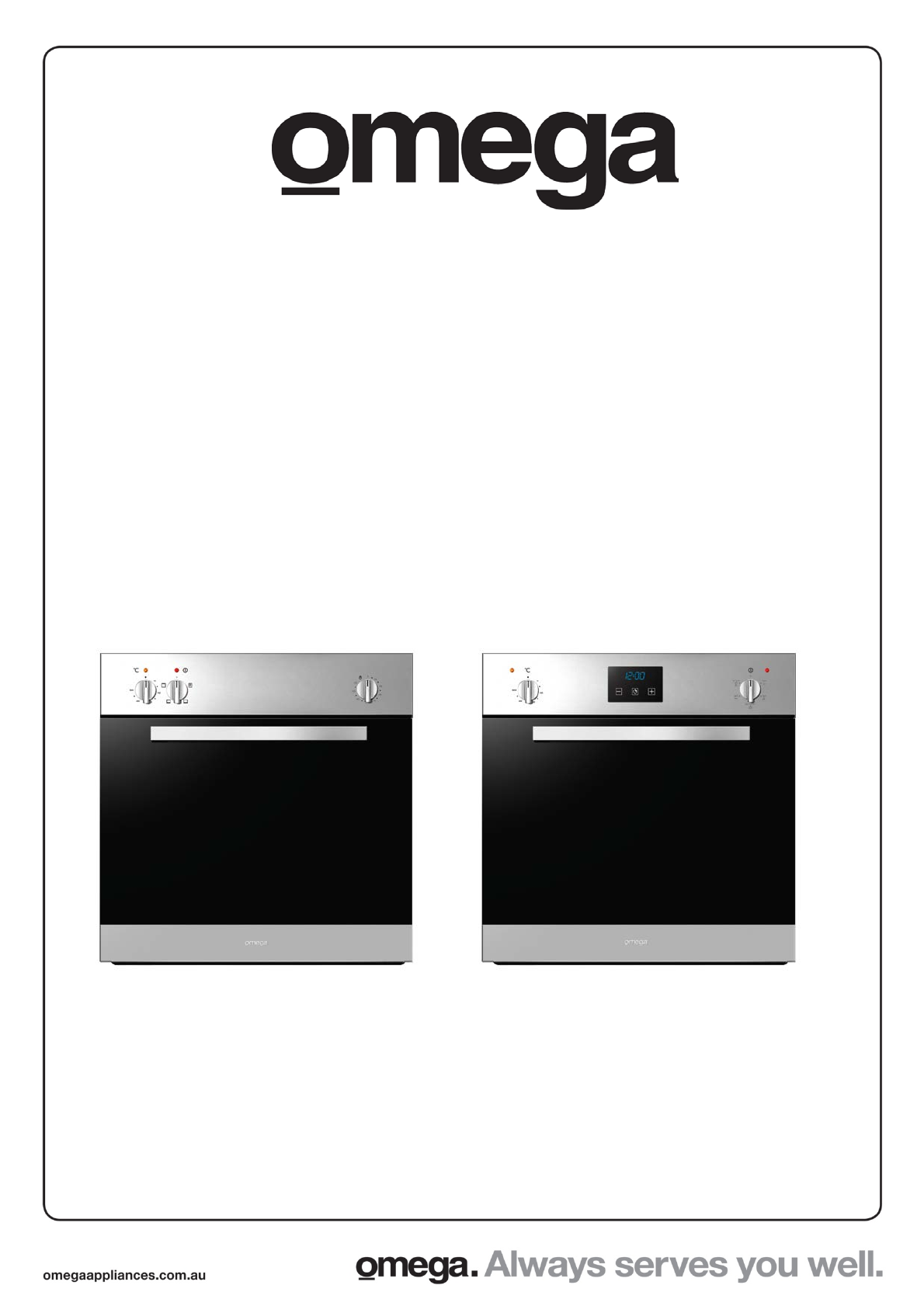

Instruction Manual for Electric Ovens OO651XR OO652XR 1
DEAR CUSTOMER, We thank you and congratulate you on your choice. This new carefully designed product, manufactured with the highest quality materials, has been carefully tested to satisfy all your cooking demands. We would therefore request you to read and follow these easy instructions, which will allow you to obtain excellent results right from the start. TABLE OF CONTENTS Safety Instructions.............................................................................................
SAFETY INSTRUCTIONS Important - When you receive the appliance, unpack it or have it unpacked immediately. Give it an overall inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form. Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven.
SAFETY INSTRUCTIONS Cont. Maintenance and cleaning - Do not use a steam cleaner. - For any cleaning operation inside the oven cavity, the oven must be switched off. - Before unclipping the glass, allow the appliance to cool. - Before removing the back, ensure that the appliance is powered down. After cleaning, the back should be replaced in accordance.
INSTALLATION OF YOUR OVEN To install the oven into the kitchen a cut out should be made in accordance with the dimensions shown in below. The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes made on the oven uprights. The cabinet in which the apparatus is installed shall be open on the back side to ensure a sufficient air circulation and prevent overheating.
ELECTRICAL INSTALLATION WARNING This apparatus must be earthed. The oven is only for domestic use. The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side upright, which can be seen when the oven door is open. Connecting must be carried out by qualified personnel and in accordance with the regulations currently in force. The manufacturer cannot be held responsible for any damages to persons or objects caused by failure to observe these instructions.
INSTRUCTIONS FOR USE Cooking Functions Each type of oven is provided for various cooking systems. A system can be selected by bringing the pointer of knob to the relating symbol. (OO651XR, OO652XR) MODE PRESET (⁰C) TMIN (⁰C) TMAX (⁰C) HEATING ELEMENTS NAME ZERO - - LIGHT - - DEFROST 190 50 250 2300 FAN FORCED 230 50 250 2000 FAN GRILL 230 50 250 2000 GRILL Mechanical Timer (Model: OO651XR) The mechanical timer needs to be set to the hand in order for the oven to function.
Programming time functions At every power-up, the control shows the time of day blinking set at 12:00 as the initial value. The time increases every minute. The only possible action is the “Clock Regulation”, all other oven operations are inhibited. In general, turn the Temp/Time selector left or right in order to edit the values and modify them by steps; hold the knob on the left or right to fasten the decrease/increase operations. Setting the time of day Fig.
The end of cooking time Fig. 4 The end of cooking time can also be set. This works as part of a programmed time. Press the central button for 3 seconds. Press the central button twice consecutively and wait for “End” to appear (fig. 4). Press “+” and “-” to set the required end of cooking time. The oven will work in the set mode and at the set temperature until the end of cooking time. Setting Programming automatic cooking Fig.
Setting an automatic oven function After having selected a function as described before, the control can be programmed in order to set timed cooking activities. The time program remains active even if the function is changed .The following possibilities are available: 1. Timed cooking setting the cooking time (duration). 2. Timed cooking setting the end of cooking time (stop time). 3. Delayed cooking setting duration and stop time.
Oven door removal WARNING Make sure that: • The oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns. • The oven door is heavy and fragile. Use both hands to remove the oven door. The door front is Glass. Handle care-fully to avoid breakage. • Grasp only the sides of the oven door. Do not grasp the handle as it may swing in your hand and cause damage or injury.
Replacement of the oven light WARNING Make sure that: • The oven and lights are cool and power to the oven has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns. • The lenses must be in place when using the oven. • The lenses serve to protect the light bulb from breaking. • The lenses are made of glass. Handle carefully to avoid breakage. Broken glass could cause an injury. 1. Turn off power at the main power supply (fuse or breaker box). 2.
TROUBLESHOOTING If the oven does not operate: • The oven may be unplugged from the power source or switched off at the power source. • The household fuse has blown or household power supply is off. • The Timer (if available) may not set correctly. If the oven does not heat: • The heat may not be set correctly with the oven’s temperature setting. If the interior lighting lamp does not light: • The lamps are defective. If they are defective, you can change them following the instructions within this manual.
We appreciate your feedback. Please review our products on www.omegaappliances.com.
