2.7.3 DIP Switch Setup: Ethernet - Coordinator

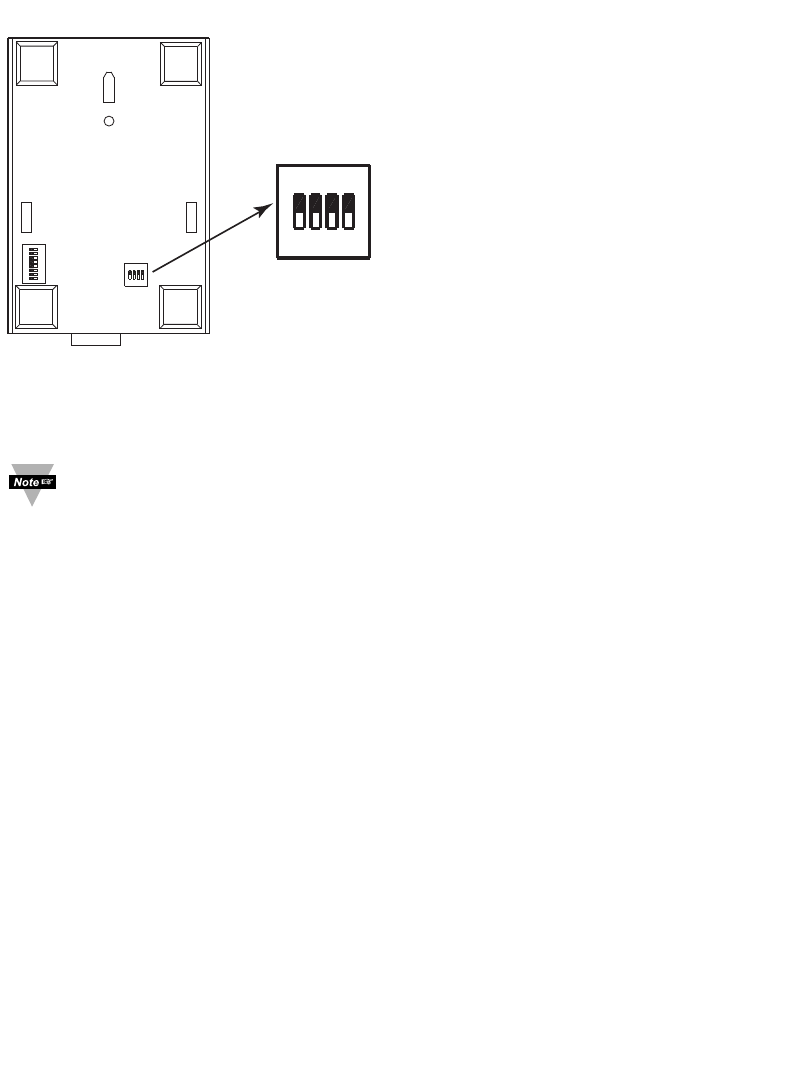

Figure 2.9 Ethernet - 4 Position DIP Switch Setup
To set the Coordinator to factory default settings:
1) Slide DIP switch #2 to ON position.
2) Power the Coordinator on and wait about 10 seconds until the Coordinator
fully boots up.
3) Set the DIP switch #2 back to OFF position (it does not matter if the
Coordinator is powered ON or OFF, just make sure that the DIP switch is set
to OFF, otherwise, every time the unit is power-cycled the factory settings will
take over.
O
FF ON
1
8
1 SERIAL
2 DEFAULT
3 DHCP
4 TERMINAL
Coordinator
OFF
ON
14
(Shown in
"OFF" Position)
1) N/C
2) To change to default factory settings
3) To enable/disable DHCP
4) N/C
