2.4 Disassembly - End Device

You may need to open the unit for one of the following reasons:

• To turn on Power Switch.

• To mount unit to wall. Refer to Figure 2.2 for mounting dimensions.

• To connect or replace the batteries, (note the polarity of batteries).

• To access JTAG connector.

Remove Cover as shown below, by pressing sides of cover to release latches.

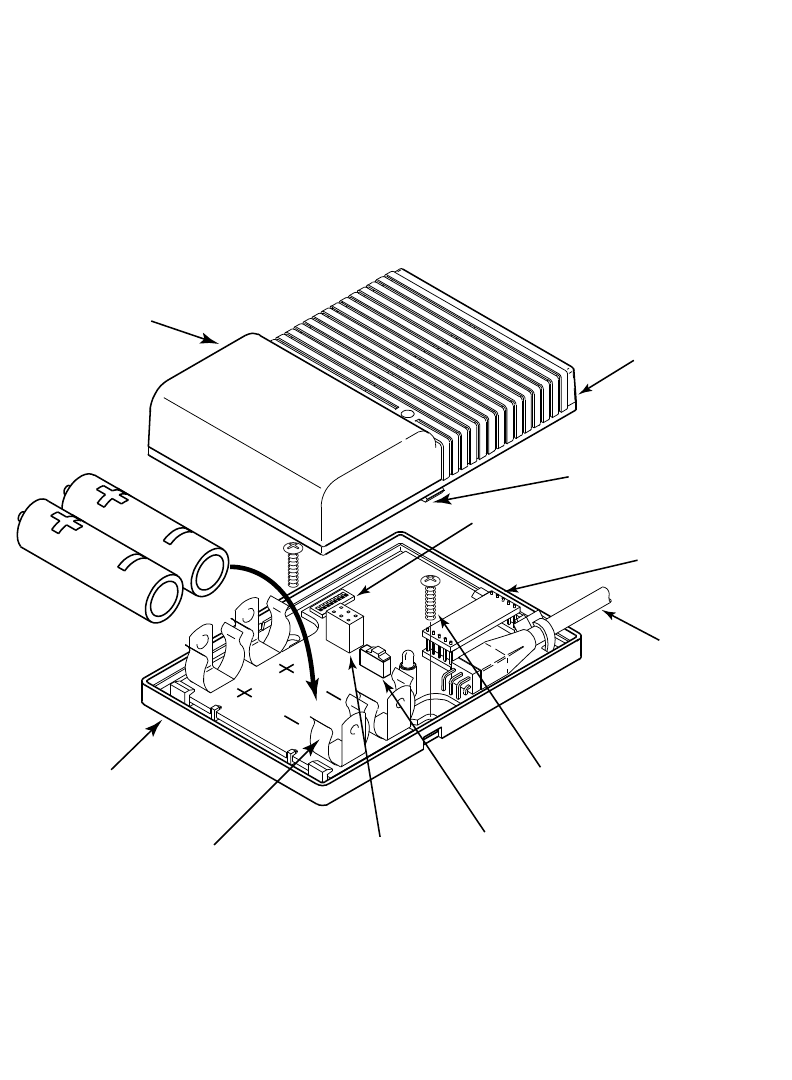

Figure 2.4 Disassembly of the End Device

COVER

LATCH

SENSOR

BOARD

EXTERNAL

SENSOR/

PROBE

TRAY

POWER SWITCH

BATTERY CLIPS

LATCH

DIP SWITCH

MOUNTING SCREW

JTAG
