PART 2
HARDWARE
2.1 Parts of the End Device
1 8 position DIP switch (under cover), sets the NID and DID of the End Device
(see Section 2.7 for details)
2 Optional rear entry for external probes
3 Label for Unit Address, Group No. and Network Address
4 Wall mounting holes
5 Label with model and serial numbers
6 Radio module firmware revision location on label
7 Case’s tray, where the PCB, sensor and batteries are mounted
8 Case’s cover
9 Transmit LED (blue)
10 Case’s latch: squeeze sides to pull the cover off
11 Optional external probe with sensor

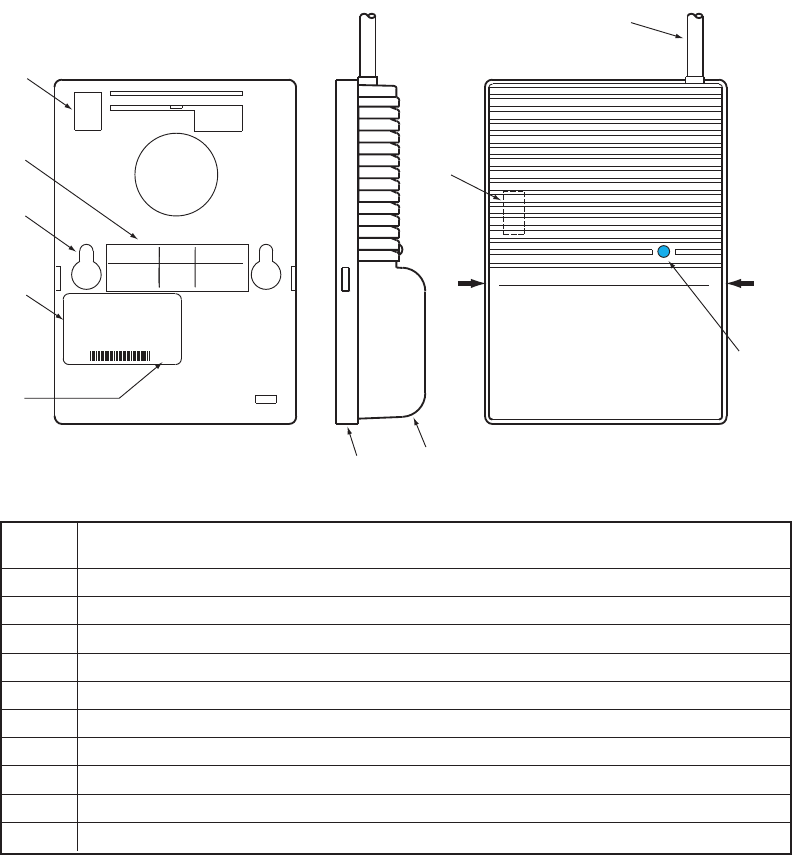

Figure 2.1 Parts of the End Device
FRONT
REAR
11
9
10
7
8
MODEL #
SERIAL #
#.#
1
4
3
5
6
2
Unit Addr Group Net. Addr
