- OMEGA Peristaltic Pump User Guide

2
Parts of the Pump
2-1

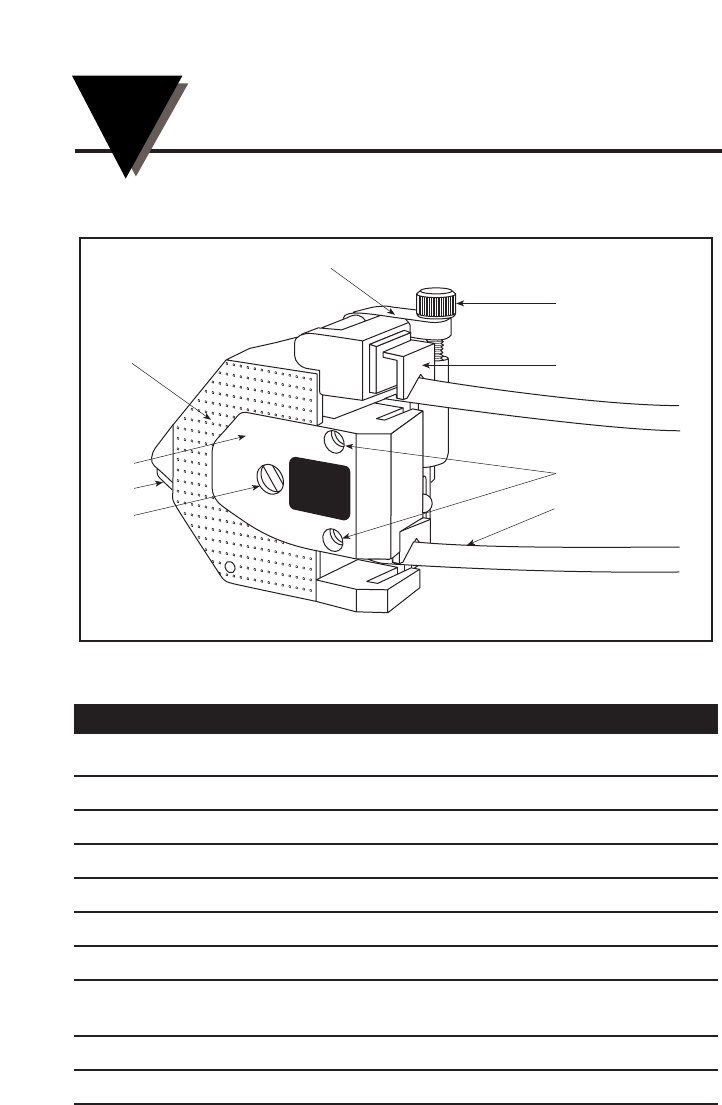

2.1 Overall View of the Pump
Figure 2-1. Overall View
Item Description Function
1 Stator Fixed surface for tubing compression
2 Latch Used to open and close the Stator
3 Clamp Plate Secures the tubing during pump operation
4 Clamp Screw Adjusts the tubing clamp position
5 Rotor Shaft Main drive shaft for the pump
6 Mounting Holes Allow clearance for Mounting Screws
7 Lower Shield Shields the tubing, supports the Rotor Assembly
8 Base Mounting surface to attach the pump to the
motor, supports the Rotor Assembly
9 Mounting Screws Attach the pump to the motor (screws not shown)
10 Tubing Conduit for fluid
1
4
7
5
6
8
2
3
10
