Operating the Pump
5
5-2
5.2 Loading the Tubing
Before you load the tubing in the pump, make sure that
power to the motor is turned off and that the rotor has
come to a complete stop. The rotor is partially exposed
when the pump is in the open position.
Follow this procedure (refer to Figures 5-1 through 5-4 and
Figure D):

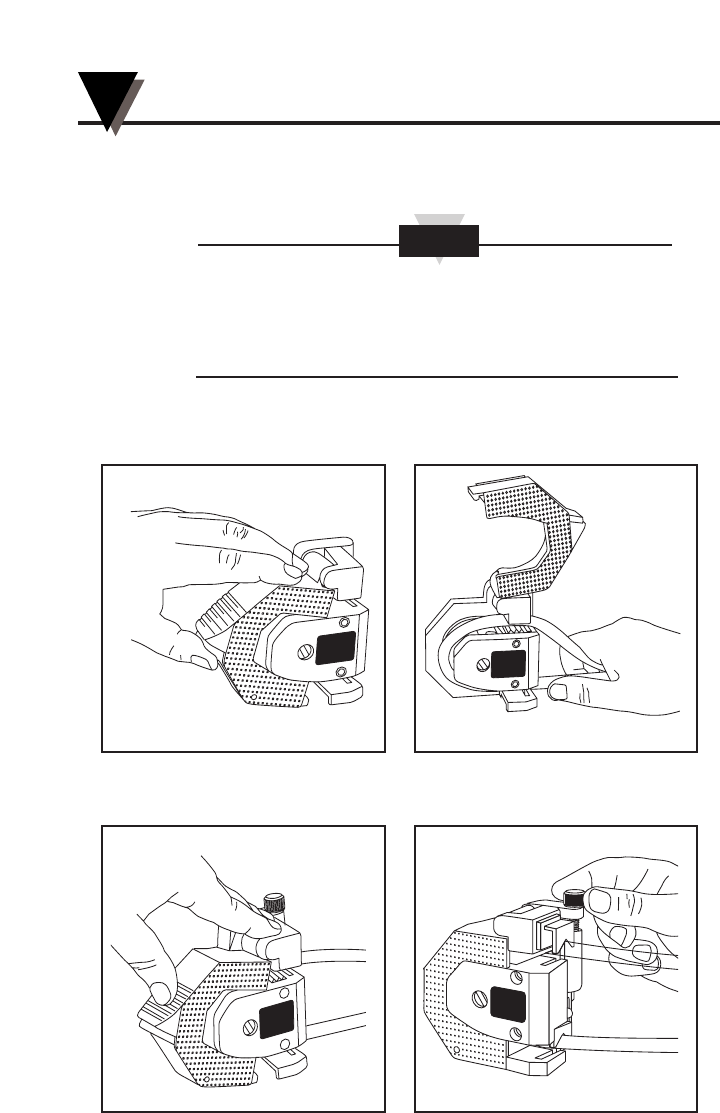

Figure 5-1. Opening the Stator Figure 5-2. Loading the Tubing
Figure 5-3. Closing the Stator Figure 5-4. Adjusting the Clamp Screw
NOTE
