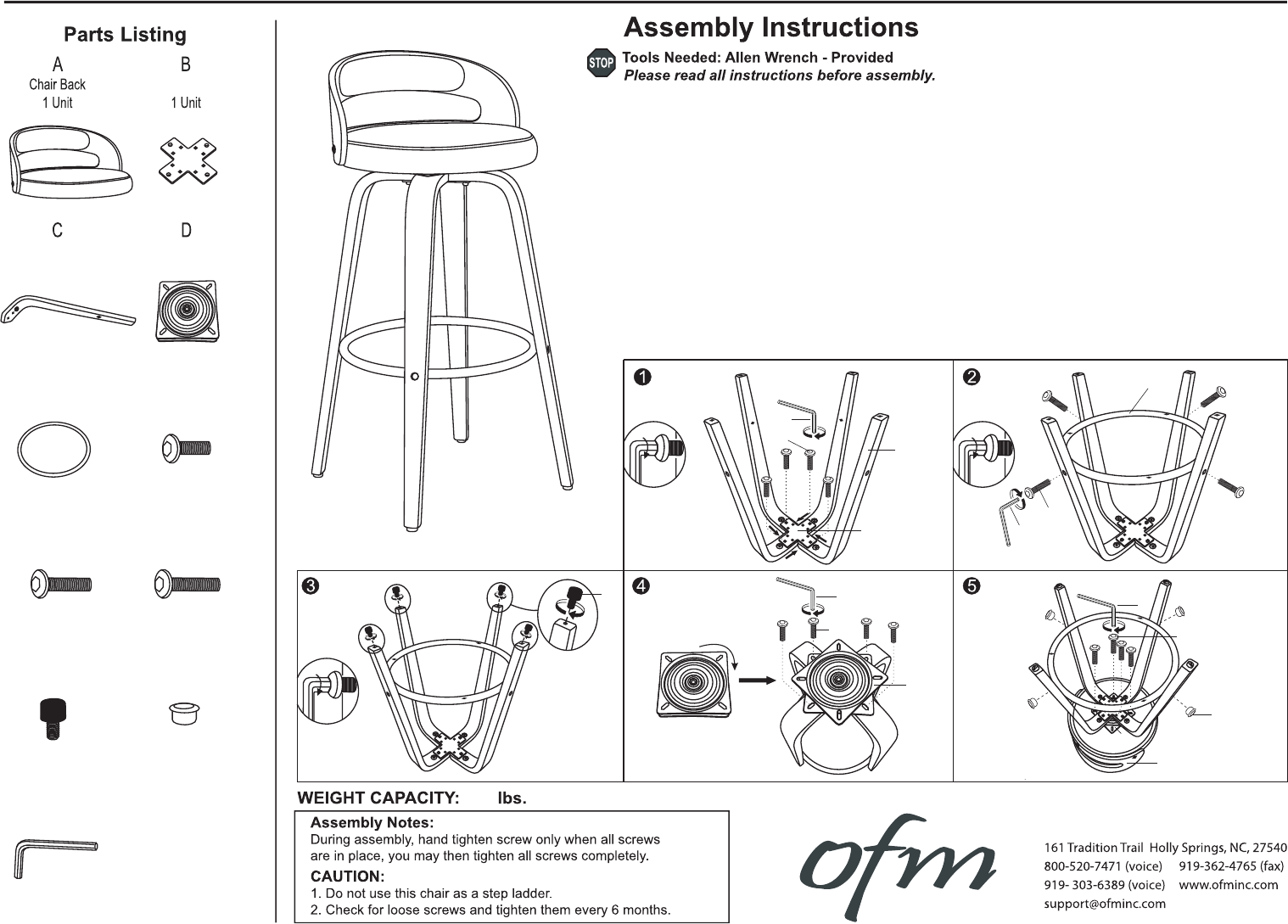

User Manual

4 Units 1 Unit
Model 161-WV30C/WF30C Wood and Swivel Bar Stool
Step 1:
275
K
Gx4
K
Gx4
Fx4
K
B
D
A
E
C
Hx4
E
60% 60%
K
100%
45°
26.12.2018
Step 2:
Step 3:
Step 4:
Step 5:
D
I
C
Metal Plate
TurnplateSolid Wood Leg
Attach metal plate(B) to four Solid Wood Legs(C) , using four M6x20mm Screw(G) first
as shown.Tighten with M6 Allen Wrench (K). Do not fully tighten screws.
Attach Foot Ring(E) to four Solid Wood Legs(C) , using four M6x25mm Screws(H) as
shown.Tighten with M6 Allen Wrench (K).Do not fully tighten screws.
Install the nail(I) at the bottom of the Solid Wood Legs(C) .Tighten the screws fully.
Attach Turnplate(D) to fourSolid Wood Legs (C) , using four M6x20mm Screws(G) as
shown.Tighten with M6 Allen Wrench (K).
Attach Turnplate(D) to Chair Back(A),using four M6*18mm Screws (F) as shown.
Tighten with M6 Allen Wrench (K).And then put the four Caps(J) on the Solid Wood
Legs(C) as shown.
4 Units
4 Units1 Unit
M6x18mm ScrewFoot Ring
H
Solid Wood Leg nail
I
Cap
J
1 Unit
M6 Allen Wrench
K
G
F
8 Units
M6x20mm Screw M6x25mm Screw
4 Units 4 Units
J
The holes of
the foot ring
face down.
