PESD5V0L1UA/UB/UL
Low capacitance unidirectional ESD protection diodes

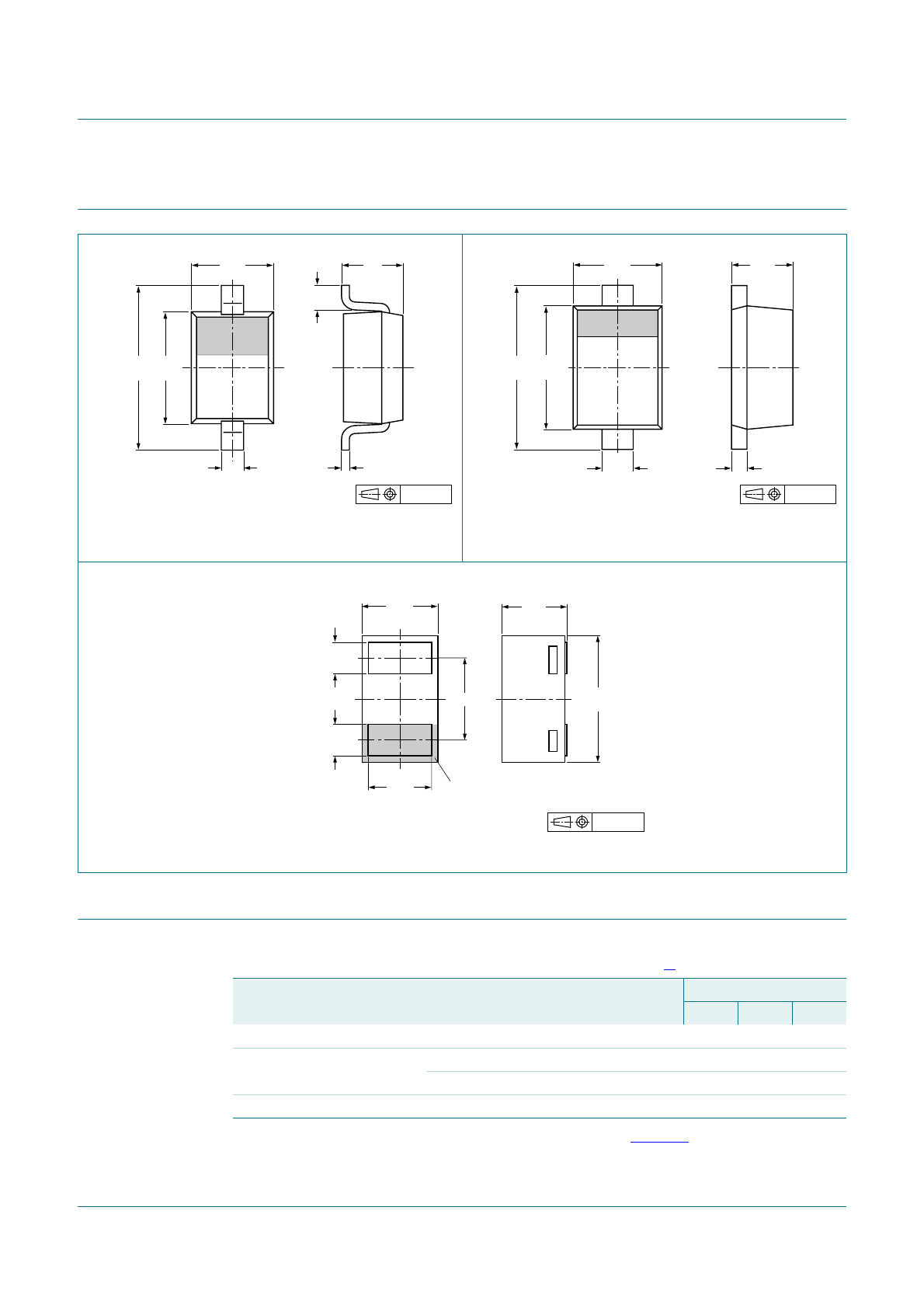

9. Package outline
10. Packing information
[1] For further information and the availability of packing methods, see Section 14.
Fig 7. Package outline
PESD5V0L1UA (SOD323/SC-76)
Fig 8. Package outline
PESD5V0L1UB (SOD523/SC-79)
Fig 9. Package outline PESD5V0L1UL (SOD882)
03-12-17Dimensions in mm
0.25
0.10
0.45
0.15
2.7
2.3
1.8
1.6
0.40
0.25
1.1
0.8
1.35
1.15
1
2
02-12-13Dimensions in mm
1.65
1.55
1.25
1.15
0.17
0.11
0.34
0.26
0.65
0.58
0.85
0.75
1
2
03-04-17Dimensions in mm
0.55
0.47
0.65
0.62
0.55
0.50
0.46
cathode marking on top side
1.02
0.95
0.30
0.22
0.30
0.22
2
1
Table 10. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.
[1]
Type number Package Description Packing quantity
3000 8000 10000
PESD5V0L1UA SOD323 4 mm pitch, 8 mm tape and reel -115 - -135
PESD5V0L1UB SOD523 2 mm pitch, 8 mm tape and reel - -315 -
4 mm pitch, 8 mm tape and reel -115 - -135
PESD5V0L1UL SOD882 2 mm pitch, 8 mm tape and reel - - -315
