NXP Semiconductors
PESD5V0L1UA/UB/UL
Low capacitance unidirectional ESD protection diodes
2. Pinning information
[1] The marking bar indicates the cathode.
3. Ordering information
4. Marking

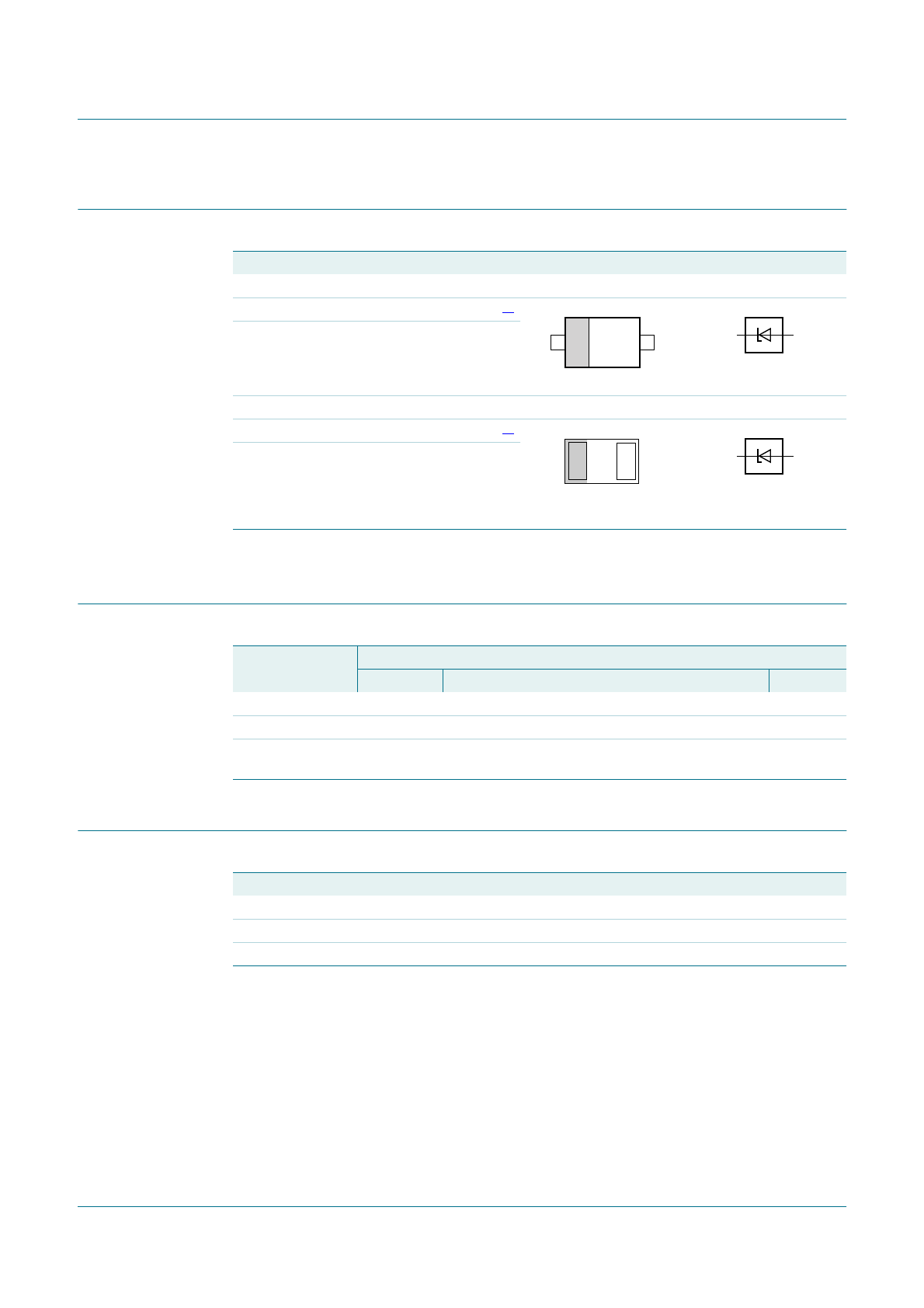

Table 3. Pinning
Pin Description Simplified outline Graphic symbol
PESD5V0L1UA; PESD5V0L1UB
1 cathode
[1]
2 anode
PESD5V0L1UL
1 cathode
[1]
2 anode
001aab540
12
006aaa152
2
1
21
Transparent
top view
006aaa152
2
1
Table 4. Ordering information
Type number Package
Name Description Version
PESD5V0L1UA SC-76 plastic surface-mounted package; 2 leads SOD323
PESD5V0L1UB SC-79 plastic surface-mounted package; 2 leads SOD523
PESD5V0L1UL - leadless ultra small plastic package; 2 terminals;
body 1.0 × 0.6 × 0.5 mm
SOD882
Table 5. Marking codes
Type number Marking code
PESD5V0L1UA 1J
PESD5V0L1UB Z8
PESD5V0L1UL XY
