NPN/PNP resistor-equipped transistors; R1 = 4.7 k, R2 = 47 k

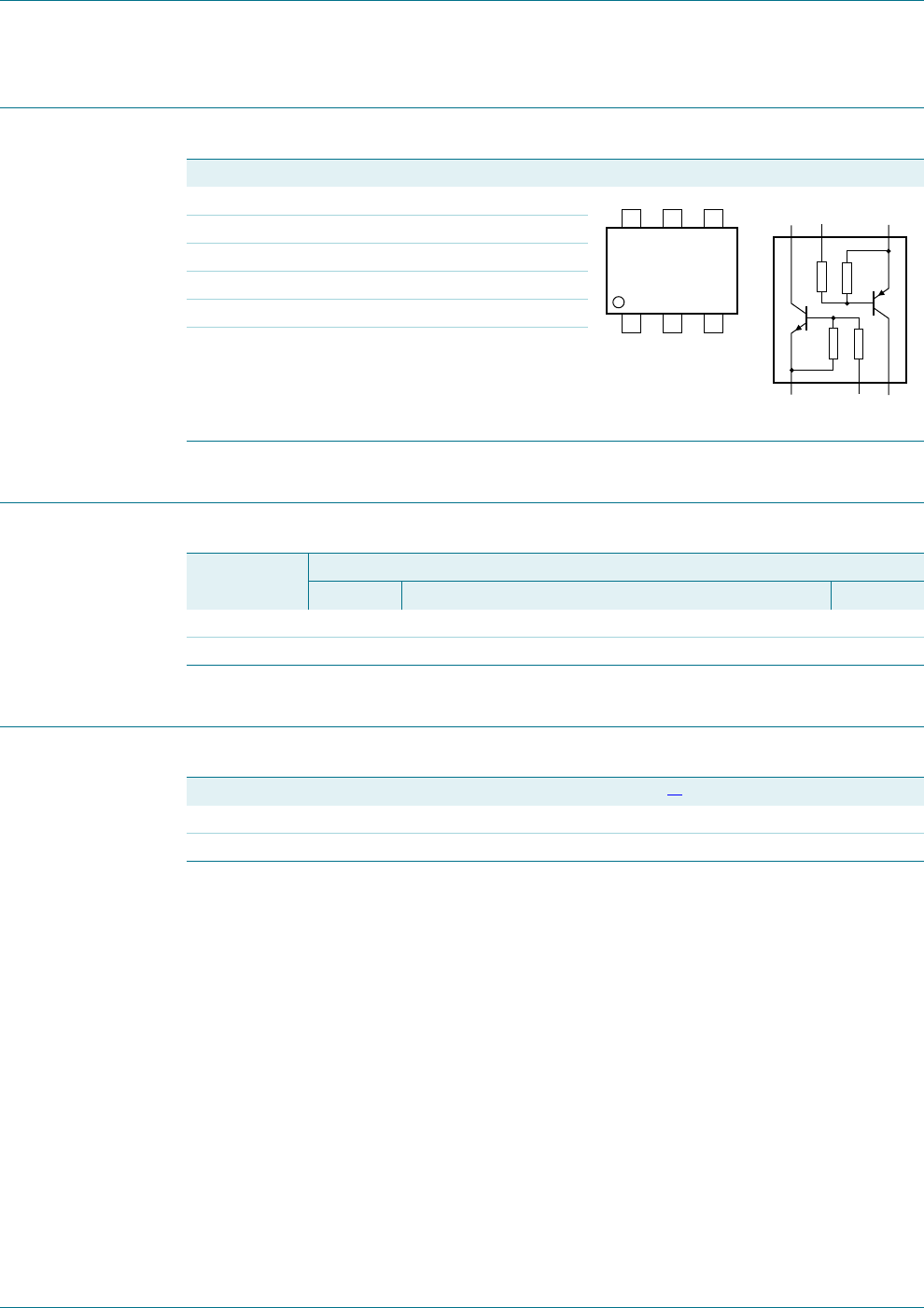

2. Pinning information
3. Ordering information
4. Marking
[1] * = placeholder for manufacturing site code
Table 3. Pinning
Pin Description Simplified outline Graphic symbol
1 GND (emitter) TR1
2 input (base) TR1
3 output (collector) TR2
4 GND (emitter) TR2
5 input (base) TR2
6 output (collector) TR1
001aab555
6 45
1 32
65 4
1
23
R2
TR1
TR2
R1
R2 R1
006aaa143
Table 4. Ordering information
Type number Package
Name Description Version
PEMD13 - plastic surface-mounted package; 6 leads SOT666
PUMD13 SC-88 plastic surface-mounted package; 6 leads SOT363
Table 5. Marking codes
Type number Marking code
[1]
PEMD13 Z1
PUMD13 3*1
