Philips Semiconductors Product speciﬁcation

4-to-16 line decoder/demultiplexer with

input latches

74HC/HCT4514

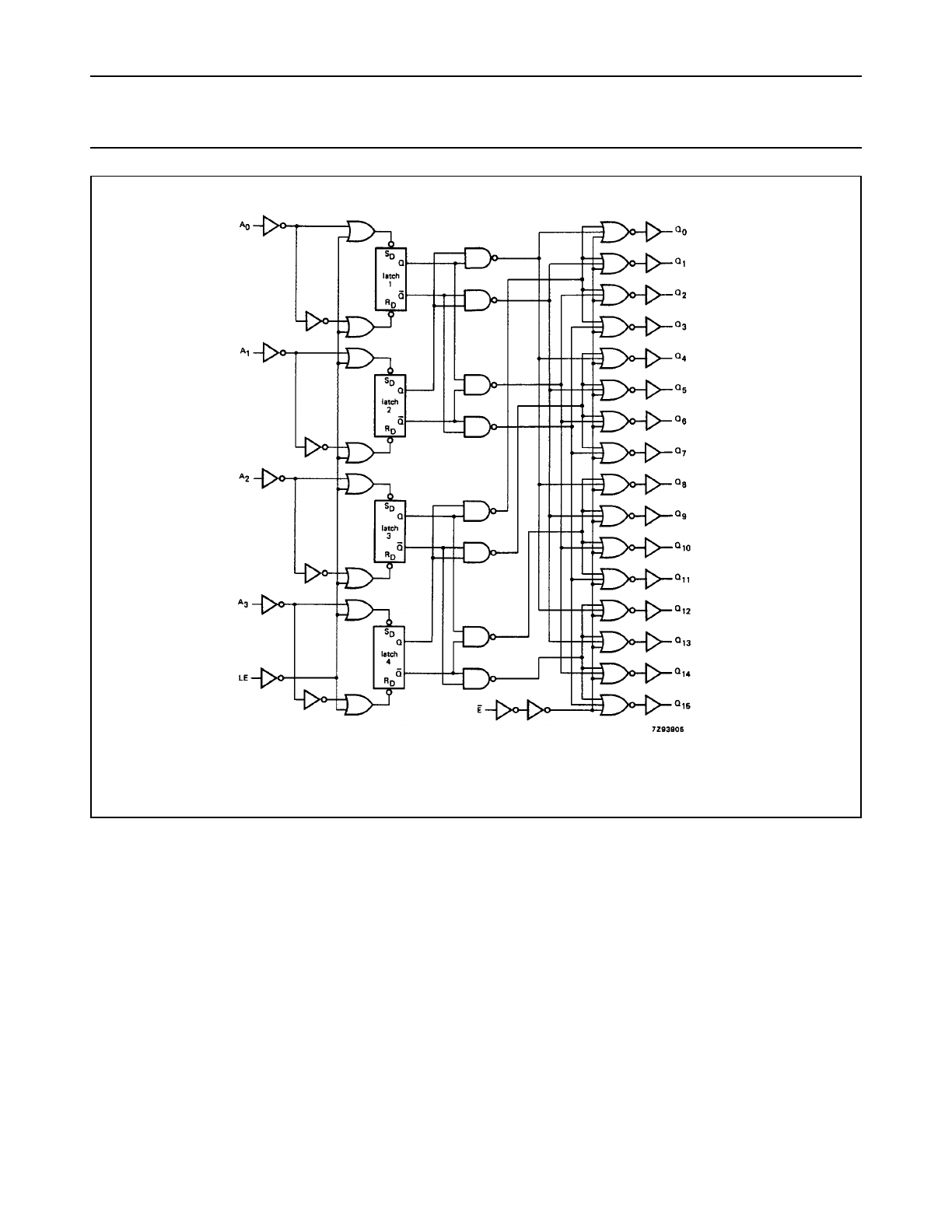

Fig.5 Logic diagram.
