74HC238; 74HCT238
3-to-8 line decoder/demultiplexer
Measurement points are given in Table 8.
V
OL
and V
OH
are typical voltage output levels that occur with the output load.

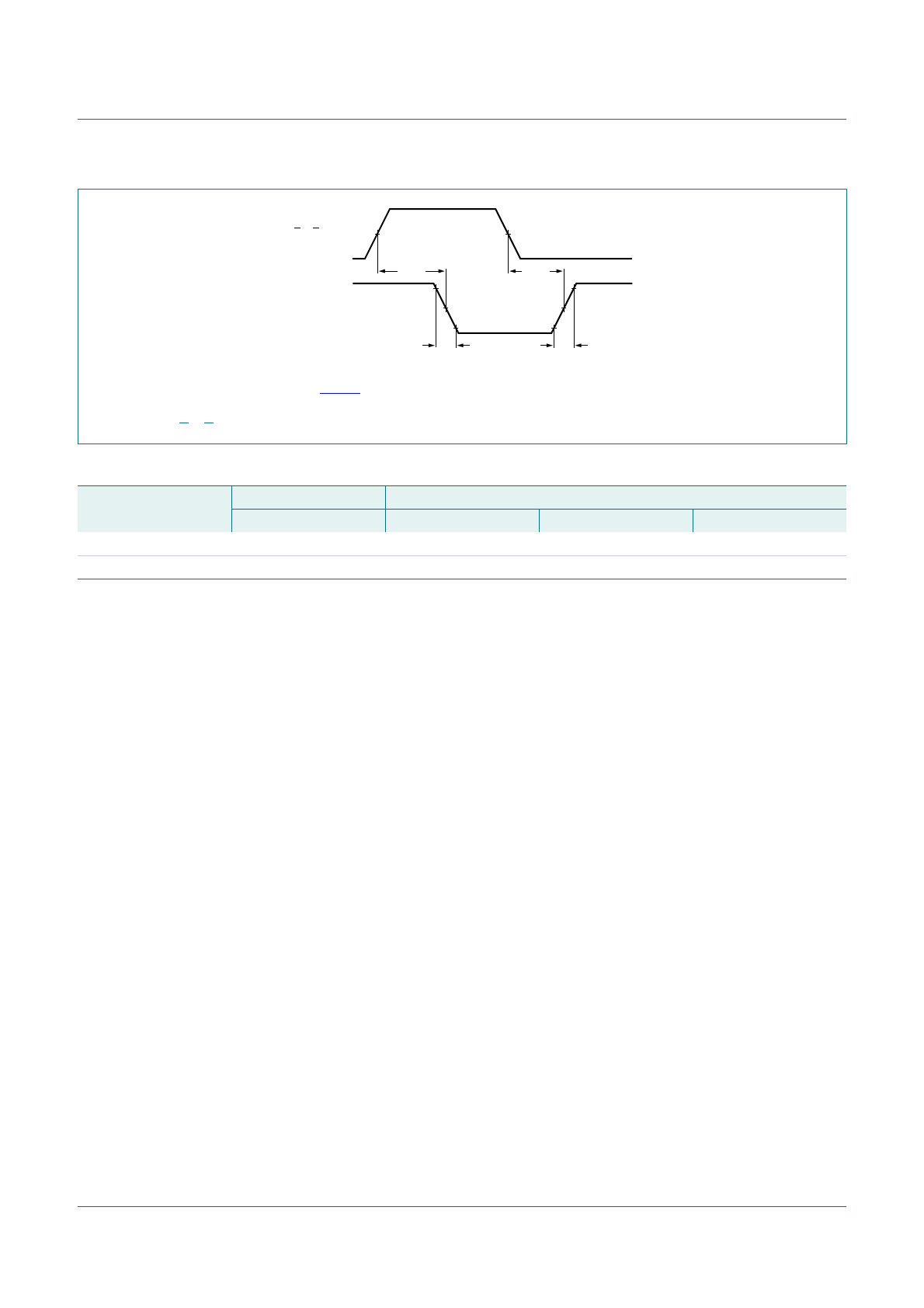

Fig 7. Input (E1, E2) to output (Yn) propagation delays and output transition times
001aag758
E1, E2 input
Yn output
t
THL
t
TLH
V
M
V
M
V
X
V
Y
t
PHL
t
PLH
Table 8. Measurement points
Type Input Output
V
M
V
M
V
X
V
Y
74HC238 0.5V
CC
0.5V
CC
0.1V
CC
0.9V
CC
74HCT238 1.3 V 1.3 V 0.1V
CC
0.9V
CC
