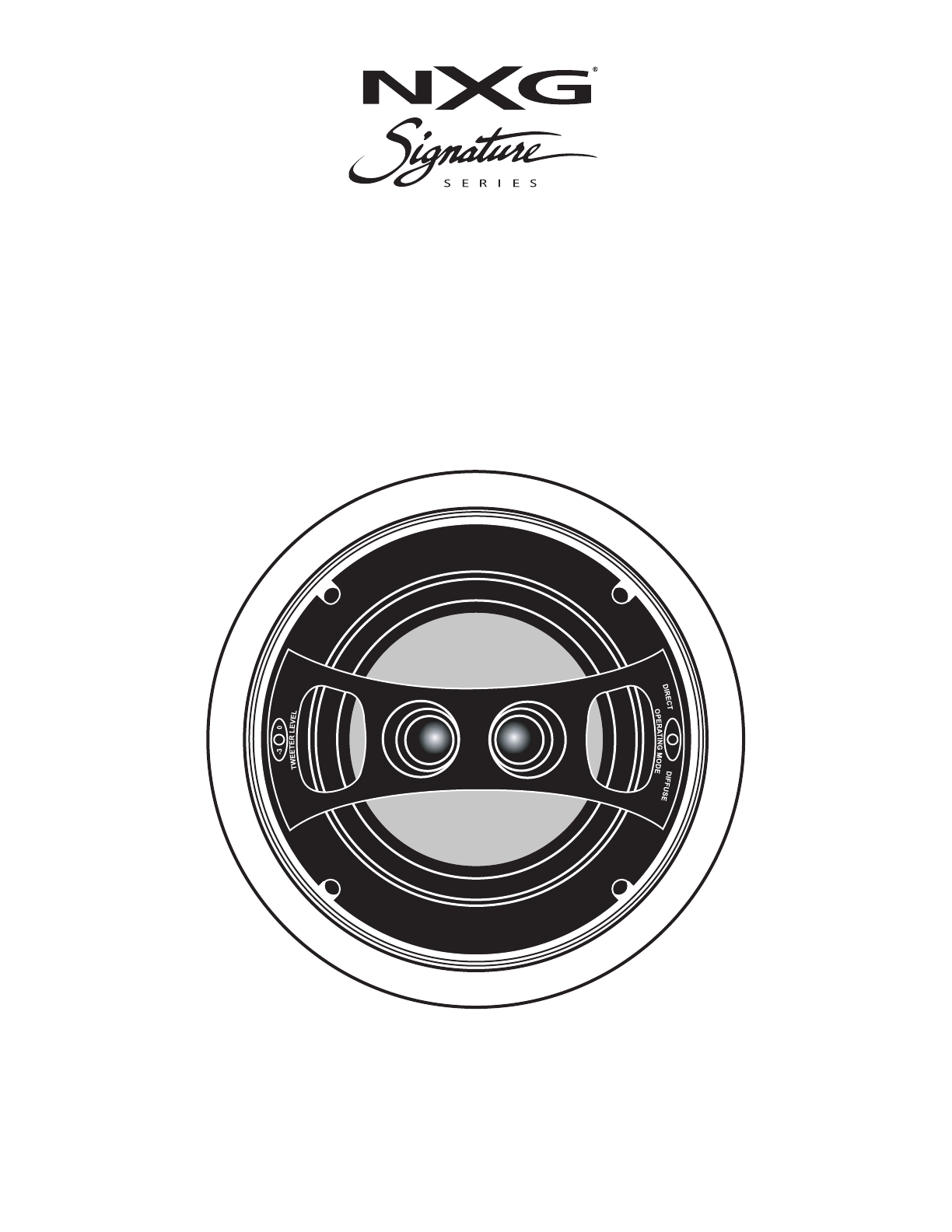

NX-Si8522 8˝ Dual Voice Coil Ceiling-Mount Speaker System OWNER’S MANUAL
Direct/Diffuse Operating Mode Switch Congratulations on choosing NXG Signature Series Loudspeakers. Like all NXG products, great care has been taken in their design. Their combination of advanced engineering and state-of-the-art materials will provide you with years of listening pleasure, while blending smoothly into your home’s decor. Before you get started, it is a good idea to identify all the parts and hardware (See Fig. 1). Black grille adhesive FIG.
Speaker Installation In Existing Construction (Fig. 3) Once you have selected the location for your speakers, you are ready to install them. You will need the following: • Stud Finder • Pencil • Masking Tape • Drill & Drill Bits • Utility Knife or Drywall Saw • Phillips Screwdriver • Wire Cutter/Strippers • Small Level • Speaker Wire NXG recommends the use of a minimum of 16-gauge wire. For wire options consult your retailer or custom audio contractor. 1.
NX-Si8522 Specifications FIG. 4A For single channel operation, set switch to 4 ohm mode 4 ohm /8 ohm switch • Tweeters: Two 1˝ (25 mm) fluid-cooled, laminated teteron dome • Woofer: 8˝ (203 mm) dual voice coil, titian aluminum-anodized graphite-filled injection-molded cone with rubber surround • Crossover: Linkwitz-Riley 12dB per octave, gold input terminals • Three Switches: 1.
