Control keypad
7
7.3.6.7 Information submenu
In the Information submenu
(S6.7)
frequency converter-related hardware and software information
as well as operation-related information, can be found.
Enter the Info menu by pressing the right arrow menu button. The user can now browse through
the information pages with the Browser buttons.
Page Content
6.7.1 Nominal power of the unit (constant torque)
6.7.2 Nominal voltage of the unit
6.7.3 Control board software version
6.7.4 Application interface version of the software
6.7.5 Expander board statuses and program versions
6.7.6 Application-related software information
6.7.7 Debug menu (for advanced users)
Table 7-6. Information pages
Expander board information (S6.7.5)
Information about the basic and option boards connected to the control board can be found in the
Expanders submenu (see Chapter 6.2).
You can check the status of each slot by entering the board submenu with the right arrow menu
button and using the Browser buttons to choose the board whose status you wish to check. Push
the right arrow menu button again to display the status of the board. The keypad will also display
the program version of the respective board when either one of the Browser buttons is pushed.
If no board is connected to the slot the text 'no board' will be shown. If a board is connected to a
slot but the connection is somehow lost the text 'no conn.' is displayed. See Chapter 6.2 and
Figure 6-12 and 6-11 for more information.
For more information on the expander board-related parameters, see Chapter 7.3.7.

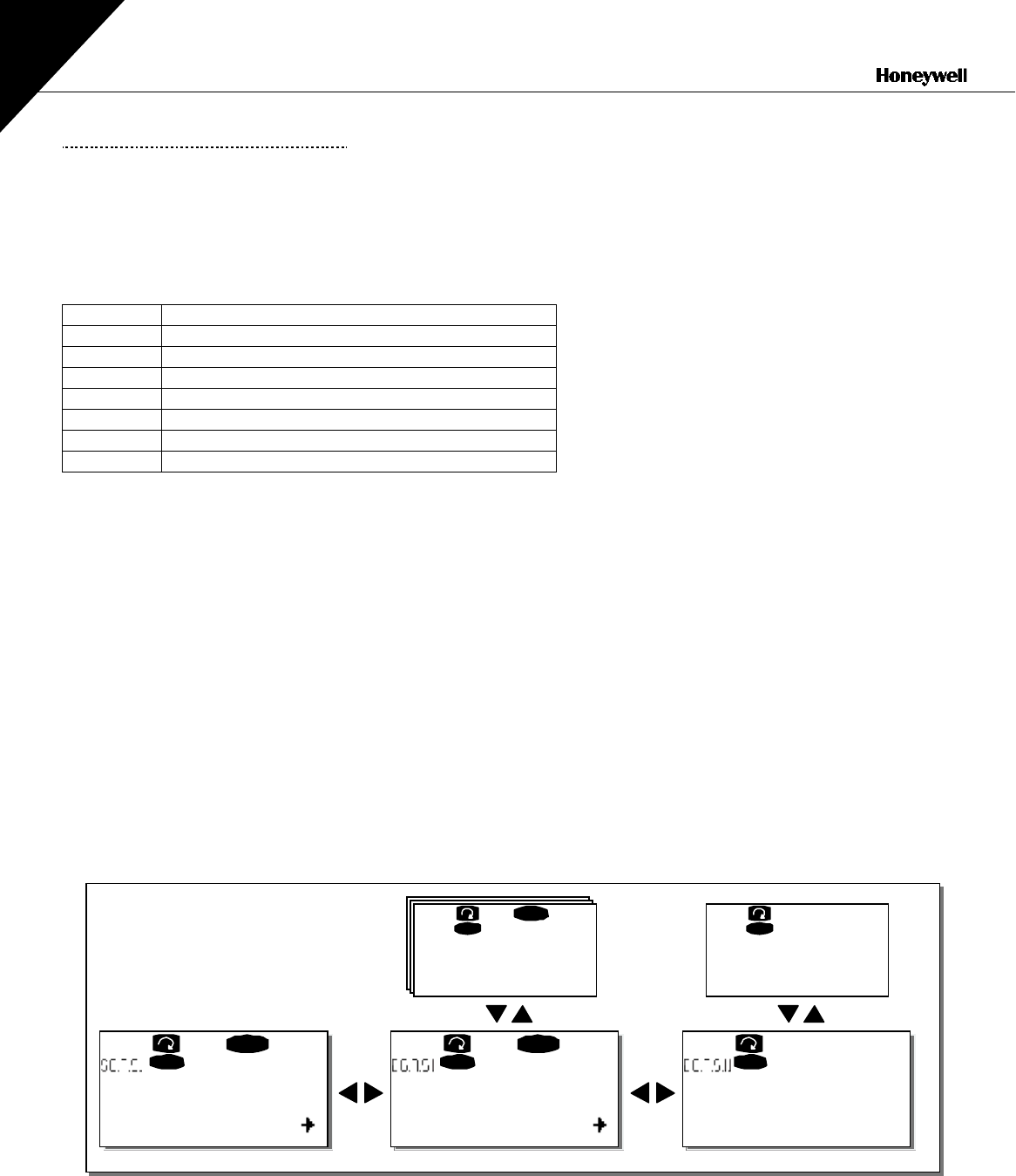

Figure 7-22. Expander board information menus
E1
"
E7
READ Y
I/Oterm
A:NXOPTA1A
I/Oterm
READY
B:NXOPTA2
I/Oterm
READY
E1
"
E2
State
I/Oterm
Run
I/Oterm
E1
"
E2
Program version
10001.0
Expanders
