Installation
5

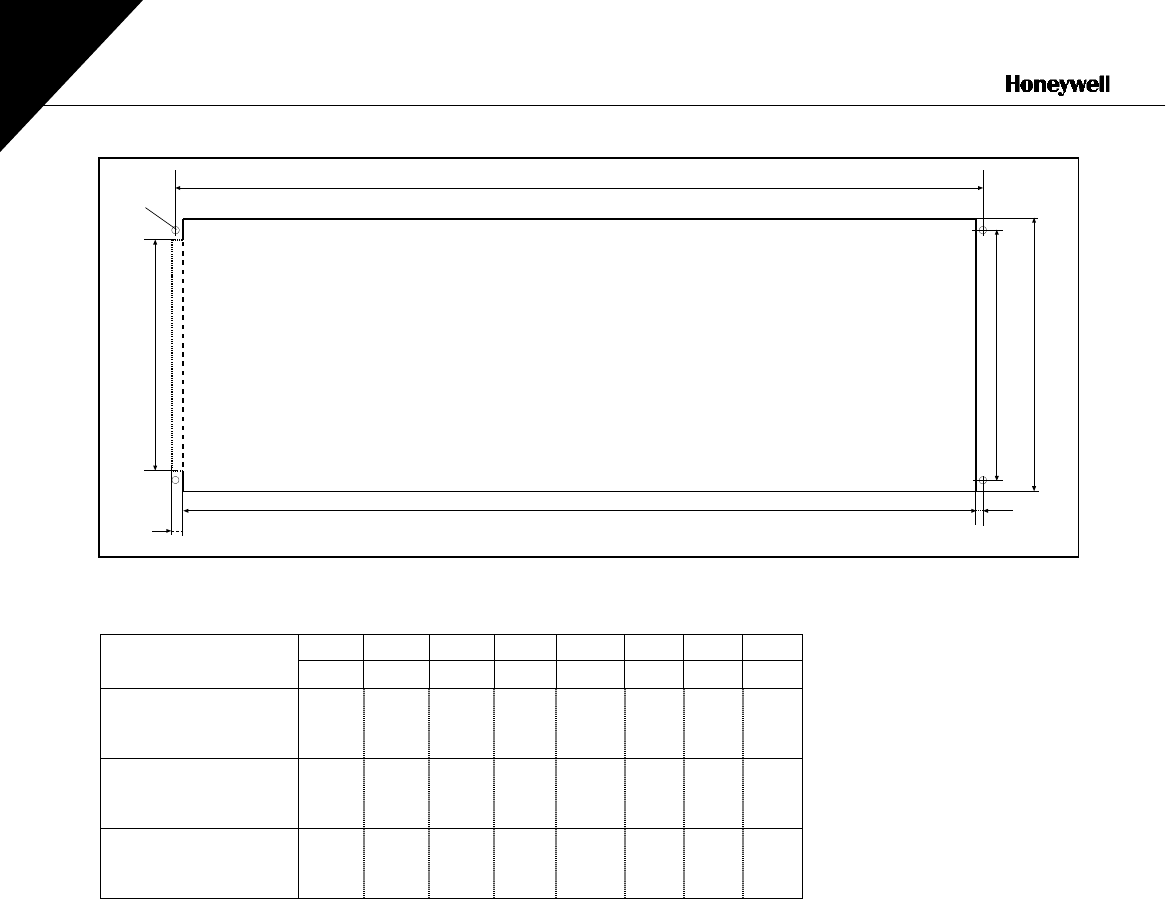

Figure 5-3. The opening needed for the collar installation, FR4 to FR6
Type
W1 W2 W3 H1 H2 H3 H4
∅
0004—0015 NX_2
0003—0012 NX_5
0005—0019 NX_6
123 113 – 315 325 – 5 6.5
0018—0032 NX_2
0016—0031 NX_5
0022—0035 NX_6
135 120 – 410 420 – 5 6.5
0048—0092 NX_2
0038—0061 NX_5
0042—0085 NX_6
185 170 157 539 549 7 5 6.5
Table 5-3. Dimensions for the collar opening, FR4/FR5
fr6aukko.fh8
W2
H2
H1
W1W3
H3
Ø
H4
