- NX series User's Manual POWER SUPPLY

20(86)
Installation
5

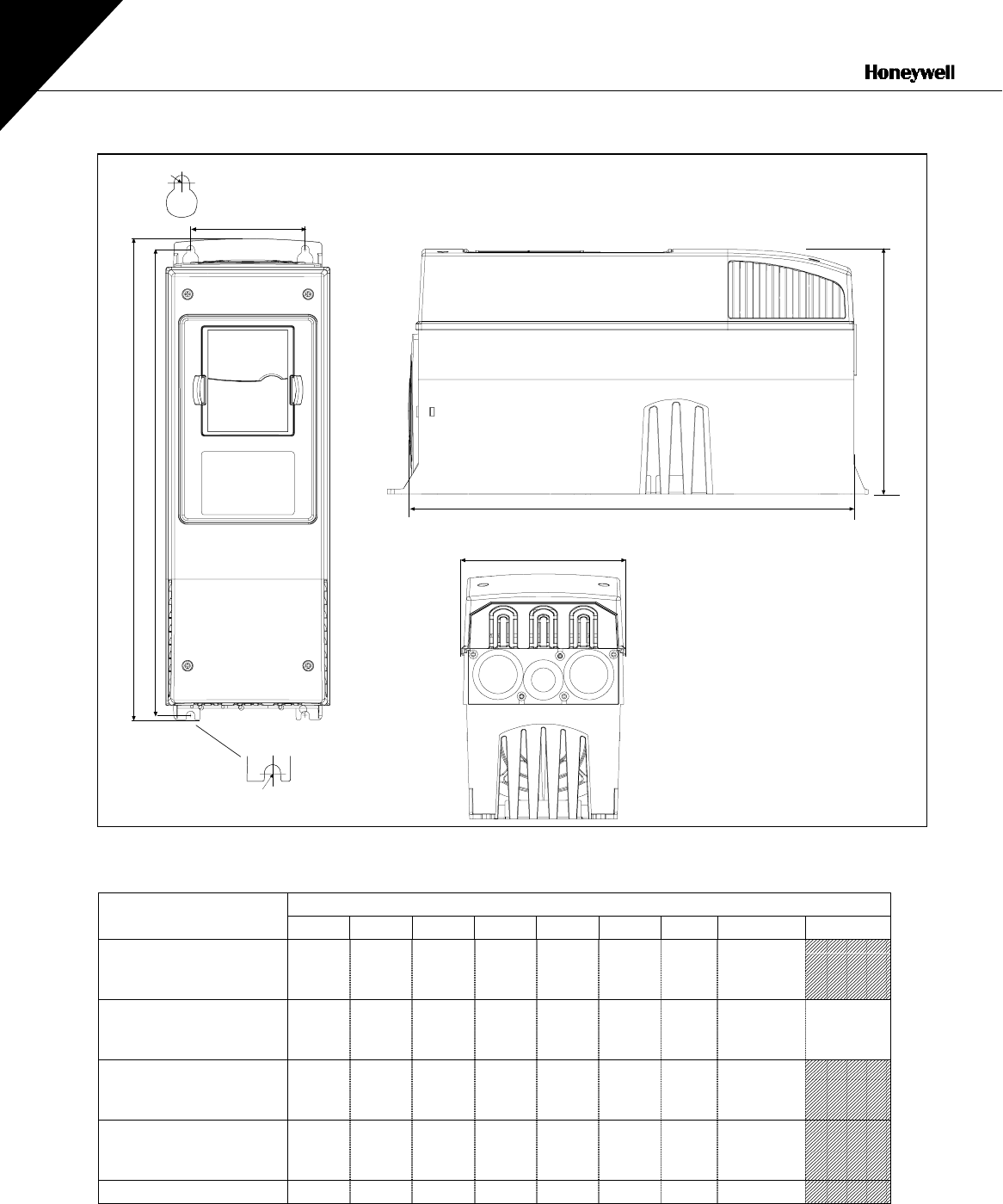

Figure 5-1. NX dimensions, IP21
DimensionsType
W1 W2 H1 H2 H3 D1
∅
E1
∅
E2
∅
*
0004—0015 NX2
0003—0012 NX5
0005—0019 NX6
128 100 327 313 292 190 7 3 x 28,3
0018—0032 NX2
0016—0031 NX5
0022—0035 NX6
144 100 419 406 391 214 7 2 x 37 1 x 28,3
0048—0092 NX2
0038—0061 NX5
0042—0085 NX6
195 148 558 541 519 237 9 3 x 37
0120—0150 NX2
0072—0105 NX5
0085—0122 NX6
237 190 630 614 591 257 9 3 x 47
0140—0205 NX5 285 255 755 732 721 288 9 3 x 59
Table 5-1. Dimensions for different frequency converter types, IP21
W1
W2
H1 H2
Ø
D1
H3
fr5ip21.fh8
Ø
