19" chassis – F
Tex t

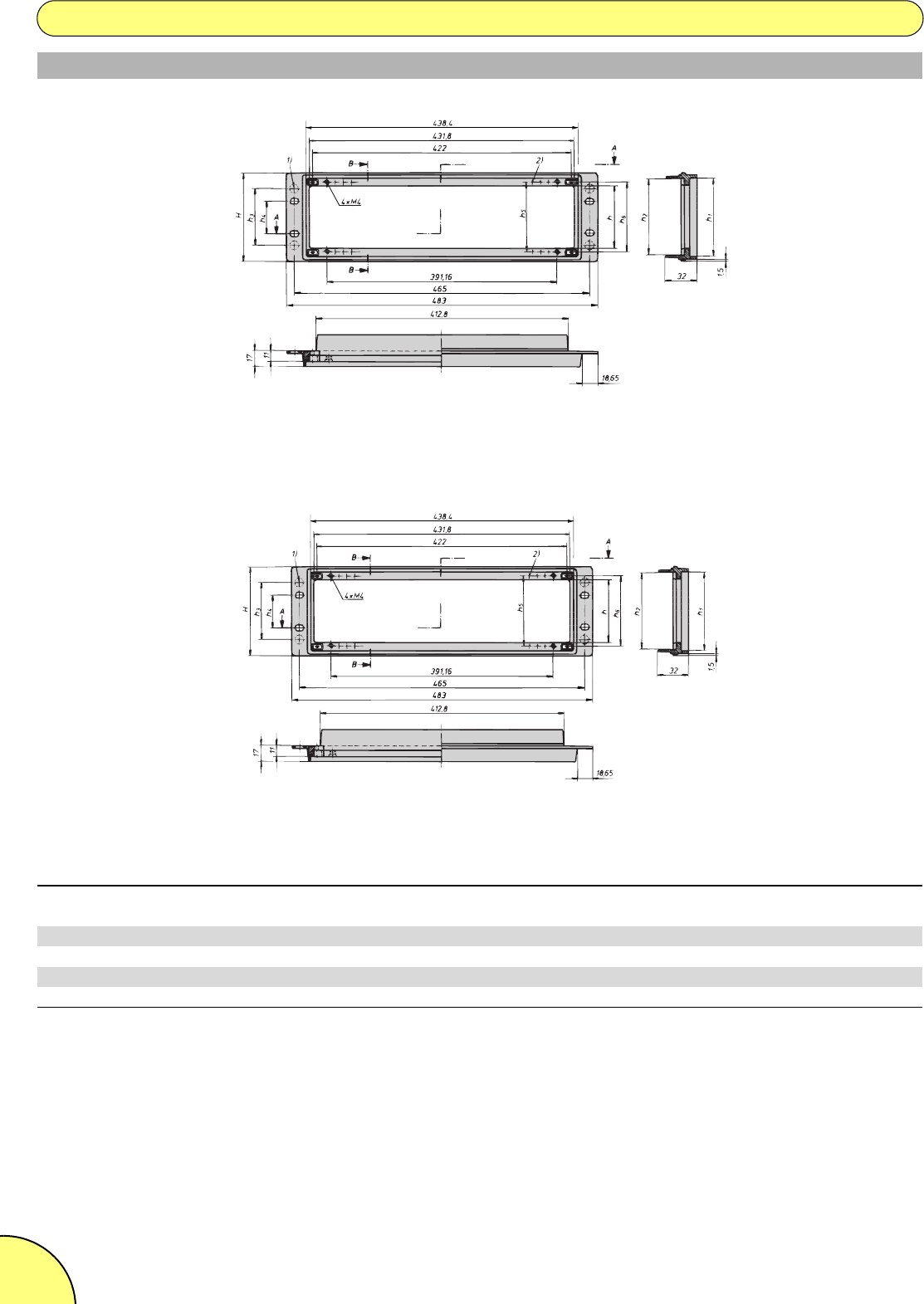

Dimensions
19" front frame
A3-306
Section A-A
There are counterbores on the rear side of the front frame which can be drilled if required:
1)
For handle assembly
2)
For front panel assembly (grid 5.08 mm)
19" rear frame
A3-305
Section A-A
Dimensions table
Height
in U H H
R
hh
1
h
2
h
3
h
4
h
5
h
6
h
7
2 88.0 86.0 57.5 77.3 69.8 25.0 76.2 65.5 68.0 68.4
3 132.5 130.5 102.5 121.8 114.3 90.0 57.1 110.0 112.5 112.8
4 177.0 175.0 146.5 166.3 158.8 134.5 101.6 154.5 157.0 157.3
6 265.9 263.9 235.4 255.2 247.7 233.4 190.4 243.4 245.9 245.9
