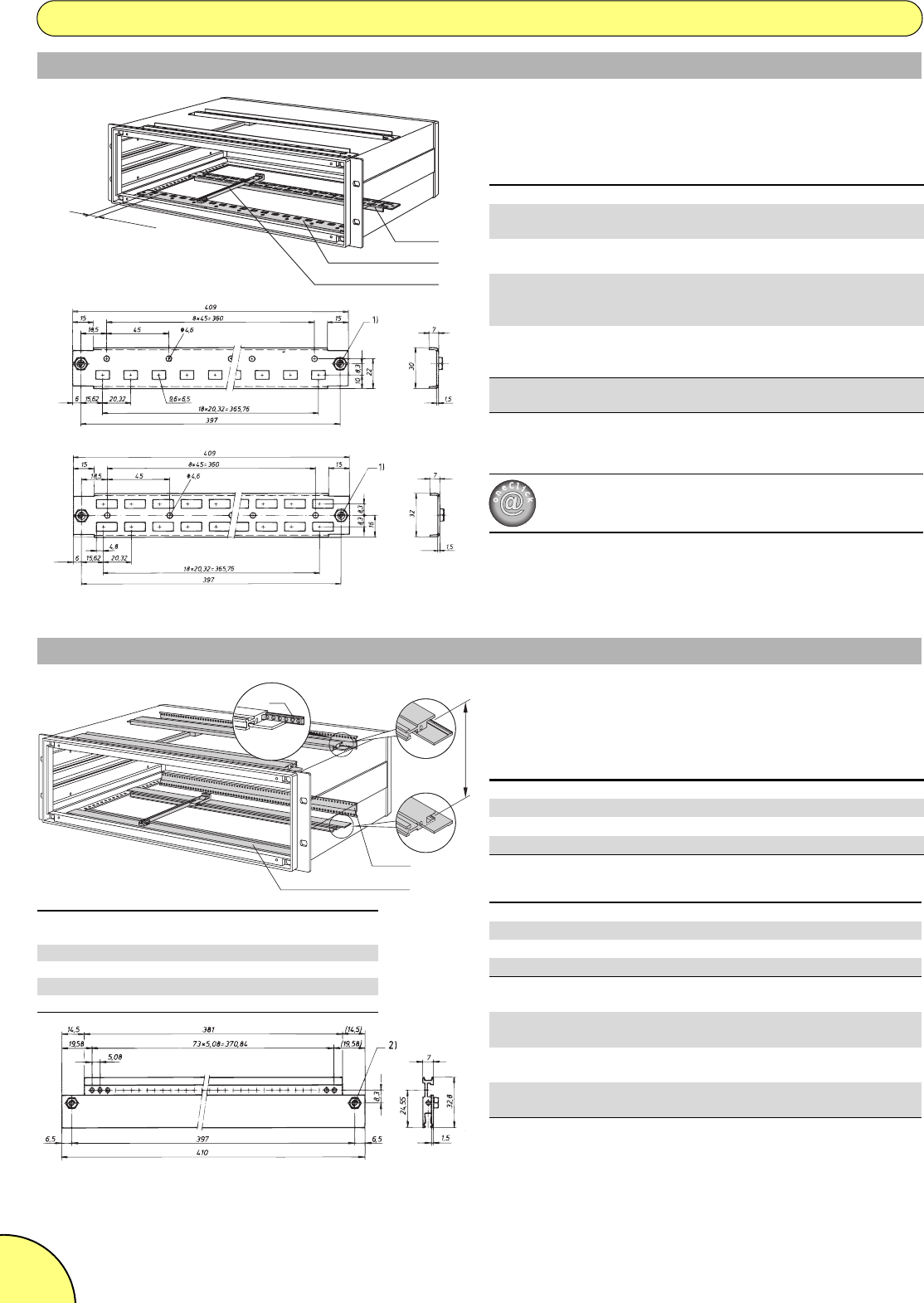

19" chassis – F
IPA30639
a3-308xx
1) Press-in insert M4
F
 Guide rails for PCBs 100 × 160 mm or 100 × 220 mm
can be fitted
Order Information
 More guide rails see page 6.113
IPA30640
A4-587
2) Press-in insert M4
F
 For assembly with PCB
 Usable width 75 HP
Delivery comprises (components)
Order Information
Note
 Threaded insert may not be used to front
Support rails
2
1
3
4TE
Item Description Part no.
1
Front support rail, St, 1.5 mm, blue-passivated,
1 piece
30828-165
2
Rear support rail, St, 1.5 mm, blue-passivated,
1 piece
30828-174
3
Guide rail 160 mm, PBT, UL 94 V-0, with
integrated fixture for connector to EN 60603
(DIN 41612), PU 1 pair
60817-078
3
Guide rail 220 mm, PBT, UL 94 V-0, with
integrated fixture for connector to EN 60603
(DIN 41612), PU 1 pair
60817-079
Screw For horizontal rail assembly, M4 × 8, flat head
Pozidrive, PU 100 pieces
21100-677
For further information www.schroff.biz/oneclick
oneClick search code = Part no.
Horizontal rails
h Bolt-on dimensions of backplane
Umm
2 75.40
3119.80
4 164.30
6252.90
2
1
3
h
Item Qty Description
1 1 Horizontal rail, Al extrusion, anodised
2 1 Z-rail, Al extrusion, anodised
3 1 Threaded insert, St, zinc-plated (blue)
Item Description Qty/PU Part no.
1 Horizontal rail 75 HP 1
30828-128
2 Z-rail 75 HP, for DIN 41 612 1
30814-513
3 Threaded insert 75 HP 1
30819-604
Screw For horizontal rail assembly, M4 × 8, flat head
Pozidrive, PU 100 pieces
21100-677
Cheesehead screw with slot M2.5 × 6, DIN 84,
PU 100 pieces
21100-146
Guide rail 160 mm PBT, UL 94 V-0, with integrated
fixture for connector to EN 60603 (DIN 41612), PU 1 pair
60817-078
Guide rail 220 mm PBT, UL 94 V-0, with integrated
fixture for connector to EN 60603 (DIN 41612), PU 1 pair
60817-079
