Datasheet

6.111
19" chassis – F
Part number in bold face type: ready for despatch within 2 working days
Part number in normal type: ready for despatch within 10 working days
Main Catalogue
E 03/2009
IPA42082
F
Delivery comprises
Order Information
Note
 Delivery of the 19" chassis comprises assembly kit for the
front panel
ipa42083
1) Sleeve pressed-in
F
Delivery comprises
Order Information
Note
 Please order hinge for front panel separately
IPA42086
F
Delivery comprises (kit)
Order Information
Note
 Delivery of the 19" chassis comprises assembly kit for the
front panel

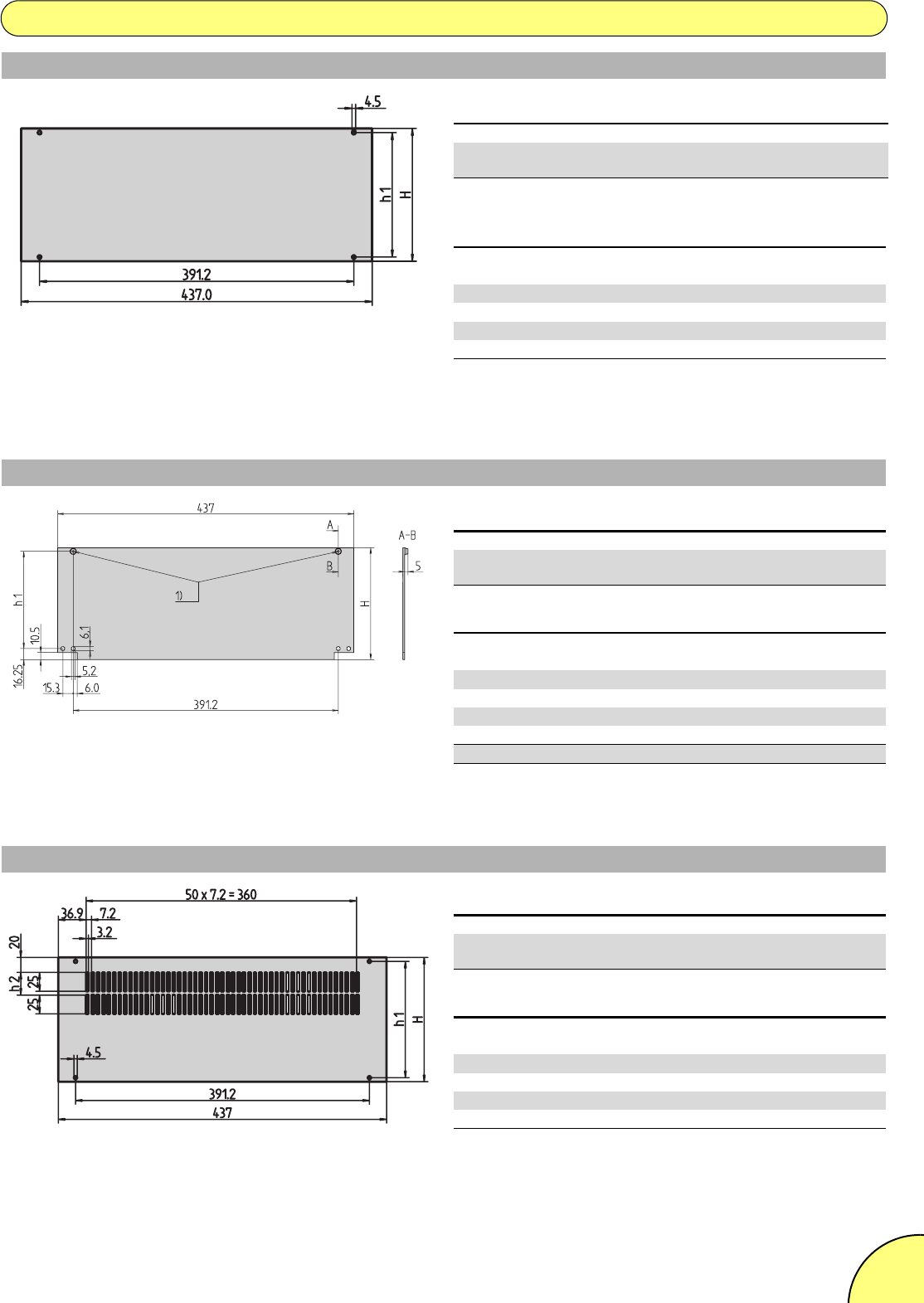

Front panels
Item Qty Description
1 1 Front panel, Al, 2.5 mm, anodised,
cut edges untreated
Height Height H h1 Part no.
Ummmm
2 76.0 65.6
30828-055
3 120.5 110.0
30828-058
4 165.0 154.5
30828-061
6 253.8 243.4
30828-067
Front panels, bottom-hinged
Item Qty Description
1 1 Full-width front panel, hinged, Al, 2.5 mm, anodised,
cut edges plain; steel sleeve pressed-in
Height Height H h1 Part no.
Ummmm
2 76.0 54.5
30828-085
3 120.5 99.0
30828-088
4 165.0 143.5
30828-091
6 253.8 232.3
30828-097
Hinge for front panel PPE, UL 94 V-0, 1 kit
20828-028
Rear panels
Item Qty Description
1 1 Rear panel, including assembly kit, Al 2.5 mm, anodised,
cut edges untreated
Height Height H h1 h2 Part no.
Ummmmmm
2 76.0 65.6 –
30828-070
3 120.5 110.0 –
30828-073
4 165.0 154.5 –
30828-076
6 253.8 243.4 30
30828-082
