 For assembly with 19" components or individually with mounting
plate
 Three rows ventilation slots in base for air inlet
Delivery comprises (Kit, Pos. 1, 2 and 3 assembled)
Order Information
Note
 Extent of delivery includes screws for fixing rear panel and
front panel
19" chassis

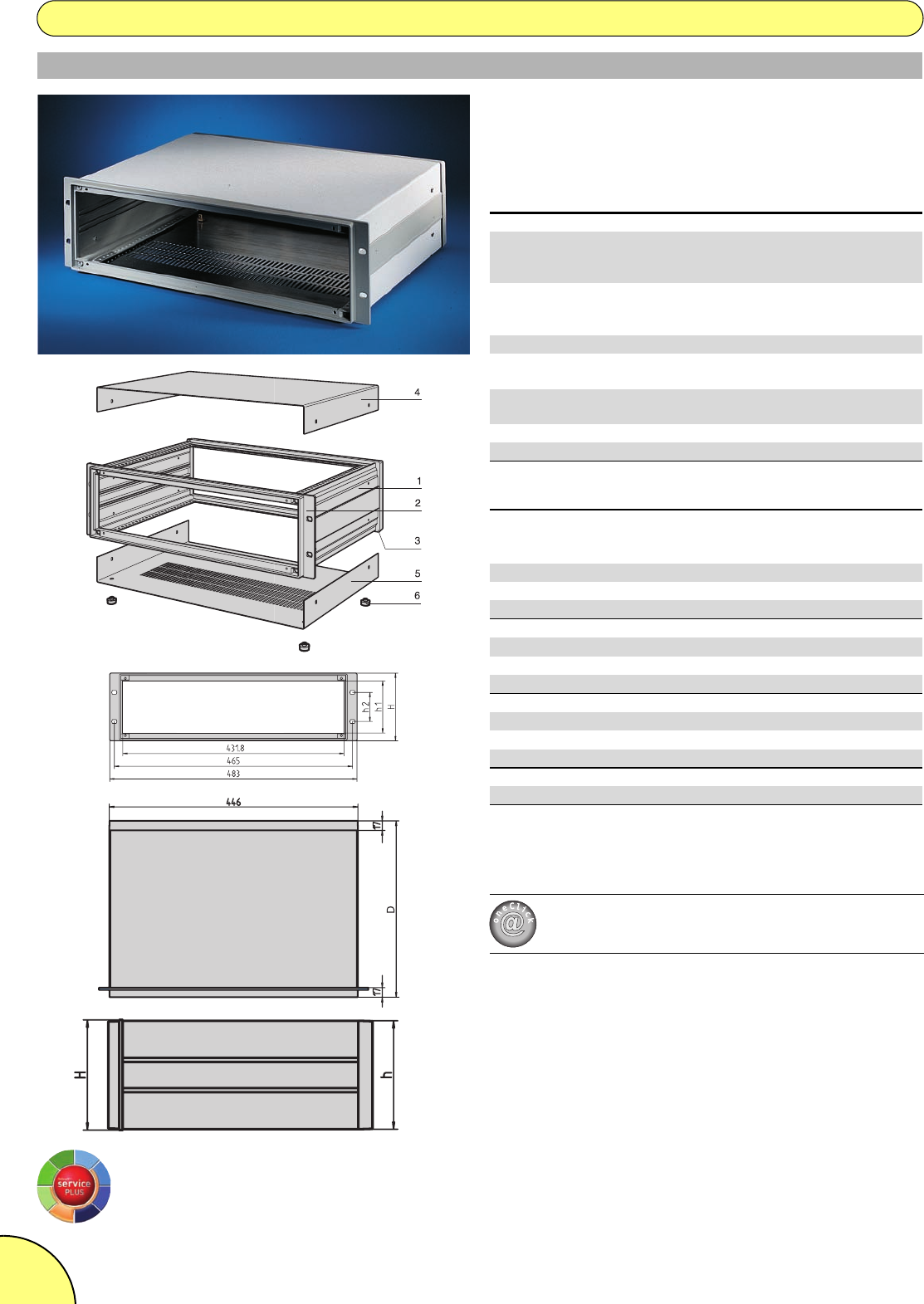

Item Qty Description
1 2 Side panel, Al extrusion, RAL 7030
at 6 U: 2 Al corner profiles
1 divider plate (steel plate)
2 1 Front frame, Al die-cast, RAL 7030, rear side with
counterbores for drill holes to mount handles and
front panels
3 1 Rear frame, Al die-cast, RAL 7030
4 1 Cover plate, St, 1 mm, RAL 7035, plastic-coated,
with GND/earthing connection
5 1 Base plate, St, 1 mm, RAL 7035, plastic-coated,
with GND/earthing connection
6 4 Case foot with anti-slip protection, PC, UL 94 V-0
7 1 Assembly kit
Height
H
Height
H
h h1h2Depth DPart no.
U mmmmmmmmmm
2 88.0 86.0 57.5 76.2 254.5
10828-071
2 88.0 86.0 57.5 76.2 314.5
10828-072
2 88.0 86.0 57.5 76.2 374.5
10828-073
3 132.5 130.5 102.0 57.2 254.5
10828-051
3 132.5 130.5 102.0 57.2 314.5
10828-052
3 132.5 130.5 102.0 57.2 374.5
10828-053
3 132.5 130.5 102.0 57.2 434.5
10828-054
4 177.0 174.5 146.5 101.6 254.5
10828-056
4 177.0 174.5 146.5 101.6 314.5
10828-057
4 177.0 174.5 146.5 101.6 374.5
10828-058
4 177.0 174.5 146.5 101.6 434.5
10828-059
6 265.9 263.5 235.4 190.5 374.5
10828-068
6 265.9 263.5 235.4 190.5 434.5
10828-069
For further information www.schroff.biz/oneclick
oneClick search code = Part no.
