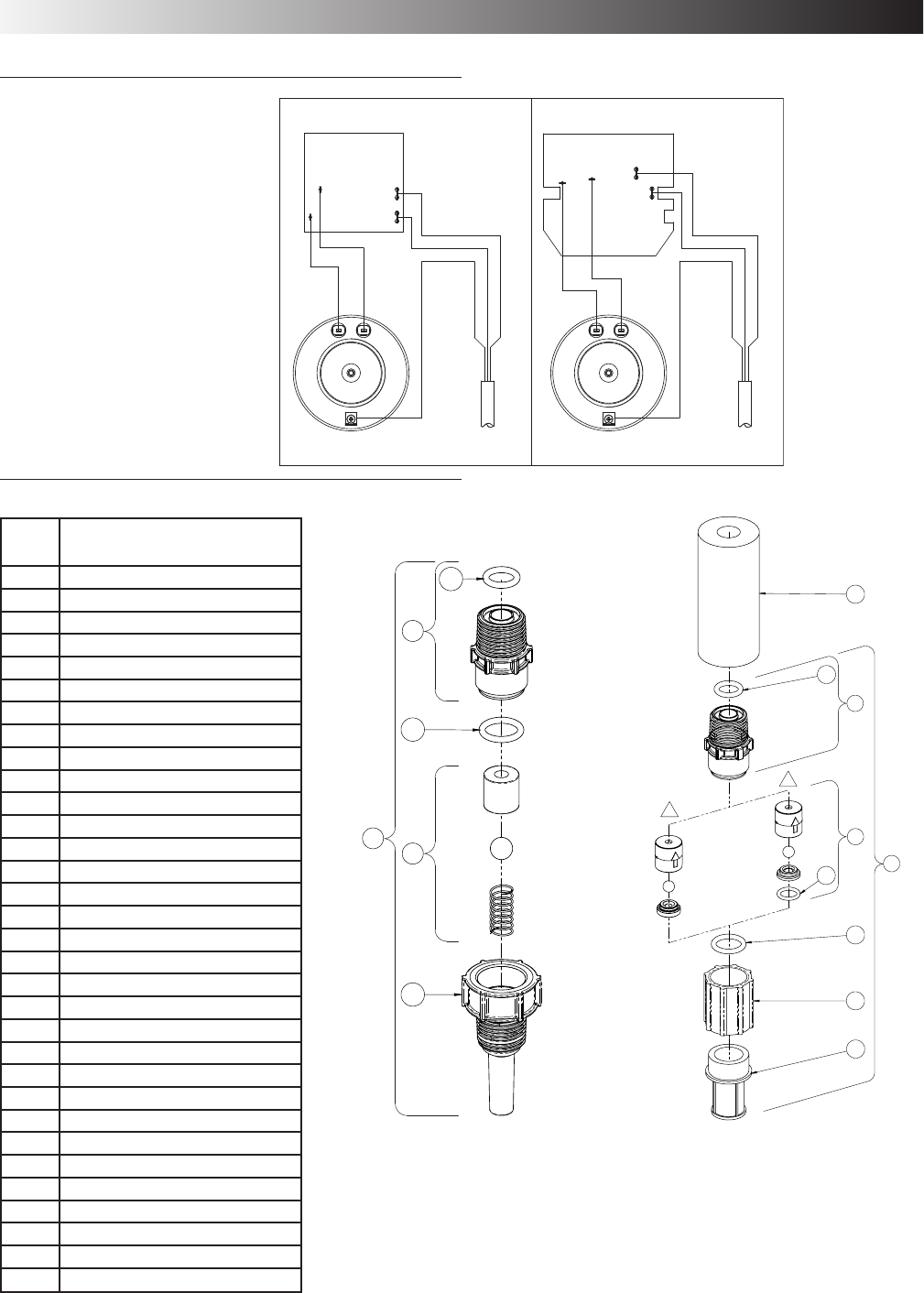

5.9 EPU Wiring Diagram
5.10 Liquid End Parts List
Injection Valve
Bubble
Number
Description
10 Pump Head
40 Tube Connect O-Ring
90 Seat O-Ring
100 Cartridge Valve O-Ring
120 SS FastPrime™ Valve
140 FastPrime™ Valve Gasket
150 FastPrime™ Valve O-Ring
180 Liquid End Cover
190 Liquifram™
230 Injection Check Valve Body
250 Ceramic Weight
260 Foot Valve Coupling Nut
270 Foot Valve Strainer
601 FastPrime™ Discharge Check Valve
602 Suction Check Valve
603 Cartridge Valve
604 FastPrime™ Cartridge Valve
605 FastPrime™ Valve
606 Liquid End Hardware
607 Foot Valve
608 Injection Valve
609 AutoPrime™ Discharge Check Valve
610 AutoPrime™ Discharge Cartridge Valve
611 AutoPrime™ Shuttle Valve
612 AutoPrime™ Shuttle Cartridge Valve
613* Tubing Connection Kit*
614 AutoPrime™ Return Tubing Connection Kit
615 Single Ball Fitting Assembly
616 Double Ball Fitting Assembly
617 Injection Cartridge Valve
618 SS Discharge Check Valve
619 SS Suction Check Valve
A3/A7/A8 PULSER
A0/A1 PULSER
EPU ASSEMBLY
EPU ASSEMBLY
POWER CORDPOWER CORD
BLK OR BRN
WHT OR BLU
GRN OR GRN/YEL
WHT OR BLU
BLK OR BRN
GRN OR GRN/YEL
YEL
YEL
YEL
YEL
P1
P2
P3
P2
P1
P3
P4
P4
615
608
617
40
100
230
607
603
615
40
250
100
270
260
90
A.
B.
Foot Valve
Refer to Section 3.3 for tubing connections.
