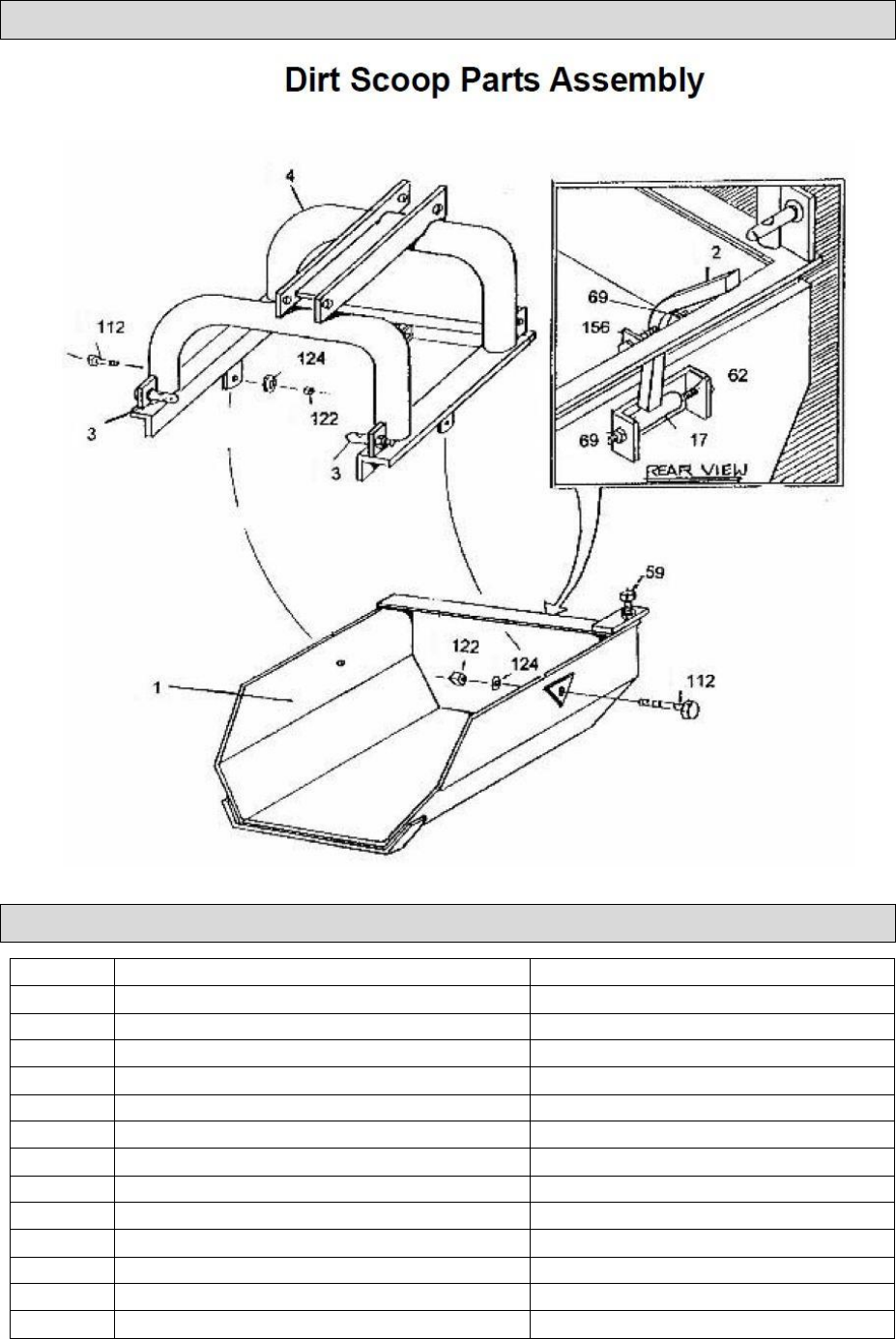

Parts Diagram
Parts List
Item
Description
Quantity
69
1/2" Nut Nylon Insert
2
62
1/2" x 3-1/2" Bolt
2
112
3/4" x 3" Bolt
2
122
3/4" Nut with Nylon Insert Fine
2
124
3/4" Flat Washer
2
3
Lift Pin Cat 1
2
17
Hinge Tube
2
4
Frame
1
1
Scoop 24"
1
59
3/4" x 3-1/2" Bolt
2
156
1/2" x 3-1/2" Bolt
2
112
3/4" x 3" Bolt
2
2
Scoop Latch Bar
1
