Technical Product Manual - DCT1900
Installation Instructions, Modular Cabinet – Cables
Install-DCT1900/R8/mw 26-15
© 2000-2005
26.12 CLU/MCCB Power Cable – TSRNB 101 33
The CLU/MCCB power cable is a 2-wire unshielded cable which is used to supply power from the
MCCB to the CLU/SLU which takes care of the power distribution to the Base Stations.

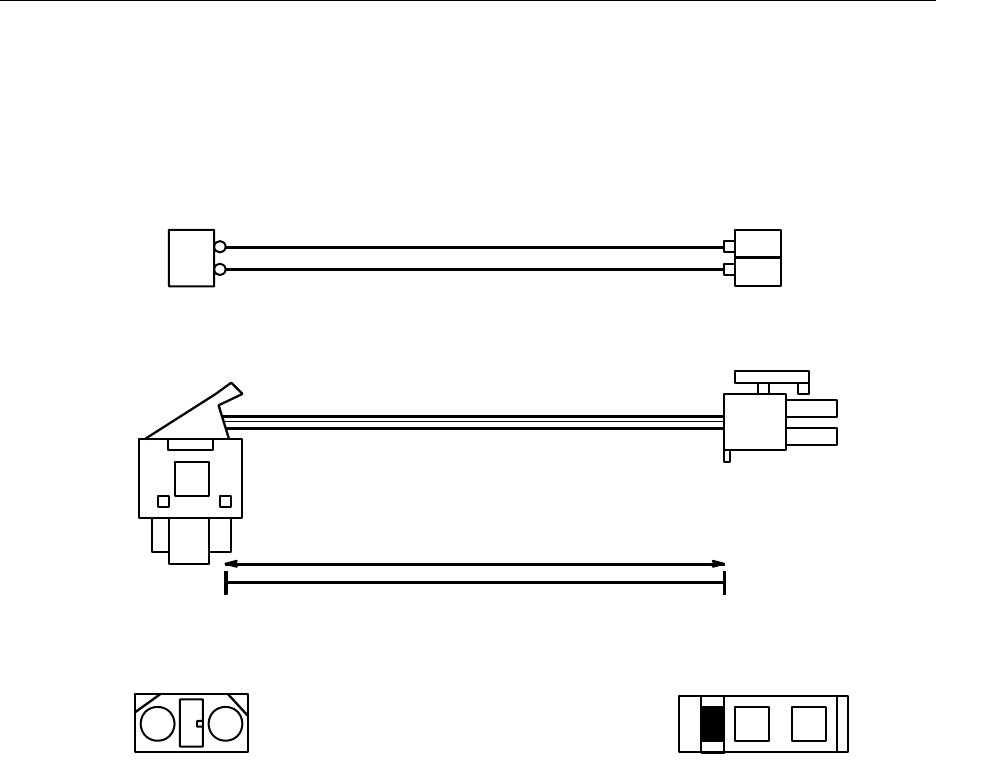

Fig. 26–14 CLU/MCCB Power Cable – TSRNB 101 33
26.13 CLU/MDF Cable Set, Long – NTM/TSRNB 101 46
The CLU/MDF cable set long (see Figures 26–15 and 26–16) consists of two shielded cables
(TSRNB 101 46/1 and TSRNB 101 46/2). The cables are used to connect a CLU/SLU to the MDF.
The shielding of the cables is connected to the cabinet via a clamp which also functions as a strain
relief. The only difference between the two cables is the location on the cable where the clamp is
attached to the shielding. This is respectively 13 in. from the connector for cable TSRNB 101 46/1
and 18 in. for cable TSRNB 101 46/2. The length of the cable is 82 ft.
1
2
(V1)
(V0)
1
2
K2K1
K2
K1
20 in " .4 in
K1 12
12
K2
20 in. +/- .4 in.
