Page 68 of 458 Placing the fourth module on a column
NN43021-310 Standard 02.02 October 2008

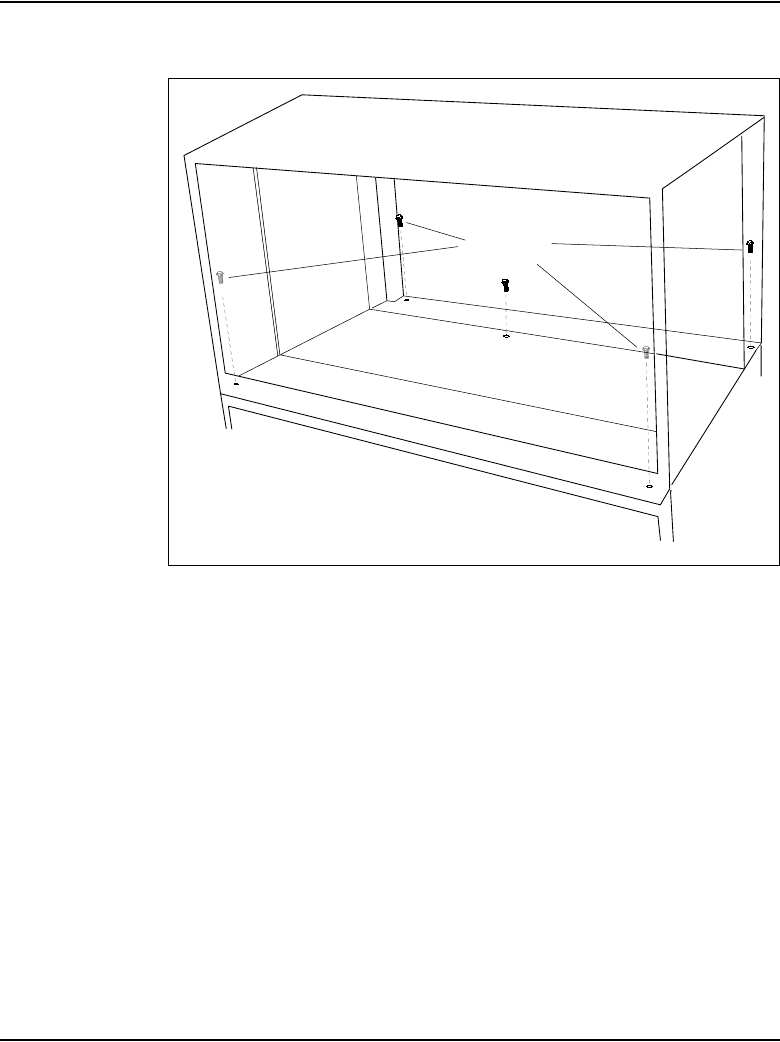

Figure 20
Module mounting bolts
2 Connect the module-to-module power and system monitor cables.
a. Connect the power connectors between the modules (see Figure 21
on page 69).
b. Connect the system monitor cable from connector J2 on the third
module to J1 on the fourth module.
Mounting
bolts
553-3057
