Preparing for installation Page 55 of 458
Communication Server 1000M and Meridian 1 Large System Installation and Commissioning

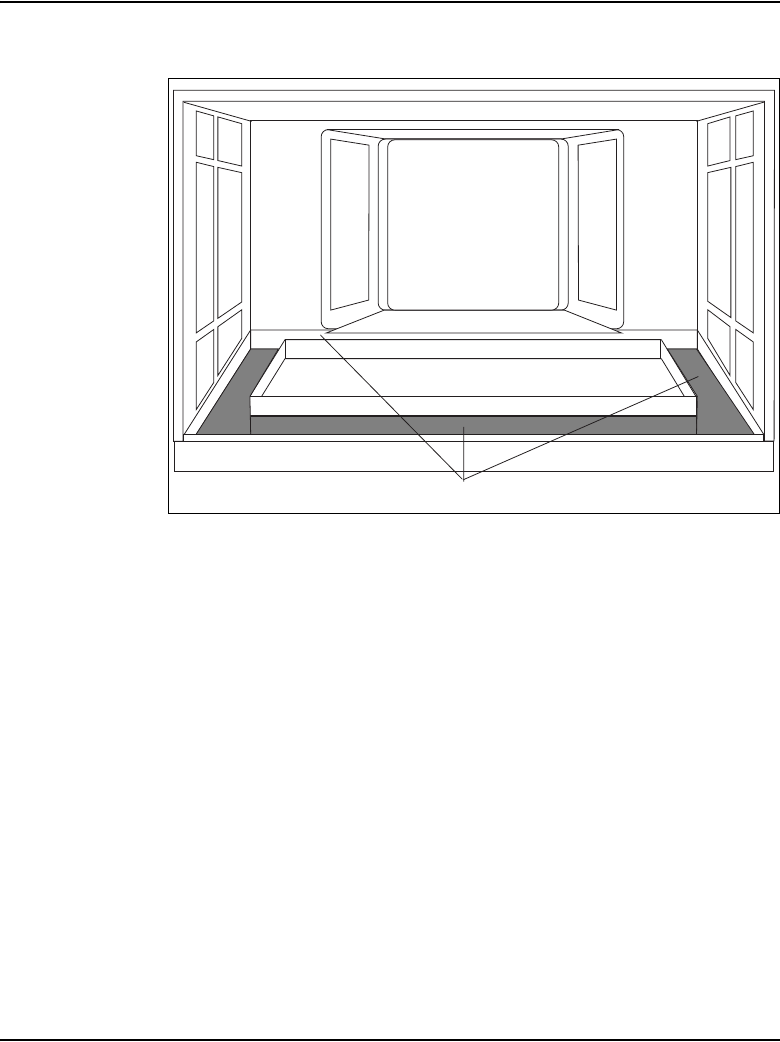

Figure 12
Cable routing troughs – front view of module
A typical routing scenario from the faceplate of a printed circuit pack (PCP)
to one of the I/O panels is as follows:
• The cable comes off the faceplate of a PCP and drops down into the front
horizontal cable trough.
• The cable is routed to the right side of the module in the horizontal cable
trough to the vertical cable trough.
• The cable is routed to the back of the module and into the rear horizontal
cable trough.
• The cable is routed to the left or right I/O panel at the rear of the module.
When connecting two half-group networks together, the cables are routed
vertically through the square holes in the rear horizontal cable trough.
All other internal vertical cable routing from one module to another should be
done only in the right vertical cable trough.
Cabling troughs
553-3117
