Page 398 of 458 Installing a Signaling Server
NN43021-310 Standard 02.02 October 2008

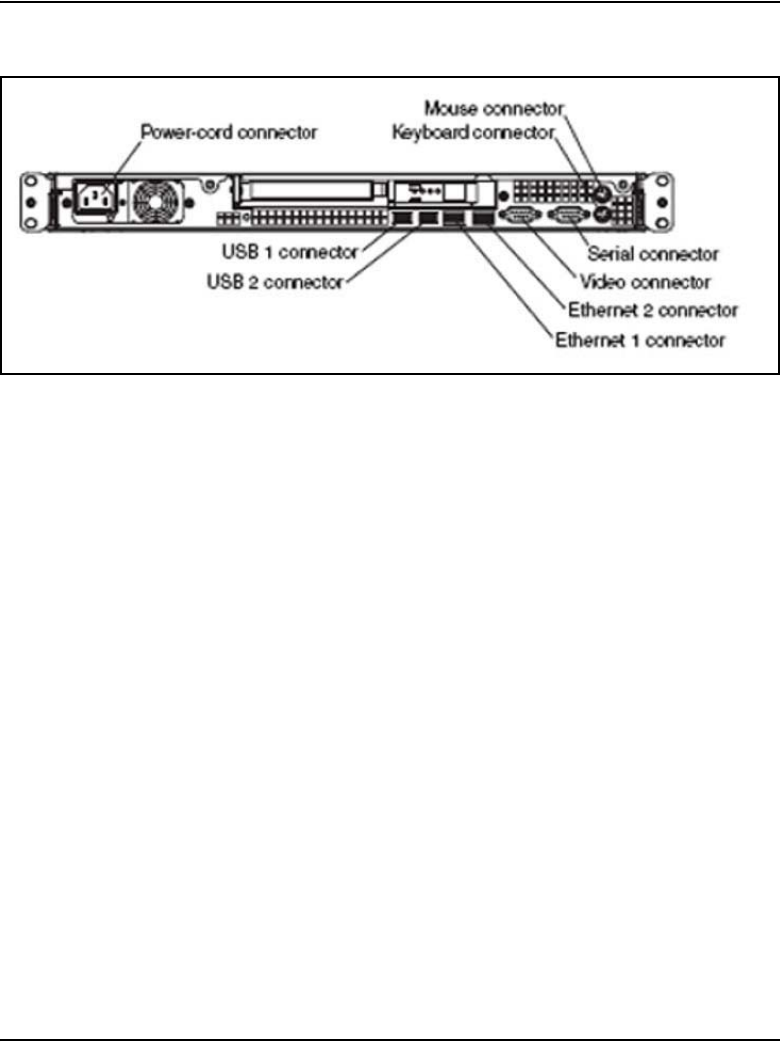

Figure 140
IBM X306m Signaling Server (rear view)
Note: Refer to Figure 140 when performing the following procedure.
Procedure 76
Connecting an IBM X306m Signaling Server
1 Connect the Signaling Server to the TLAN subnet. Insert the RJ-45 CAT5
(or better) cable into Port 1 (TLAN network interface) on the back of the
Signaling Server. Port 1 is the right-most of the two network interfaces.
2 Connect the Signaling Server to the ELAN subnet. Insert the RJ-45 CAT5
(or better) cable into PEthernet 2 connector (ELAN network interface) on
the back of the Signaling Server. Port 2 is the left-most of the two network
interfaces.
3 Connect a DTE–DTE null modem serial cable from the serial port on the
back of the Signaling Server to the serial port on a maintenance terminal.
4 Connect the Signaling Server power cord.
a. Check that the power cord is the type required in the region where
the Signaling Server is used. Do not modify or use the supplied AC
power cord if it is not the correct type.
b. Attach the female end of the power cord to the mating AC power
receptacle on the left side of the Signaling Server’s back panel. Plug
the male end of the AC power cord into the AC power source (wall
outlet).
